HANDLEBAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

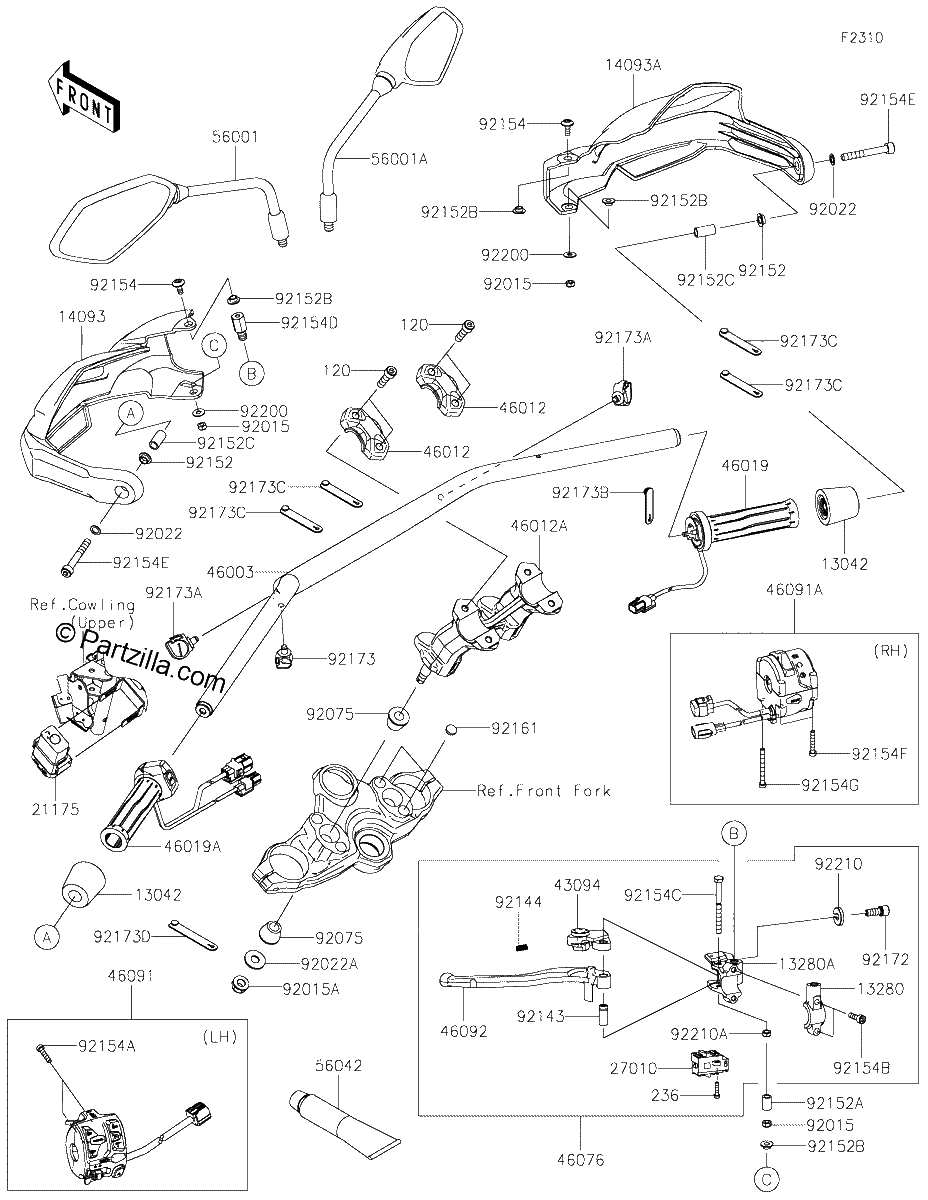

Diagrama de HANDLEBAR

Repuestos

#120
120CC0830
BOLT-SOCKET,8X30
$3.38¢1 691
1
#236
236AB0416
SCREW-PAN-WSP-CROS
$10.66¢5 330
1
#13042
13042-0785
WEIGHT,HANDLE
$57.01¢28 503
1
#13280
13280-0772
HOLDER,CLUTCH LEVER
$31.00¢15 502
1
#13280A
13280-0926
HOLDER
$56.69¢28 347
1
#14093
14093-0751
COVER,LH
$127.89¢63 946
1
#14093A
14093-0752
COVER,RH
$127.89¢63 946
1
#21175
21175-1329
CONTROL UNIT-ELECTRONIC,GH
$146.52¢73 261
1
#27010
27010-0916
SWITCH,CLUTCH
$73.40¢36 702
1
#43094
43094-0008
ADJUSTER
$40.31¢20 154
1
#46003
46003-0717-18R
HANDLE,F.S.BLACK
$294.02¢147 010
1
#46012A
46012-0354-18R
HOLDER-HANDLE,LWR,F.S.BLACK
$161.34¢80 673
1
#46012
46012-0353-18R
HOLDER-HANDLE,UPP,F.S.BLACK
$115.38¢57 690
1
#46019
46019-0081
GRIP-ASSY,HEATER,RH
$172.82¢86 411
1
#46019A
46019-0090
GRIP-ASSY,HEATER,LH
$172.82¢86 411
1
#46076
46076-0164
LEVER-ASSY-GRIP,CLUTCH
$129.95¢64 975
1
#46091
46091-0532
HOUSING Assembly CONTROL,Left Hand
$514.37¢257 186
1
#46091A
46091-0581
HOUSING-ASSY-CONTROL,RH
$288.34¢144 170
1
#46092
46092-0575
LEVER-GRIP,CLUTCH
$19.02¢9 510
1
#56001
56001-0297
MIRROR-ASSY,LH
$87.20¢43 602
1
#56001A
56001-0298
MIRROR-ASSY,RH
$87.20¢43 602
1
#56042
56042-0001
ADHESIVE,TB1530C
$111.61¢55 804
1
#92015
92015-1191
NUT,LOCK,6MM
No Disponible
1
#92015A
92015-1717
NUT,LOCK,FLANGED,10MM
$9.04¢4 520
1
#92022A
92022-1396
WASHER,10.5X26X2.3,BLACK
$2.79¢1 397
1
#92022
92022-1028
WASHER,8.5X13X1
$3.59¢1 794
1
#92075
92075-039
DAMPER,HANDLE HOLDER
$4.28¢2 139
1
#92143
92143-1379
COLLAR
$8.68¢4 341
1
#92144
92144-1467
SPRING
$5.85¢2 927
1
#92152
92152-2512
COLLAR
$11.15¢5 577
1
#92152A
92152-2513
COLLAR,6.5X10.5X16.5
$14.93¢7 464
1
#92152B
92152-2514
COLLAR
$10.42¢5 210
1
#92152C
92152-2515
COLLAR,8.2X11.8X23.5
$12.14¢6 072
1
#92154E
92154-3826
BOLT,SOCKET,8X60
$4.85¢2 427
1
#92154
92154-0907
BOLT,SOCKET,6X14
$1.72¢862
1
#92154A
92154-2596
BOLT,SOCKET,5X25
$3.78¢1 892
1
#92154B
92154-2644
BOLT,SOCKET,6X20
$3.58¢1 788
1
#92154C
92154-3816
BOLT,CLUTCH LEVER PIVOT
$15.95¢7 975
1
#92154D
92154-3825
BOLT
$32.40¢16 198
1
#92154F
92154-3921
BOLT,5X30
$3.78¢1 892
1
#92154G
92154-3922
BOLT,5X50
$3.78¢1 892
1
#92161
92161-1723
DAMPER,13X3
$1.81¢903
1
#92172
92172-1138
SCREW
$6.21¢3 105
1
#92173
92173-0736
CLAMP,12MM DIA.
$4.61¢2 306
1
#92173A
92173-0861
CLAMP
$2.53¢1 265
1
#92173B
92173-1229
CLAMP,RUBBER PLATE
$3.83¢1 915
1
#92173C
92173-1526
CLAMP
$3.83¢1 915
1
#92173D
92173-2194
CLAMP
$1.68¢839
1
#92200
92200-1762
WASHER,6.2X15X1.2
$1.14¢569
1
#92210
92210-1519
NUT
$10.79¢5 394
1
#92210A
92210-1544
NUT,LOCK,6MM
$3.25¢1 627
1
