CYLINDER HEAD ASSY

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

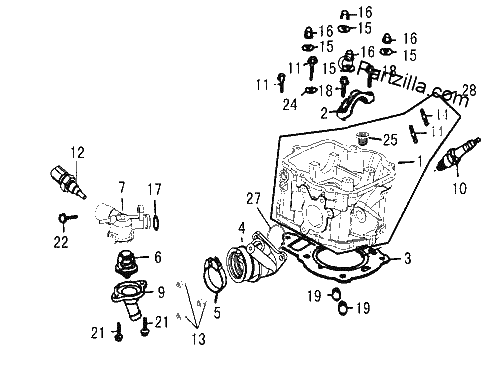

Diagrama de CYLINDER HEAD ASSY

Repuestos

#1
011F-022100
CYLINDER HEAD COMP.
$149.49¢74 744
1
#2
0010-022014
COVER, CAMSHAFT BEARING
$5.74¢2 869
1
#3
0110-022010
GASKET, CYLINDER HEAD
$19.54¢9 769
1
#4
011F-022900-20000
INJECTOR SEAT COMP
No Disponible
1
#4
011F-022900-1000
INJECTOR SEAT COMP.
$34.49¢17 244
1
#5
0010-022200
CLAMP SET
$4.59¢2 294
1
#6
0010-022810
THERMOSTAT COMP.
$26.44¢13 219
1
#7
0060-0228B0-1080
UPPER HOUSING, THERMOSTAT
$11.49¢5 744
1
#9
0110-022601-0080
LOWER CASE, THERMOSTAT
$8.04¢4 019
1
#10
0110-022400
SPARK PLUG DPR7EA 9
$28.74¢14 369
1
#11
0010-021017-0010
BOLT M6X25
$1.25¢627
1
#12
0060-022810
SENSOR, WATER TEMP.
No Disponible
1
#14
0110-022007-0010
STUD, EXHAUST PIPE
$1.14¢569
1
#15
0010-022012
WASHER M8
$1.25¢627
1
#16
0010-022013-0020
NUT M8
$3.44¢1 719
1
#17
0010-022804
O RING, 14.8x1.9
$1.14¢569
1
#18
0010-022020
BOLT M6X22
$1.14¢569
1
#19
0010-021005
DOWEL PIN f 10x14
$1.25¢627
1
#21
0010-090005-0010
BOLT M6X16
$1.25¢627
1
#22
0010-023008-00001
BOLT
$1.25¢627
1
#25
0010-022303-0020
SCREW PLUG M12X1
$1.14¢569
1
#27
011F-022009
CLAMP SPRING
$3.44¢1 719
1
#28
011F-0221A0
CYLINDER HEAD COMP.
$137.99¢68 994
1
