FRONT SUSPENSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

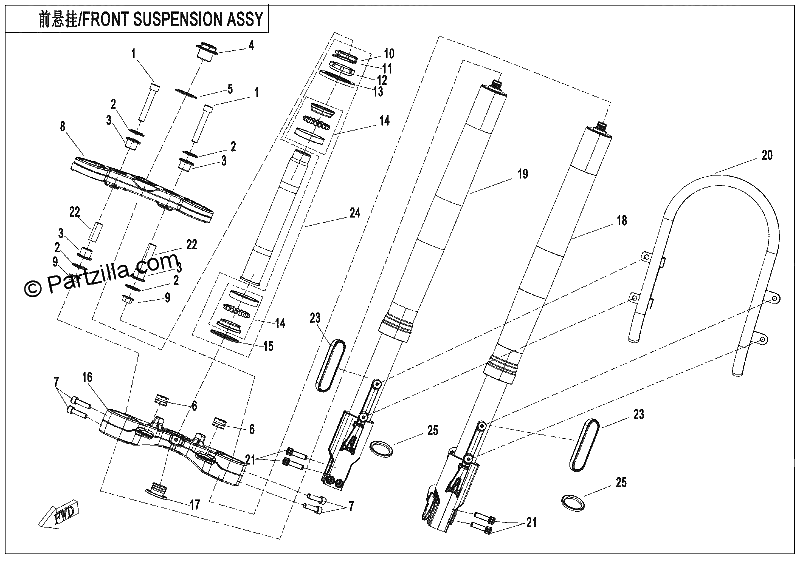

Diagrama de FRONT SUSPENSION

Repuestos

#1
30102-060016870
SCREW M6X16
$1.36¢681
1
#2
6KJ0-050005
WASHER
$1.36¢681
1
#3
6KJ0-050004
DAMPER RUBBER,UPPER HOLDER
$1.36¢681
1
#4
6NTA-050003
LOCK SCREW, UPPER TRIPLE CLAMP
$14.99¢7 494
1
#5
A000-050004
WASHER
$1.36¢681
1
#6
5020-031001
RUBBER SLEEVE, FRONT LICENSE BRACKET
$1.36¢681
1
#7
30102-080025870
INNER HEX SCREW M8X25
$3.74¢1 869
1
#8
6GUV-050003-6002
UPPER TRIPLE CLAMP
$199.99¢99 994
1
#8
6GUV-050003-6001
UPPER TRIPLE CLAMP
No Disponible
1
#9
30204-102810
NUT M10X1.25
$1.36¢681
1
#10
A000-050006
LOCK NUT
$6.24¢3 119
1
#11
A000-050008
WASHER
$1.36¢681
1
#12
A000-050007
LOCK NUT
$6.24¢3 119
1
#13
A000-050009
DUST SEAL, UPPER
$1.36¢681
1
#14
A000-050100-10000
STEERING BEARING ASSEMBLY
$37.49¢18 744
1
#15
A000-050400
ANTI DUST CAP, LOWER RETAINING RING
$3.74¢1 869
1
#16
6GU-050030-6000
LOWER TRIPLE CLAMP ASSEMBLY
$337.49¢168 744
1
#17
A000-050011
RUBBER PLUG 2
$2.49¢1 244
1
#18
6GUV-050100-7000
FRONT LEFT HAND SHOCK ABSORBER
$1249.99¢624 994
1
#19
6GUV-050200-7000
FRONT RIGHT HAND SHOCK ABSORBER
$1249.99¢624 994
1
#21
30102-080040870
SCREW M8X40
$2.49¢1 244
1
#22
6KJ0-050006-00001
LINER, UPPER CONNECTING PLATE
$2.49¢1 244
1
#23
6KJV-160920-8001-M1
FRONT SIDE REFLECTOR
$4.99¢2 494
1
#24
A000-0501B0
STEERING BEARING ASSEMBLY
$87.49¢43 744
1
#25
6GU-050200-6001-24
OIL SEAL
$24.99¢12 494
1
#26
6GU-050200-6001-25
DUST CAP
$9.99¢4 994
1
