BRAKE ASSY ABS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

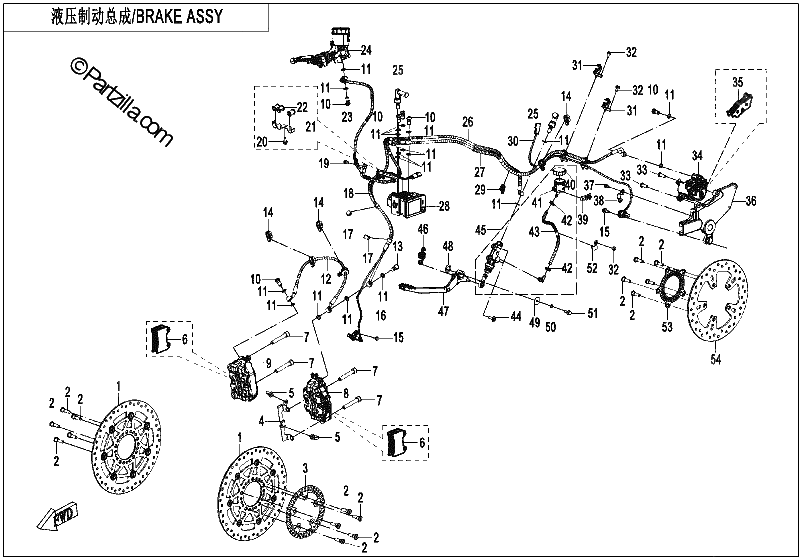

Diagrama de BRAKE ASSY ABS

Repuestos

#1
A000-080010
FRONT BRAKE DISC
$187.49¢93 744
1
#2
A000-080003-10000
BOLT, BRAKE DISC
$2.49¢1 244
1
#3
6NTG-080008-10000
FRONT GEAR RING
$22.49¢11 244
1
#4
6GU-080007-6000
WIRE CLIP, RPM SENSOR CABLE
$4.99¢2 494
1
#5
801F-100101
TIE BAND
$1.36¢681
1
#6
A000-080011
FRONT BRAKE PAD
$199.99¢99 994
1
#7
30102-102060810
SCREW M10X60X1.25
$2.49¢1 244
1
#8
6GUV-081200-7000-M1
FRONT RIGHT HAND BRAKE CALIPER ASSEMBLY
$1249.99¢624 994
1
#9
6GUV-081100-7000-M1
FRONT LEFT HAND BRAKE CALIPER ASSEMBLY
$1249.99¢624 994
1
#10
6GU-081000-6000-23
BANJO BOLT2
$17.49¢8 744
1
#11
A000-080102-2000
WASHER
$2.49¢1 244
1
#12
6GUV-081800-7000
FRONT BRAKE LOWER FLUID HOSE
$99.99¢49 994
1
#13
A000-080103-2000
BANJO BOLT 2
$9.99¢4 994
1
#14
A000-050015
WIRE CLIP, FRONT BRAKE FLUID HOSE
$1.36¢681
1
#15
30006-060016870
BOLT M6X16
$1.36¢681
1
#16
6GU-081800-6002-M1
RPM SENSOR, FRONT WHEEL
$99.99¢49 994
1
#17
6KJ0-080003-00001
CLIP, BRAKE HOSE
$2.49¢1 244
1
#18
6GUV-081700-7000
FRONT BRAKE FLUID INLET HOSE
$137.49¢68 744
1
#19
30102-060012810
SCREW M6X12
$1.36¢681
1
#20
30006-060012870
BOLT M6X12
$0.75¢375
1
#21
6GU-080004-6000
WIRE CLIP 2, FRONT BRAKE FLUID HOSE
$3.74¢1 869
1
#22
6KM-080003-8100
RUBBER OIL HOSE CLIP 1
$2.49¢1 244
1
#23
6GUV-081300-7000
FRONT BRAKE FLUID OUTLET HOSE
$162.49¢81 244
1
#24
6GUV-080110-7000-M1
MASTER CYLINDER, FRONT BRAKE
$1124.99¢562 494
1
#25
6GU-080010-6003
HYDRAULIC INDUCTION SWITCH
No Disponible
1
#26
6GUV-081600-7000
REAR BRAKE FLUID INLET HOSE
$137.49¢68 744
1
#27
6GUV-081900-7000
REAR BRAKE FLUID OUTLET HOSE
$149.99¢74 994
1
#28
6GUV-081500-7000
MAB EXECUTION UNIT
No Disponible
1
#29
6GU-080005-6000-M1
STRAP, WIRE CLIP
$2.49¢1 244
1
#30
6GU-081700-6002-M1
RPM SENSOR, REAR WHEEL
$104.99¢52 494
1
#31
6GU-080009-6000
WIRE CLIP, BRAKE FLUID HOSE
$3.74¢1 869
1
#32
30006-050012870
BOLT
$1.36¢681
1
#33
C90709062000
FIXED BOLT, BRAKE DISC
No Disponible
1
#34
6GUV-080210-7000-M1
REAR BRAKE CALIPER ASSEMBLY
$874.99¢437 494
1
#35
6GUV-080211-7000
REAR BRAKE PAD
$114.99¢57 494
1
#36
6GUV-090003-7000
BRACKET, REAR CALIPER
$99.99¢49 994
1
#37
6KM-040082-8000
SCREW KIT M5
$2.49¢1 244
1
#38
6GU-080008-6000
WIRE CLIP
$3.74¢1 869
1
#39
6GUV-090004-7000
BRACKET, RESERVOIR
$87.49¢43 744
1
#40
6L30-081110
BRAKE LEVER
$287.49¢143 744
1
#44
30102-060020810
SCREW M6X20
$1.36¢681
1
#45
6GUV-081400-7000
MASTER CYLINDER ASSEMBLY, FOOT BRAKE
$587.49¢293 744
1
#46
6NTG-080005
RETURN SPRING
$3.74¢1 869
1
#47
6GUV-081401-7000
REAR BRAKE PEDAL
$99.99¢49 994
1
#48
A000-080006-10000
WASHER 1
$2.49¢1 244
1
#49
A000-080007-10000
WASHER 2
$2.49¢1 244
1
#50
30303-060112
WASHER
$1.36¢681
1
#51
30006-060016810
BOLT M6X16
$1.36¢681
1
#52
6GU-080006-6000
WIRE CLIP, REAR BRAKE MASTER CYLINDER
$3.74¢1 869
1
#53
6GU-090002-6001
REAR GEAR RING
$14.99¢7 494
1
#54
6GU-090001-6000-M1
REAR BRAKE DISC
$87.49¢43 744
1
