TRANSMISSION ASSY

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

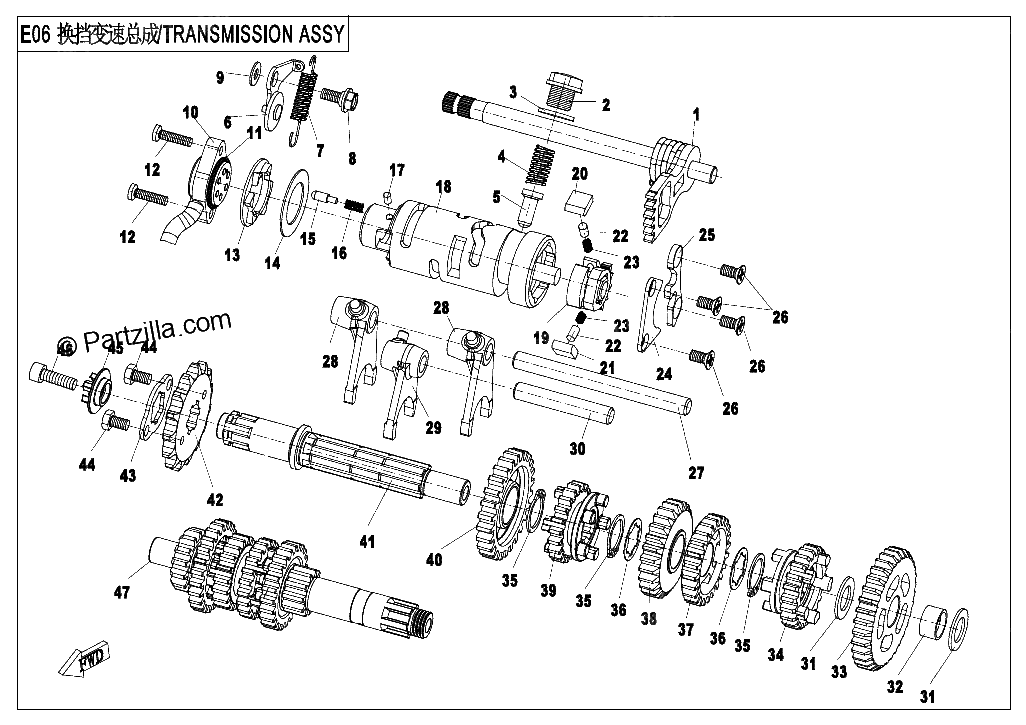

Diagrama de TRANSMISSION ASSY

Repuestos

#1
0A80-063000-00002
GEARSHIFT Assembly
$21.24¢10 619
1
#2
0180-021008-00001
BOLT
$3.74¢1 869
1
#3
0180-011006
GASKET 14
$2.49¢1 244
1
#4
0A70-060012
SPRING, NEUTRAL
$1.24¢619
1
#5
0A70-060013
STOPPER, NEUTRAL
$3.74¢1 869
1
#6
0A70-065100
STOPPER, CAM
$6.24¢3 119
1
#7
0A70-065003
GEARSHIFT LOCATED SPRIING
$1.24¢619
1
#9
0A70-065002
WASHER 6
$1.36¢681
1
#10
0A8V-066000-1001
GEAR POSITION SENSOR
$24.99¢12 494
1
#11
0A70-060014
O RING
$1.36¢681
1
#12
30116-050020410
SCREW COMP
$1.36¢681
1
#13
0A70-064002
LOCATED PLATE, CAM
$3.74¢1 869
1
#14
0A70-064001
WASHER
$1.36¢681
1
#15
0A70-064004
CONTACTOR, GEAR SWITCH
$1.36¢681
1
#16
0A70-064003
SPRING
$1.36¢681
1
#17
30901-0400600
PIN
$1.36¢681
1
#18
0A80-064200-00001
SHIFT DRUM
$37.49¢18 744
1
#19
0A70-064100
DRIVEN GEAR
$9.99¢4 994
1
#20
0A70-064005
RIGHT HAND PAWL
$3.74¢1 869
1
#21
0A70-064008
LEFT HAND PAWL
$1.36¢681
1
#22
0A70-064006
PIN, GEARSHIFT
$2.49¢1 244
1
#23
0A70-064007
SPRING
$1.36¢681
1
#24
0A70-060006
PAWL PLATE, GEARSHIFT
$4.99¢2 494
1
#25
0A70-060005
CAM GUIDE
$6.24¢3 119
1
#26
30107-060012410
SCREW M6X12
$2.49¢1 244
1
#27
0A70-060003-00001
FORK SHAFT
$3.74¢1 869
1
#28
0A70-060004
SHIFT FORK
$7.49¢3 744
1
#29
0A70-060002
FORK, MIDDLE
$7.49¢3 744
1
#30
0A70-060001-00001
FORK SHAFT
$4.99¢2 494
1
#31
0A80-062009
WASHER
$1.36¢681
1
#32
0A80-062008
BUSHING
$12.49¢6 244
1
#33
0A80-062001
1 GEAR, COUNTERSHAFT
$16.24¢8 119
1
#34
0A80-062005
5 GEAR, COUNTERSHAFT
$18.74¢9 369
1
#35
0A80-061008
CIRCLIP
$1.36¢681
1
#36
0A80-062007
WASHER
$1.24¢619
1
#37
0A80-062004
4 GEAR, COUNTERSHAFT
$18.74¢9 369
1
#38
0A80-062003
3 GEAR, COUNTERSHAFT
$14.99¢7 494
1
#39
0A80-062006
6 GEAR, COUNTERSHAFT
$18.74¢9 369
1
#40
0A80-062020
2 GEAR, COUNTERSHAFT
$18.74¢9 369
1
#41
0KIA-062071
COUNTERSHAFT
$87.49¢43 744
1
#42
0A80-060001
DRIVE SPROCKET
$8.74¢4 369
1
#43
0A80-060002
GUARD, SPROKET
$2.49¢1 244
1
#44
30004-060010850
BOLT M6X10
$1.36¢681
1
#45
0KIA-060007
SPEED SENSOR DISC
$24.99¢12 494
1
#46
0110-090009-00002
INNER HEX SCREW
$1.36¢681
1
#47
0A80-061000-00002
MAIN SHAFT
$124.99¢62 494
1
