ELECTRIC SYSTEM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

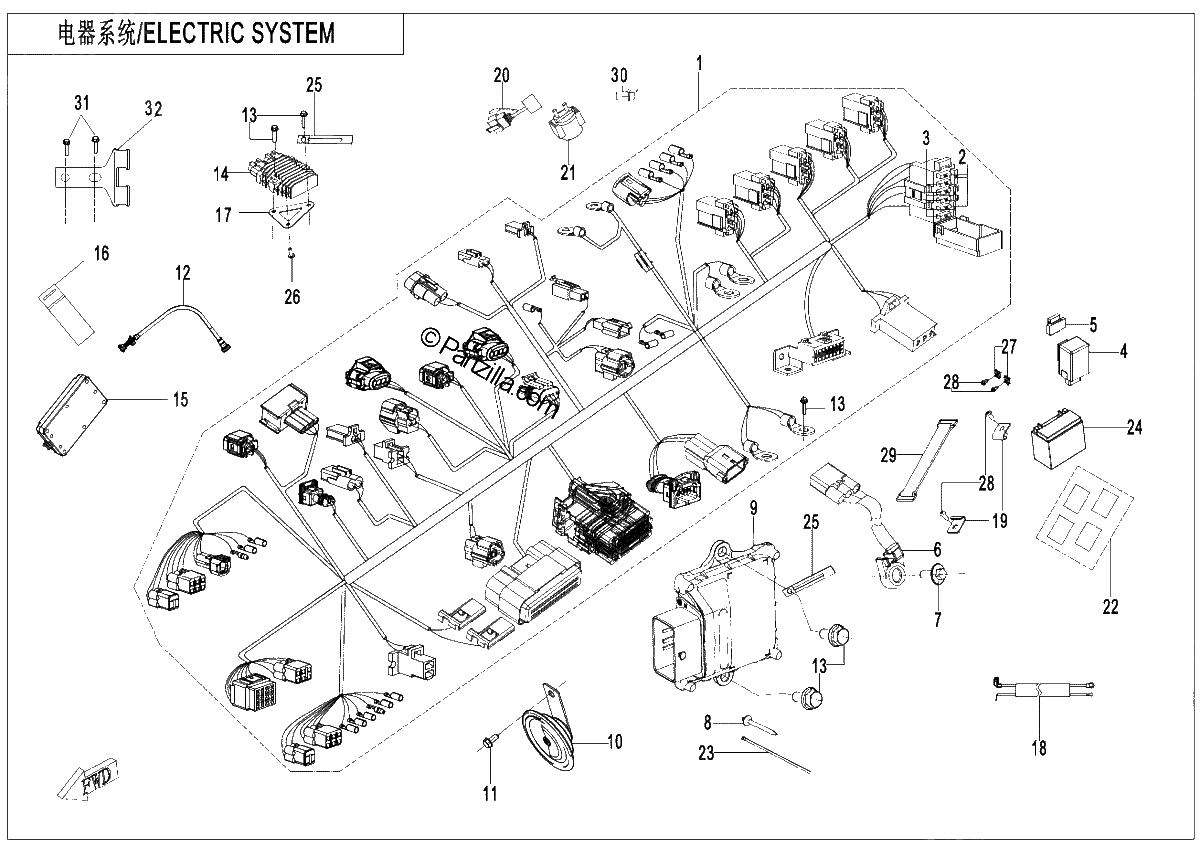

Diagrama de ELECTRIC SYSTEM

Repuestos

#1
6KNV-150100-6400
MAIN CABLE
No Disponible
1
#2
806A-151302
FUSE 10A
$3.44¢1 719
1
#3
806A-151305
FUSE (15A)
$2.29¢1 144
1
#4
6KNV-161000-6400
FLASHER
$45.99¢22 994
1
#5
8010-150002
CUSHION FLASHER
$2.29¢1 144
1
#6
6KMV-151200-8501
SIDE STAND SWITCH
$22.99¢11 494
1
#7
8010-090005
BOLT M6X16
$1.25¢627
1
#8
7030-150005
TIE BAND
$3.44¢1 719
1
#9
6KNV-001000-6400
ECU
$494.49¢247 244
1
#10
6050-150500
ELECTRIC HORN
$22.99¢11 494
1
#11
30006-080014810
BOLT M8X14
$1.25¢627
1
#12
0HU0-176000
OXYGEN SENSOR
$218.49¢109 244
1
#13
30006-060012870
BOLT M6X12
$0.69¢345
1
#14
6KJC-177000-8000
REGULATOR
$48.29¢24 144
1
#15
6GUV-151800-7101-M1
T BOX
No Disponible
1
#16
6KMV-150901-B002
RUBBER RING, T BOX
$2.29¢1 144
1
#17
6KM-151000-8000
BRACKET, REGULATOR
$9.19¢4 594
1
#18
6KMV-150020-8004
POSITIVE CABLE, STARTER MOTOR
$31.04¢15 519
1
#19
A000-030005
TIE BAND BRACKET, TOOLS KIT
$1.25¢627
1
#20
6KMV-152700-8500
GEAR CONTROL BLOCK
$36.79¢18 394
1
#21
6KJ0-150500
RELAY, STARTER
$17.24¢8 619
1
#22
9010-120008
SPONGE DAMPER, FUEL TANK
$3.44¢1 719
1
#23
8010-150003
TIE BAND 5X250
$1.25¢627
1
#24
31020902
BATTERY DYNAVOLT MG9 4B C
No Disponible
1
#25
0180-014010
WIRE CLAMP
No Disponible
1
#26
30204-060810
NUT M6
$1.25¢627
1
#27
8080-000002
CLIP NUT ST4.8
$1.25¢627
1
#28
30110-481130010
SELF TAPPING SCREW ST4.8X13
No Disponible
1
#29
1080-150700
TIE BAND
$6.89¢3 444
1
#30
6090-150500
DIODE START
$5.74¢2 869
1
#31
30006-060016870
BOLT M6X16
$1.25¢627
1
#32
6KM0-030090
MOUNTING BRACKET, INTELLIGENT VEHICLE TERMINAL
$9.19¢4 594
1
