FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

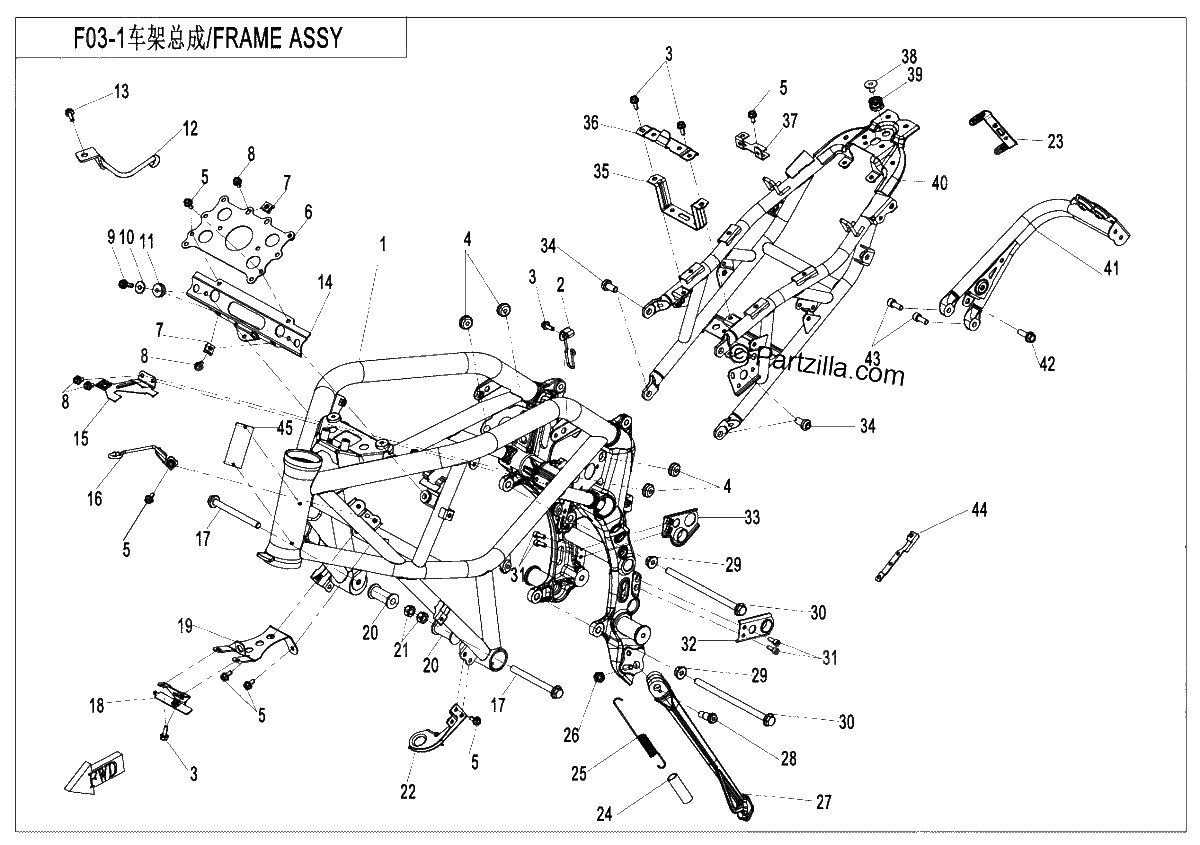

Diagrama de FRAME

Repuestos

#1
6GU-031000-6003-0BP00
FRAME
No Disponible
1
#2
6GU-030110-6000
WIRE CLIP, REAR BRAKE FLUID HOSE
$4.99¢2 494
1
#3
30006-060016870
BOLT M6X16
$1.36¢681
1
#4
0180-015003
RUBBER SLEEVE
$1.36¢681
1
#5
30006-060010810
BOLT M6X10
$1.36¢681
1
#6
6GU-030020-6000
BRACKET, ECU
$12.49¢6 244
1
#7
8030-040800-00001
NUT CLIP M6
$2.49¢1 244
1
#8
30006-060012870
BOLT M6X12
$0.75¢375
1
#9
30006-060020870
BOLT M6x20
$2.49¢1 244
1
#10
6GU-030150-6001
LIMIT BRACKET
$2.49¢1 244
1
#11
9010-160101
RUBBER CUSHION,HEADLIGHT
$1.36¢681
1
#12
6GU-030130-6000
BRACKET, CLUTCH CABLE
$6.24¢3 119
1
#13
30006-050012810
BOLT M5X12
$6.24¢3 119
1
#14
6GU-030050-6000
BRACKET, AIR FILTER
$19.99¢9 994
1
#15
6GU-030006-6000
BRACKET, ROLL OVER VALVE
$4.99¢2 494
1
#16
6GUV-030140-6002
LIMIT BRACKET
$8.74¢4 369
1
#17
30006-102110110
BOLT M10X1.25X110
$3.74¢1 869
1
#18
6GU-030060-6000
BRACKET, FRONT BRAKE FLUID HOSE
$4.99¢2 494
1
#19
6GU-030040-6000
BRACKET, ABS
$8.74¢4 369
1
#20
A000-000201
BUSHING, ENGINE
$7.49¢3 744
1
#21
30203-102110
NUT M10X1.25
$1.36¢681
1
#22
6GU-030090-6000
BRACKET, RADIATOR
$9.99¢4 994
1
#23
6GUV-030001-6200
BRACKER, REFLECTOR
$6.24¢3 119
1
#24
A000-030210
SPRING, SIDE STAND
$4.99¢2 494
1
#25
A000-030004
SPRING COLLAR, SIDE STAND
$3.74¢1 869
1
#26
30208-102810
NUT M10X1.25
$1.36¢681
1
#27
6GU-030005-6000
SIDE BRACKET
$112.49¢56 244
1
#28
6GU-030008-6000
BOLT, SIDE BRACKET
$6.24¢3 119
1
#29
30204-102810
NUT M10X1.25
$1.36¢681
1
#30
6GU-030002-6000
ENGINE MOUNTING SHAFT
$9.99¢4 994
1
#31
30102-060016810
SCREW M6X16
$1.36¢681
1
#32
6GU-030070-6000
LEFT HAND BRACKET, MUFFLER
$11.24¢5 619
1
#33
6GU-030080-6000
RIGHT HAND BRACKET, MUFFLER
$27.49¢13 744
1
#34
6GU-030007-6000
MOUNTING BOLT, VICE FRAME
$2.49¢1 244
1
#35
6GU-030010-6000
BRACKET, FUEL TANK
$7.49¢3 744
1
#36
6GU-030001-6000
LIMIT BRACKET, SEAT
$7.49¢3 744
1
#37
6GU-030120-6000
BRACKET, ROLL OVER SENSOR
$7.49¢3 744
1
#38
6KM0-120010
T TYPE BUSHING ASSEMBLY
$3.74¢1 869
1
#39
5020-031001
RUBBER SLEEVE, FRONT LICENSE BRACKET
$1.36¢681
1
#40
6GU-032000-6002-0BP00
SUB FRAME, MAUD SPIRIT BLACK
$624.99¢312 494
1
#41
6GU-030200-6000
BRACKET, REAR FENDER
$99.99¢49 994
1
#42
30006-080025810
BOLT M8X25
$1.36¢681
1
#43
30102-080020870
INNER HEX SCREW M8X20
$1.36¢681
1
#44
6GU-030160-6000
BRACKET, FENDER GUARD
$9.99¢4 994
1
