FUEL TANK 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

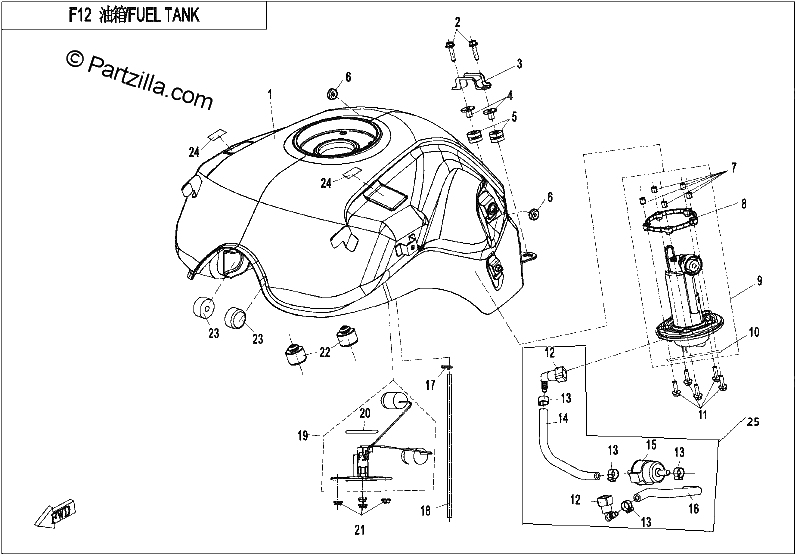

Diagrama de FUEL TANK 2

Repuestos

#1
6NTV-1201A0-1VE01
FUEL TANK ASSEMBLY
$1034.99¢517 494
1
#1
6NTV-1201A0-1EK01
FUEL TANK ASSEMBLY
$804.99¢402 494
1
#2
30006-060025810
BOLT M6X25
$3.44¢1 719
1
#3
A000-120005
HOOK
$2.29¢1 144
1
#4
5020-031002
RUBBER COLLAR
$1.25¢627
1
#5
5020-031001
RUBBER SLEEVE, FRONT LICENSE BRACKET
$1.25¢627
1
#6
A000-040302
RUBBER DAMPER
$3.44¢1 719
1
#7
6KJ0-150903
BUSHING
$2.29¢1 144
1
#8
6KJ0-150902
SEAL GASKET
$5.74¢2 869
1
#9
6KJV-150900-8001
FUEL PUMP ASSEMBLY
$172.49¢86 244
1
#10
6KJ0-150901
LOCK PAD, TOP COVER
$8.04¢4 019
1
#11
30006-050020810
BOLT M5X20
$1.25¢627
1
#12
6090-120210
QUICK JOINT
$20.69¢10 344
1
#13
6070-120400
CLAMP D14.5
$2.29¢1 144
1
#14
A010-120210-10000
HIGH PRESSURE FUEL HOSE I
$22.99¢11 494
1
#15
6090-120220
FUEL FILTER, INLINE (WITH RUBBER COLLAR)
$26.44¢13 219
1
#16
A000-120220-10000
HIGH PRESSURE FUEL HOSE 2
$18.39¢9 194
1
#17
30601-111010
CLAMP f10.5A
$1.25¢627
1
#18
9CR6-120001
BREATHER HOSE, FUEL TANK
$34.49¢17 244
1
#19
6NQV-170200-2801
FUEL LEVEL SENSOR
$45.99¢22 994
1
#19
6NQV-170200-2800
FUEL LEVEL SENSOR
$45.99¢22 994
1
#21
30202-060110
NUT M6
No Disponible
1
#22
A000-120001
RUBBER SUPPORT
$3.44¢1 719
1
#23
A000-120006
CUSHION
$3.44¢1 719
1
#24
6NT1-041510
BUCKLE COMP
$3.44¢1 719
1
#25
A010-120200
FUEL HOSE Assembly
$80.49¢40 244
1
