FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

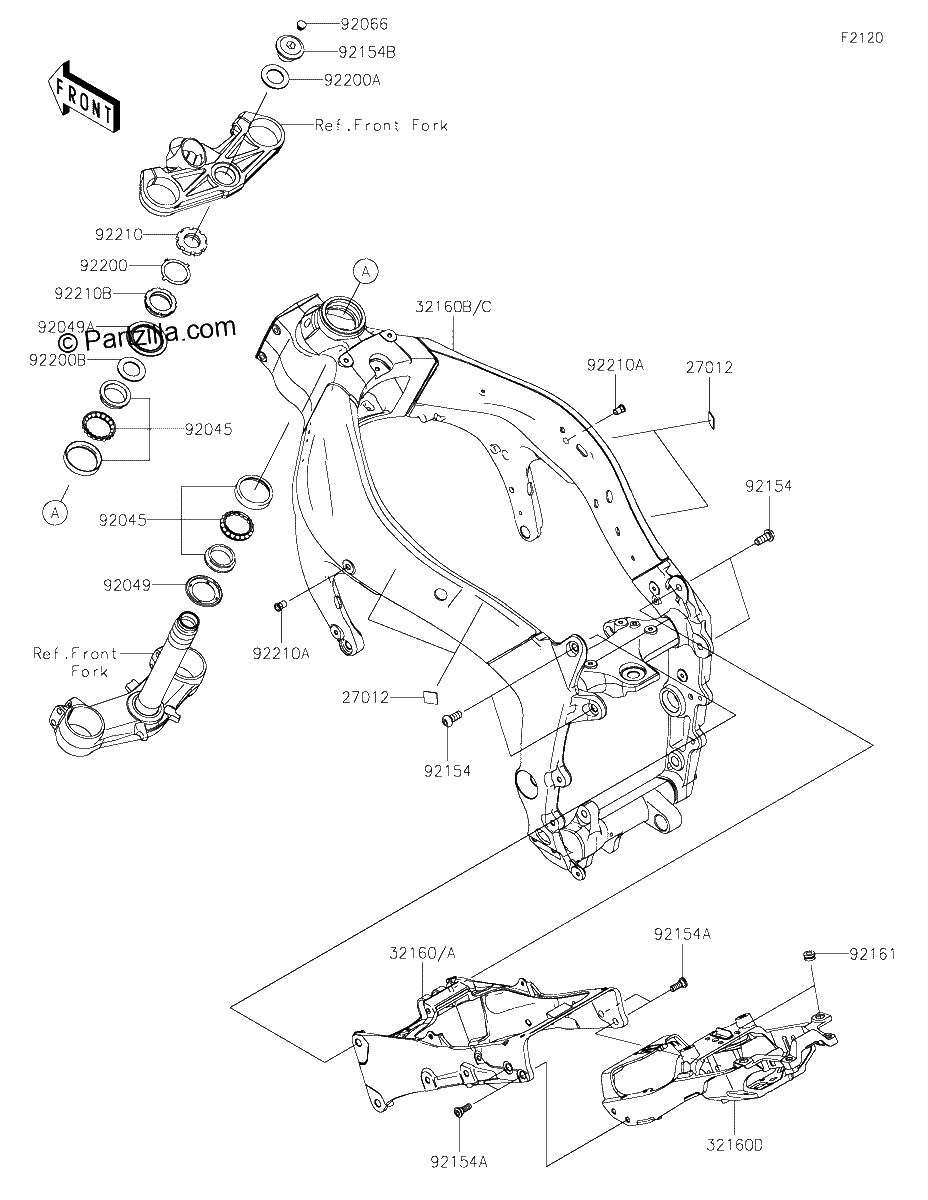

Diagrama de FRAME

Repuestos

#27012
27012-0741
HOOK,30X30X3.2
$7.81¢3 906
1
#32160
32160-0399-18R
FRAME COMP,Rear,Front,F S BLACK
$291.26¢145 631
1
#32160
32160-2058-458
FRAME COMP,Rear,Front,P SILVER
$291.26¢145 631
1
#32160C
32160-1992
FRAME-COMP,RR,RR
$290.32¢145 163
1
#32160D
32160-1992
FRAME-COMP,RR,RR
$290.32¢145 163
1
#32160B
32160-0982-458
FRAME COMP,MAIN,P SILVER
$2289.16¢1 144 581
1
#32160A
32160-0982-458
FRAME COMP,MAIN,P SILVER
$2289.16¢1 144 581
1
#32160A
32160-0982-18R
FRAME-COMP,MAIN,F.S.BLACK
$2289.16¢1 144 581
1
#32160B
32160-0982-18R
FRAME-COMP,MAIN,F.S.BLACK
$2289.16¢1 144 581
1
#32160
32160-0399-458
FRAME-COMP,RR,FR,P.SILVER
No Disponible
1
#92045
92045-1384
BEARING BALL,SF07A17PX1V1
$52.01¢26 006
1
#92049A
92049-0742
SEAL-OIL,43X55.5X8.6
$19.64¢9 819
1
#92049
92049-0022
SEAL-OIL,DS35X55X4
$17.09¢8 544
1
#92066
92066-0071
PLUG
$3.01¢1 506
1
#92154B
92154-7059
BOLT,26MM
$34.56¢17 281
1
#92154A
92154-1901
BOLT,SOCKET,8X23
$3.57¢1 787
1
#92154
92154-1900
BOLT,SOCKET,10X25
$4.92¢2 463
1
#92161
92161-0056
DAMPER
$3.10¢1 550
1
#92200B
92200-0862
WASHER,36X47X0.6
$3.83¢1 913
1
#92200A
92200-0081
WASHER,27X42X2.3
$3.70¢1 850
1
#92200
92200-0036
WASHER
$4.96¢2 481
1
#92210A
92210-0099
NUT,6MM
$5.51¢2 756
1
#92210
92210-0062
NUT,STEERING STEM 35MM
$14.70¢7 350
1
#92210B
92210-0823
NUT,35MM
$26.72¢13 362
1
