COOLING SYSTEM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

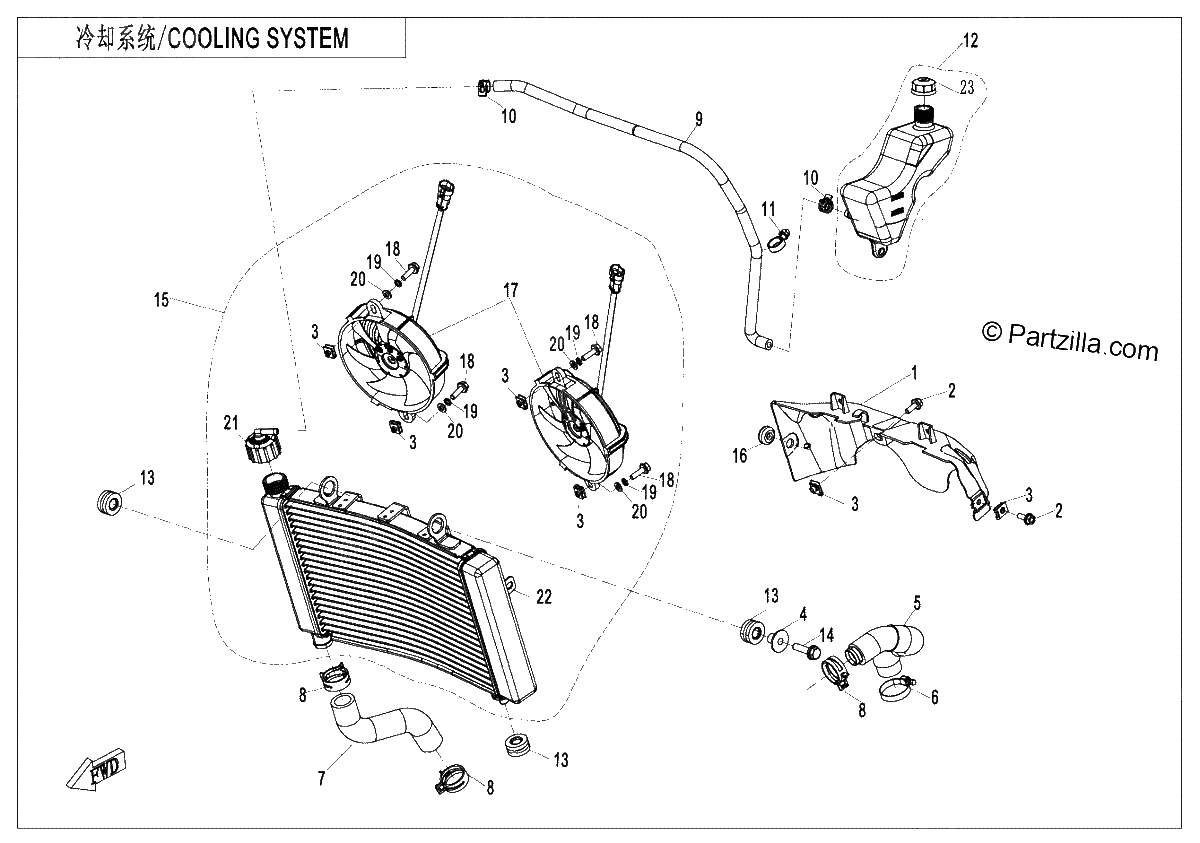

Diagrama de COOLING SYSTEM

Repuestos

#1
6GU-040044-6001
DEFLECTOR, FAN
$20.69¢10 344
1
#2
30006-060016870
BOLT M6X16
$1.25¢627
1
#3
8030-040800-00001
NUT CLIP M6
$2.29¢1 144
1
#4
A000-180010-20000
COLLAR, RADIATOR
$2.29¢1 144
1
#5
6GU-180001-6000
WATER INLET PIPE, RADIATOR
$18.39¢9 194
1
#6
9010-180007
CLAMP, WATER HOSE
$6.89¢3 444
1
#7
A000-180002-20000
WATER OUTLET PIPE, RADIATOR
$39.09¢19 544
1
#8
A000-180006
CLAMP D30
$8.04¢4 019
1
#9
6GU-180003-6000
CONNECTING PIPE, RESERVOIR
$11.49¢5 744
1
#10
30601-212570
CLAMP D12.5
$2.29¢1 144
1
#11
A000-050015
WIRE CLIP, FRONT BRAKE FLUID HOSE
$1.25¢627
1
#12
6GUV-180010-6001
RESERVOIR TANK ASSEMBLY
$22.99¢11 494
1
#13
A000-180005
DAMPER, RADIATOR
$4.59¢2 294
1
#14
30006-080030870
BOLT M8X30
$2.29¢1 144
1
#15
6GUV-181000-6001
RADIATOR
$804.99¢402 494
1
#16
A000-040302
RUBBER DAMPER
$3.44¢1 719
1
#17
6NTA-181300
FAN MOTOR ASSEMBLY
$229.99¢114 994
1
#18
30006-060020870
BOLT M6x20
$2.29¢1 144
1
#19
30303-060112
WASHER
$1.25¢627
1
#20
30306-060142
WASHER
$1.25¢627
1
#21
6GUV-181010-6001
FILLER CAP ASSEMBLY
$13.79¢6 894
1
#22
6GU-181100-6000
RADIATOR ASSEMBLY
$459.99¢229 994
1
#23
6KM-180210-8000
RESERVOIR TANK CAP ASSEMBLY
$2.29¢1 144
1
