BRAKE SYSTEM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

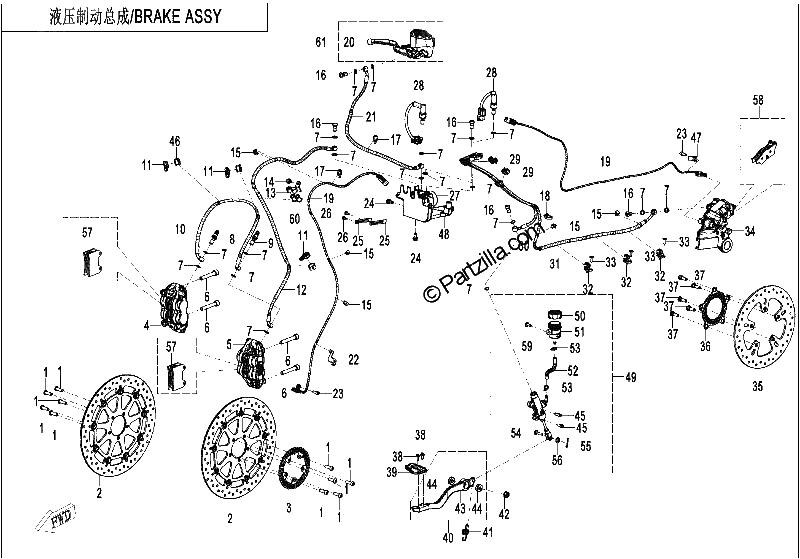

Diagrama de BRAKE SYSTEM

Repuestos

#1
C90709062000
FIXED BOLT, BRAKE DISC
No Disponible
1
#2
6L30-080010
FRONT BRAKE DISC ASSEMBLY
$206.99¢103 494
1
#3
6L30-080003
GEAR RING, FRONT WHEEL
$14.94¢7 469
1
#4
6WWV-081200-5000-10
FRONT BRAKE CALIPER, RIGHT HAND (SILVER)
No Disponible
1
#4
6WWV-081200-5000
FRONT RIGHT HAND BRAKE CALIPER ASSEMBLY (BLACK)
No Disponible
1
#5
6GU-081100-6000
FRONT LEFT HAND BRAKE CALIPER ASSEMBLY (BLACK)
$574.99¢287 494
1
#5
6GUV-081100-6000-10
FRONT BRAKE CALIPER, LEFT HAND (SILVER)
No Disponible
1
#6
30102-102060810
SCREW M10X60X1.25
$2.29¢1 144
1
#7
A000-080102-2000
WASHER
$2.29¢1 144
1
#8
6GU-081000-6000-22
BANJO BOLT 1
$13.79¢6 894
1
#9
6WWV-080006-5001-M1
BANJO BOLT, LONG
$18.39¢9 194
1
#10
6WWV-081030-5000-M1
LOWER FLUID HOSE, FRONT BRAKE
$126.49¢63 244
1
#11
A000-050015
WIRE CLIP, FRONT BRAKE FLUID HOSE
$1.25¢627
1
#12
6WWV-081020-5000-M1
FLUID INLET PIPE, FRONT BRAKE
$160.99¢80 494
1
#13
6WWV-080003-5000
WIRE CLIP 1, FRONT BRAKE FLUID HOSE
$5.74¢2 869
1
#14
30006-060010810
BOLT M6X10
$1.25¢627
1
#15
6KJ0-080003-00001
CLIP, BRAKE HOSE
$2.29¢1 144
1
#16
6GU-081000-6000-23
BANJO BOLT2
$16.09¢8 044
1
#17
8010-150003
TIE BAND 5X250
$1.25¢627
1
#18
801F-100101
TIE BAND
$1.25¢627
1
#19
6L30-080020
SPEED SENSOR, FRONT WHEEL
$80.49¢40 244
1
#20
6GU-080110-6000-39
BRAKE LEVER, FRONT, BLACK
$57.49¢28 744
1
#21
6WWV-081010-5000-M1
FRONT BRAKE FLUID OUTLET HOSE
$137.99¢68 994
1
#22
6WWV-080007-5000
WIRE CLIP, RPM SENSOR
$4.59¢2 294
1
#23
30102-060016810
SCREW M6X16
$1.25¢627
1
#24
8010-000004
BOLT M6X14
$1.25¢627
1
#25
0180-014010
WIRE CLAMP
No Disponible
1
#26
30118-480130010
SELF TAPPING SCREW ST4.8X13
$1.60¢799
1
#27
6WWV-081400-5000
MSC CONTROLLER
$1379.99¢689 994
1
#28
6GU-080010-6003
HYDRAULIC INDUCTION SWITCH
No Disponible
1
#29
6L30-080006
WIRE CLIP 2, BRAKE FLUID HOSE
$3.44¢1 719
1
#30
6WWV-081050-5000-M1
FLUID OUTLET PIPE, REAR BRAKE
$114.99¢57 494
1
#31
6WWV-081040-5000-M1
REAR BRAKE FLUID OUTLET HOSE
$229.99¢114 994
1
#32
6L30-080005
WIRE CLIP 1, BRAKE FLUID HOSE
$2.29¢1 144
1
#33
6WWV-047102-5000
INNER HEX SCREW M5X14
$1.25¢627
1
#34
6WWV-081600-5000-10
REAR BRAKE CALIPER (SILVER)
No Disponible
1
#34
6WWV-081600-5001
RAER BRAKE CALIPER ASSEMBLY (BLACK)
No Disponible
1
#35
6GU-090001-6000-M1
REAR BRAKE DISC
$80.49¢40 244
1
#36
6GU-090002-6001
REAR GEAR RING
$13.79¢6 894
1
#37
A000-080001
SCREW
$1.25¢627
1
#38
30006-050012870
BOLT
$1.25¢627
1
#39
6WWV-081402-5000
FOOTREST BRACKET
$9.19¢4 594
1
#40
6WWV-081401-5000
REAR BRAKE PEDAL
$68.99¢34 494
1
#41
6WWV-080005-5000
RETURN SPRING
$4.59¢2 294
1
#42
30204-080810
NUT M8
$1.25¢627
1
#43
6WWV-081401-5000-20
REAR BRAKE PEDAL
$57.49¢28 744
1
#44
30400-00880
BEARING 8X22X7
$5.74¢2 869
1
#45
30102-060022810
SCREW
$1.25¢627
1
#46
6KM-080002-8000
RUBBER OIL HOSE CLIP
$2.29¢1 144
1
#47
6WWV-080002-5000
WIRE CLIP, REAR SPEED SENSOR
$4.59¢2 294
1
#48
6WWV-080009-5000
ABS NYLON BRACKET
$18.39¢9 194
1
#49
6WWV-081300-5000
REAR BRAKE MASTER CYLINDER ASSEMBLY
$275.99¢137 994
1
#50
6WWV-081300-5000-22
CAP, BRAKE FLUID RESERVOIR
$13.79¢6 894
1
#51
6KM0-091204
FLUID RESERVOIR
$22.99¢11 494
1
#52
6WWV-081300-5000-21
FLUID RESERVOIR HOSE
$18.39¢9 194
1
#53
6GU-081300-6000-24
CLIP, FUEL HOSE
$4.59¢2 294
1
#54
A000-080216-2000
PIN SHAFT
$5.74¢2 869
1
#55
A000-080233-2000
PIN
$2.29¢1 144
1
#56
A000-080234-2000
WASHER 8
$3.44¢1 719
1
#57
6GU-0811A0-6000
FRONT BRAKE PAD ASSEMBLY
$172.49¢86 244
1
#58
6WWV-0816A0-5000
REAR BRAKE PAD ASSEMBLY
$110.39¢55 194
1
#59
6WWV-046802-5000
INNER HEX SCREW M6X16
$1.25¢627
1
#60
6KM-080003-8100
RUBBER OIL HOSE CLIP 1
$2.29¢1 144
1
#61
6WWV-080110-5000
MASTER CYLINDER, FRONT BRAKE
$321.99¢160 994
1
