FOOTREST REAR HANDRAIL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

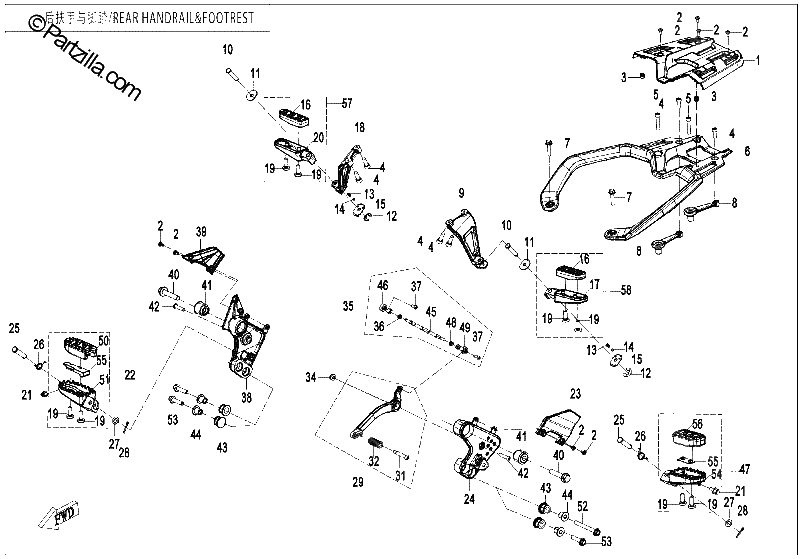

Diagrama de FOOTREST REAR HANDRAIL

Repuestos

#1
6WWV-140008-5000
DECO COVER, REAR ARMREST
$29.99¢14 994
1
#2
6WWV-046502-5000
STEPPED SCREW M5
No Disponible
1
#3
6WWV-045801-5000
RUBBER
$1.36¢681
1
#4
30102-080020810
SCREW, M8X20
$1.36¢681
1
#5
30102-080040810
SCREW, M8X40
$1.36¢681
1
#7
30006-080035810
BOLT M8X35
$1.36¢681
1
#8
6WWV-140004-5000
BRACKET, REAR ARMREST
$32.49¢16 244
1
#9
6WWV-140001-5000
BRACKET, LEFT HAND REAR FOOTREST
$162.49¢81 244
1
#10
A000-140142
PIN SHAFT 8
$3.74¢1 869
1
#11
A000-140106
LOCATING GASKET 2
$2.49¢1 244
1
#12
30802-00605
CIRCLIP
$1.36¢681
1
#13
5190-037813
SPRING
$2.49¢1 244
1
#14
5190-037814
STEEL BALL
$1.24¢619
1
#15
A000-140104
LOCATING GASKET 1
$3.74¢1 869
1
#16
6GU-140080-6000
RUBBER, REAR FOOTREST BOARD
$11.24¢5 619
1
#18
6WWV-140002-5000
BRACKET, RIGHT HAND REAR FOOTREST
$187.49¢93 744
1
#19
30105-050014470
SCREW M5X14 (BLACK)
$1.36¢681
1
#21
6GU-140202-6000
LIMIT BOLT (BLACK)
$2.49¢1 244
1
#22
6WWV-140300-5000
RIGHT HAND FRONT FOOTREST SEAT ASSEMBLY
No Disponible
1
#23
6WWV-140102-5000
PANEL, LEFT HAND FRONT FOOTREST BRACKET
$6.24¢3 119
1
#24
6WWV-140100-5000
BRACKET, LEFT HAND FRONT FOOTREST
No Disponible
1
#25
6WWV-140141-5000
PIN SHAFT
$2.49¢1 244
1
#26
A000-140103-20000
SPRING
$2.49¢1 244
1
#27
30300-100112
WASHER M10
$1.36¢681
1
#28
30903-0322210
COTTER PIN, 3.2X22
$1.36¢681
1
#29
6WWV-140110-5000
PEDAL ASSEMBLY, GEARSHIFT ROD
$87.49¢43 744
1
#31
6NQ-140104-6002
BOLT, PEDAL
$8.74¢4 369
1
#32
6GUV-140101-6000
RUBBER SLEEVE, PEDAL
$14.99¢7 494
1
#34
30204-080810
NUT M8
$1.36¢681
1
#35
6WWV-140120-5000
CONNECTING PART, GEARSHIFT ROD
$49.99¢24 994
1
#36
30200-060810
NUT M6
$1.36¢681
1
#37
30121-060016700
SCREW M6X16
$1.36¢681
1
#38
6WWV-140200-5000
BRACKET, RIGHT HAND FRONT FOOTREST
No Disponible
1
#39
6WWV-140202-5000
PANEL, RIGHT HAND FRONT FOOTREST BRACKET
$4.99¢2 494
1
#40
6WWV-030018-5000
BOLT M12X60
$4.99¢2 494
1
#41
6WWV-140050-5000
RUBBER SLEEVE
$22.49¢11 244
1
#42
30121-080035860
SCREW, M8X35
$1.24¢619
1
#43
6WWV-140401-5000
DAMPER
$2.49¢1 244
1
#44
6WWV-140405-5000
BUSHING
$7.49¢3 744
1
#45
6WWV-140121-5000
CONNECTING ROD
$16.24¢8 119
1
#46
6GU-140140-6001
BEARING
$13.74¢6 869
1
#48
30200-06087L
NUT M6
$1.36¢681
1
#49
6GU-140160-6001
BEARING
$13.74¢6 869
1
#50
6GU-140206-6000
RIGHT HAND FRONT FOOTREST RUBBER
$8.74¢4 369
1
#51
6WWV-140302-5000
RIGHT HAND FRONT FOOTREST SEAT
No Disponible
1
#52
6WWV-140009-5000
BOLT M10X87
$4.99¢2 494
1
#53
30006-102035860
BOLT
$2.49¢1 244
1
#54
6WWV-140301-5000
LEFT HAND FRONT FOOTREST SEAT
No Disponible
1
#55
6GU-140207-6000
BALANCING WEIGHT
$9.99¢4 994
1
#56
6GU-140205-6000
LEFT HAND FRONT FOOTREST RUBBER
$9.99¢4 994
1
