PLASTICS 7

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

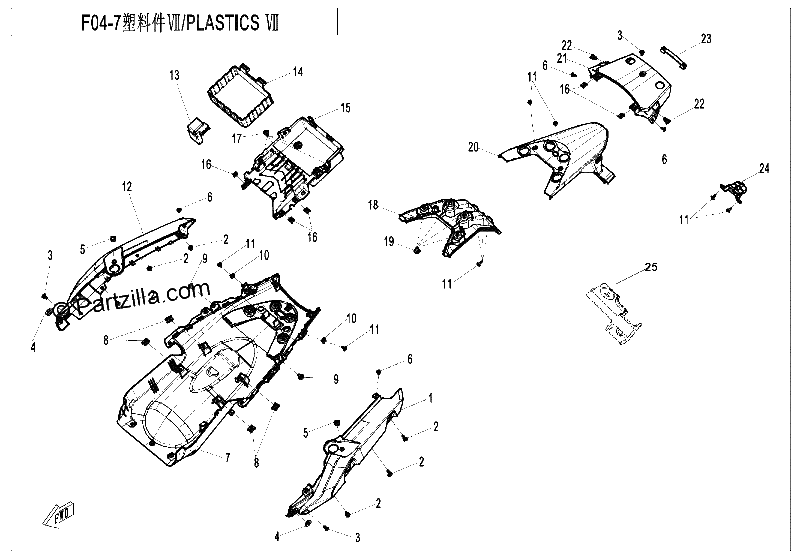

Diagrama de PLASTICS 7

Repuestos

#2
8080-041130
PLASTIC SCREW
$1.36¢681
1
#3
6WWV-046502-5000
STEPPED SCREW M5
No Disponible
1
#4
8080-040064
DAMPER, FRONT FENDER
$1.36¢681
1
#5
6WWV-045801-5000
RUBBER
$1.36¢681
1
#6
30110-481130010
SELF TAPPING SCREW ST4.8X13
No Disponible
1
#7
6WWV-042501-5000
SKID PLATE, FRAME
No Disponible
1
#8
8030-040800-00001
NUT CLIP M6
$2.49¢1 244
1
#9
6WWV-046702-5000
INNER HEX SCREW M6X12
$1.36¢681
1
#10
8080-000002
CLIP NUT ST4.8
$1.36¢681
1
#11
30110-481130070
SELF TAPPING SCREW
$1.36¢681
1
#13
6WWV-045901-5000
RUBBER BUSHING, AUXILIARY RELAY
$4.99¢2 494
1
#14
6WWV-043401-5000
RUBBER MAT, BATTERY
$17.49¢8 744
1
#15
6WWV-043301-5000
BRACKET, ELECTRICAL PART
No Disponible
1
#16
8080-000002
CLIP NUT ST4.8
$1.36¢681
1
#17
8030-040020-1000
SCREW M6X17.5
$2.49¢1 244
1
#18
6WWV-042801-5000
REINFORCEMENT PLATE, REAR FENDER
$37.49¢18 744
1
#19
8010-090005
BOLT M6X16
$1.36¢681
1
#20
6WWV-042601-5000
REAR FENDER
$39.99¢19 994
1
#21
6WWV-042901-5000
UPPER COVER, TAIL LIGHT
$19.99¢9 994
1
#22
8080-000001
CLASP
$1.36¢681
1
#23
6WWV-043201-5000
HOOK RUBBER, TAIL LIGHT
$3.74¢1 869
1
#24
6WWV-042701-5000
BRACKET, LICENSE LIGHT
$3.74¢1 869
1
#25
6WWV-043310-5000
BRACKET, AUXILIARY RELAY
$4.99¢2 494
1
