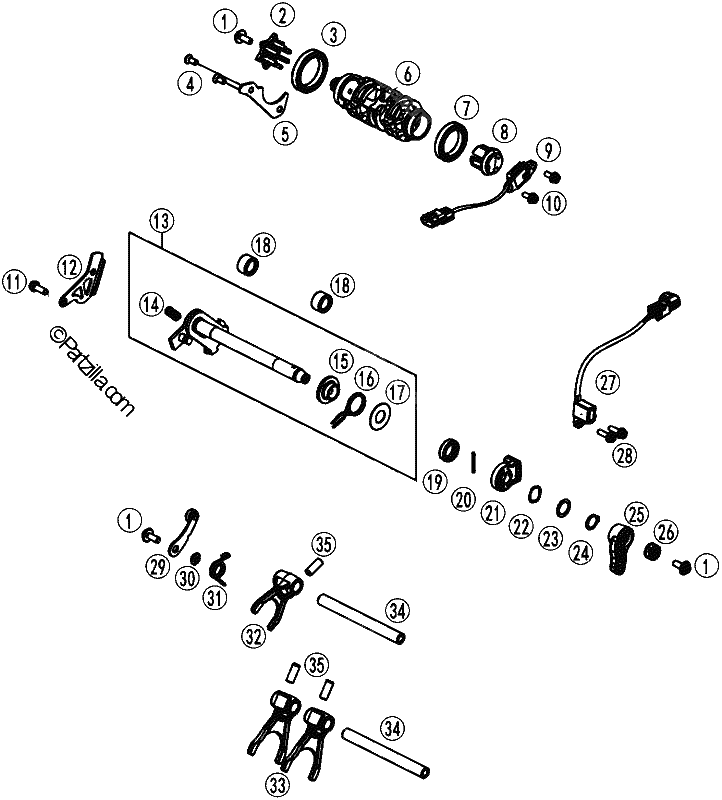

SHIFTING MECHANISM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SCREW M6X15
$2.29¢1 144
#2
SHIFT STAR
$45.99¢22 994
#3
DEEP GROOVE BALL BEARINGS 35X47X8
$34.49¢17 244
#4
SCREW M5X12
$1.25¢627
#5
BEARING RETAINING BRACKET SHIFT DRUM
$5.74¢2 869
#6
SHIFT DRUM
$344.99¢172 494
#7
DEEP GROOVE BALL BEARINGS 30X42X8
$29.89¢14 944
#8
MAGNET HOLDER CPL
$45.99¢22 994
#9
GEAR POSITION SENSOR
$229.99¢114 994
#10
SCREW M5X12
$1.25¢627
#11
SCREW M6X16
$2.29¢1 144
#12
BEARING LOCK WASHER (SHIFT SHAFT STOP)
$8.04¢4 019
#13
SHIFT SHAFT CPL
$459.99¢229 994
#14
TORSION SPRING 0.8MM
$8.04¢4 019
#15
SPRING GUIDE
$11.49¢5 744
#16
RETURN SPRING
$14.94¢7 469
#17
STOP DISC 14X30X1
$9.19¢4 594
#18
NEEDLE SLEEVE 14X20X12
$6.89¢3 444
#19
SHAFT SEAL RING 14X24X6
$5.74¢2 869
#20
STUD 2.5X24
$3.44¢1 719
#21
MAGNET HOLDER
$45.99¢22 994
#22
WAVE SPRING
$9.19¢4 594
#23
SHIM 14X20X0.5
$2.29¢1 144
#24
CIRCLIP 14X1
$1.25¢627
#25
LINK SUPPORT CAM
$126.49¢63 244
#26
NORDLOCK WASHER M6
$3.44¢1 719
#27
SHIFT SHAFT SENSOR
$218.49¢109 244
#28
BOLT DIN6912 M5X12 8.8
No Disponible
#29
ARREST ARM CPL
$16.09¢8 044
#30
STEP WASHER
$5.74¢2 869
#31
SPRING ARREST ARM
$2.29¢1 144
#32
SHIFT FORK
No Disponible
#33
SHIFT FORK
$51.74¢25 869
#34
SHIFT FORK SHAFT
$18.39¢9 194
#35
NEELDE ROLLER D8X20
$2.29¢1 144
