IGNITION SWITCH LOCKS REFLECTORS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

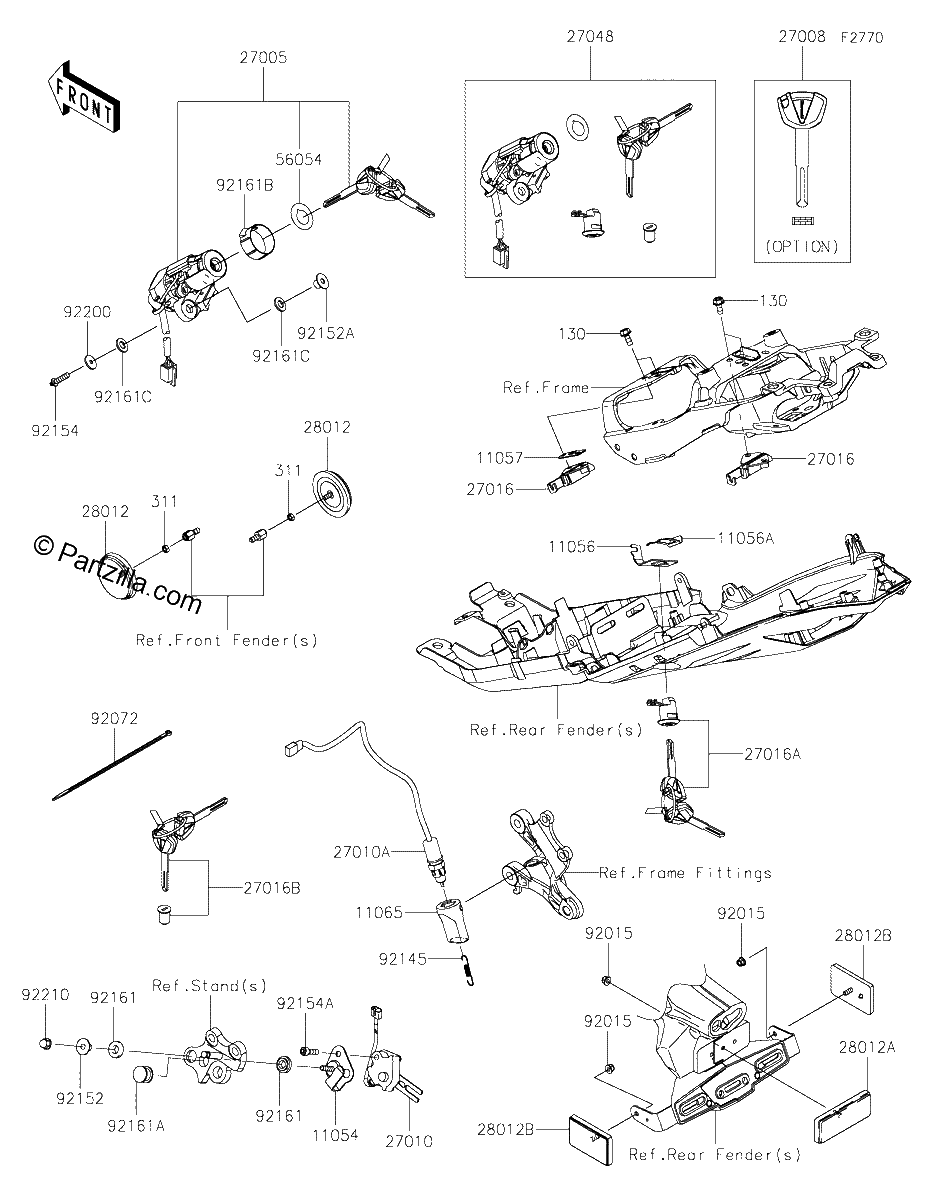

Diagrama de IGNITION SWITCH LOCKS REFLECTORS

Repuestos

#130
130BC0614
BOLT-FLANGED,6X14
$1.66¢831
1
#311
311AB0500
NUT HEX,5MM
$0.60¢300
1
#11054
11054-1904
BRACKET,SIDE STAND SWITCH
$11.17¢5 587
1
#11056
11056-0237
BRACKET
$4.38¢2 188
1
#11056A
11056-0238
BRACKET,CLASP
$5.90¢2 950
1
#11057
11057-2650
BRACKET,FR
$2.81¢1 406
1
#11065
11065-0381
CAP,RR BRAKE SWITCH
$13.57¢6 788
1
#27005
27005-0725
SWITCH Assembly IGNITION
$227.30¢113 650
1
#27008
27008-0662
KEY-LOCK,BLANK
$32.85¢16 425
1
#27010A
27010-0867
SWITCH,RR BRAKE
$40.17¢20 088
1
#27010
27010-0741
SWITCH,SIDE STAND
$147.57¢73 788
1
#27016B
27016-5425
LOCK Assembly,TANK CAP
$161.21¢80 606
1
#27016A
27016-5424
LOCK Assembly,SEAT
$171.38¢85 688
1
#27016
27016-1115
LOCK Assembly,SEAT STRIKER
$34.35¢17 175
1
#27048
27048-5306
SWITCH-ASSY
$532.19¢266 094
1
#28012B
28012-1088
REFLECTOR REFLEX
$23.64¢11 819
1
#28012A
28012-1077
REFLECTOR-REFLEX
$25.47¢12 737
1
#28012
28012-0001
REFLECTOR-REFLEX,FR,SIDE
$25.51¢12 756
1
#56054
56054-3854
MARK,IGNITION SWITCH
$12.29¢6 144
1
#92015
92015-1752
NUT,LOCK,FLANGED,5MM
$4.29¢2 144
1
#92072
92072-3768
BAND,L=148
$3.90¢1 950
1
#92145
92145-1890
SPRING,REAR BRAKE SWITCH
$3.65¢1 825
1
#92152A
92152-1699
COLLAR,6.8X10X11.6
$4.60¢2 300
1
#92152
92152-1074
COLLAR
$6.09¢3 044
1
#92154A
92154-1898
BOLT,SOCKET,6X22
$2.09¢1 044
1
#92154
92154-1129
BOLT,TORX,6X24
$4.07¢2 037
1
#92161C
92161-1507
DAMPER,10X17X3
$2.44¢1 219
1
#92161B
92161-1506
DAMPER
$6.47¢3 238
1
#92161A
92161-0118
DAMPER
$2.76¢1 381
1
#92161
92161-0117
DAMPER
$2.76¢1 381
1
#92200
92200-0212
WASHER,6X20X1.6
$3.01¢1 506
1
#92210
92210-0003
NUT,CAP,6MM
$0.78¢388
1
