FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

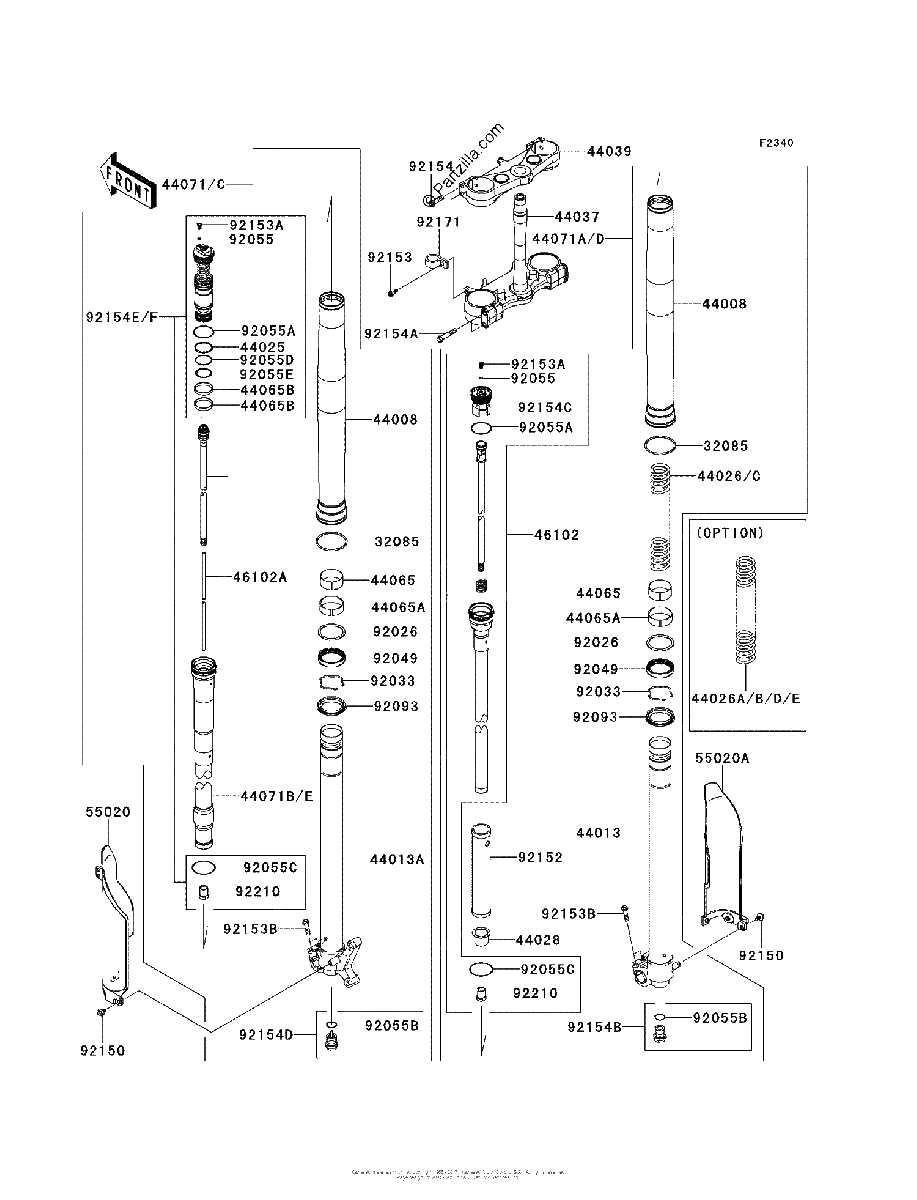

Diagrama de FRONT FORK

Repuestos

#32085
32085-0711
STOPPER
$6.19¢3 094
1
#44008
44008-0059
PIPE-FORK OUTER
$701.00¢350 500
1
#44013
44013-0202
PIPE-FORK INNER,RH
$767.96¢383 981
1
#44013A
44013-0204
PIPE-FORK INNER,LH
$767.96¢383 981
1
#44025
44025-0052
RING FORK PISTON
$21.85¢10 925
1
#44026
44026-0168
SPRING-FRONT FORK,K=9.4N/MM
$150.88¢75 438
1
#44026
44026-0181
SPRING-FRONT FORK
$150.88¢75 438
1
#44026A
44026-0175
SPRING-FRONT FORK,K=9.0N/MM *{(OPTION)}*
$150.88¢75 438
1
#44026A
44026-0176
SPRING-FRONT FORK,K=9.8N/MM *{(OPTION)}*
$150.88¢75 438
1
#44026B
44026-0176
SPRING-FRONT FORK,K=9.8N/MM *{(OPTION)}*
$150.88¢75 438
1
#44026A
44026-0182
SPRING FRONT FORK,K=9.2N/MM
$150.88¢75 438
1
#44026A
44026-0183
SPRING-FRONT FORK,K=10.0N/MM | (OPTION)
$150.88¢75 438
1
#44028
44028-0055
GUIDE-FORK SPRING
$24.01¢12 006
1
#44037
44037-0133-21
HOLDER FORK UNDER,F BLACK
$722.29¢361 144
1
#44039
44039-0122-21
HOLDER FORK UPPER,F BLACK
$336.11¢168 056
1
#44065
44065-0059
BUSHING FRONT FORK,SLIDE
$16.69¢8 344
1
#44065A
44065-0060
BUSHING FRONT FORK,GUIDE
$16.09¢8 044
1
#44065B
44065-0061
BUSHING-FRONT FORK
$22.46¢11 231
1
#44071
44071-0828
DAMPER Assembly,FORK,Left Hand
$2247.78¢1 123 888
1
#44071
44071-0884
DAMPER-ASSY,FORK,LH
$2247.78¢1 123 888
1
#44071A
44071-0829
DAMPER Assembly,FORK,Right Hand
$1912.47¢956 238
1
#44071B
44071-0840
DAMPER Assembly,COMP
$899.16¢449 581
1
#44071A
44071-0885
DAMPER-ASSY,FORK,RH
$1912.47¢956 238
1
#44071B
44071-0917
DAMPER Assembly,COMP
$849.88¢424 938
1
#46102
46102-0578
ROD,JOINT
$624.69¢312 344
1
#46102A
46102-0579
ROD,PUSH
$13.91¢6 956
1
#55020
55020-0441-6C
GUARD,FORK,Left Hand,EBONY
$70.04¢35 019
1
#55020A
55020-0442-6C
GUARD,FORK,Right Hand,EBONY
$70.04¢35 019
1
#92026
92026-0737
SPACER,SEAL
$5.99¢2 994
1
#92033
92033-0720
RING SNAP
$8.95¢4 475
1
#92049
92049-0735
SEAL-OIL
$31.81¢15 906
1
#92055B
92055-0743
RING-O
$1.63¢813
1
#92055C
92055-0744
RING O
$3.83¢1 913
1
#92055D
92055-0745
RING O
$4.96¢2 481
1
#92055E
92055-0746
RING-O
$2.29¢1 144
1
#92055A
92055-0131
RING-O
$5.79¢2 894
1
#92055
92055-0094
RING O
$2.73¢1 363
1
#92093
92093-0584
SEAL,DUST
$22.75¢11 375
1
#92150
92150-1340
BOLT,6X14
$5.02¢2 512
1
#92152
92152-1652
COLLAR
$52.33¢26 163
1
#92153A
92153-1398
BOLT,PLUG
$3.17¢1 588
1
#92153B
92153-1399
BOLT,FLANGED,8X40
$4.84¢2 419
1
#92153
92153-1397
BOLT,FLANGED
$4.11¢2 056
1
#92154A
92154-0464
BOLT
$3.75¢1 875
1
#92154B
92154-1057
BOLT,CENTER,RH
$36.83¢18 413
1
#92154C
92154-1058
BOLT,ADJ COMP
$198.28¢99 138
1
#92154D
92154-1059
BOLT,CENTER,LH
$52.91¢26 456
1
#92154E
92154-1060
BOLT,FORK
$509.28¢254 638
1
#92154E
92154-1314
BOLT,FORK
$509.28¢254 638
1
#92154
92154-0463
BOLT
$4.60¢2 300
1
#92171
92171-0506
CLAMP,BRAKE HOSE
$19.09¢9 544
1
#92210
92210-0430
NUT,LOCK
$15.18¢7 588
1
