FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

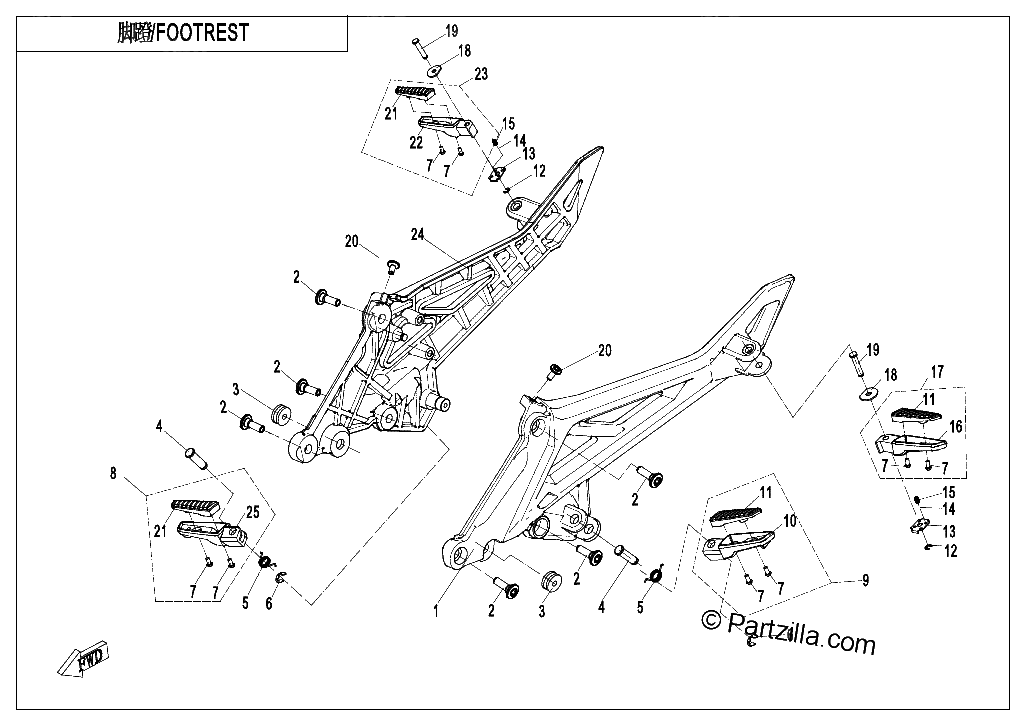

Diagrama de FOOTREST

Repuestos

#1
6NQA-140301-0BP00
LEFT HAND FOOTREST BRACKET MAUD SPIRIT BLACK
$160.99¢80 494
1
#2
6100-140103
BOLT M8X25
$6.89¢3 444
1
#3
A000-040302
RUBBER DAMPER
$3.44¢1 719
1
#4
6NQ0-140001
PIN Dia 12, FRONT FOOTREST
$5.74¢2 869
1
#5
A000-140103-20000
SPRING
$2.29¢1 144
1
#6
30802-00903
SPLIT WASHER
$1.25¢627
1
#7
30105-050014410
SCREW M5X14 (SILVER)
$1.25¢627
1
#8
6NQ0-140140-2BP00
RIGHT HAND FRONT FOOTREST, MAUD SPIRIT BLACK
$45.99¢22 994
1
#9
6NQ0-140130-2BP00
LEFT HAND FRONT FOOTREST, MAUD SPIRIT BLACK
$45.99¢22 994
1
#10
6KJ0-140131-2BP00
FRONT LEFT HAND FOOTREST SEAT MAUD SPIRIT BLACK
$25.29¢12 644
1
#11
6KMV-140132-M100
Left Hand RUBBER, FRONT STEP
$5.74¢2 869
1
#12
30802-00605
CIRCLIP
$1.25¢627
1
#13
A000-140104
LOCATING GASKET 1
$3.44¢1 719
1
#14
5190-037814
STEEL BALL
$1.14¢569
1
#15
5190-037813
SPRING
$2.29¢1 144
1
#16
6KJV-140151-8000-0BP00
, MAUD SPIRIT BLACK
$29.89¢14 944
1
#17
6KJ0-140150-2BP00
LEFT HAND REAR FOOTREST PEDAL MAUD SPIRIT BLACK
$60.94¢30 469
1
#18
A000-140106
LOCATING GASKET 2
$2.29¢1 144
1
#19
A000-140142
PIN SHAFT 8
$3.44¢1 719
1
#20
6KM-040702-8000
INNER HEX SCREW M6X12
$1.25¢627
1
#21
6KMV-140142-M100
RUBBER Assembly, FRONT STEP, Right Hand
$5.74¢2 869
1
#22
6KJV-140161-8000-0BP00
Right Hand REAR FOOTREST SEAT, MAUD SPIRIT BLACK
$29.89¢14 944
1
#23
6KJ0-140160-2BP00
RIGHT HAND REAR FOOTREST PEDAL MAUD SPIRIT BLACK
$40.24¢20 119
1
#24
6NQA-140310-0BP00
RIGHT HAND FOOTREST BRACKET ASSEMBLY MAUD SPIRIT BLACK
$160.99¢80 494
1
#25
6KJ0-140141-2BP00
FRONT RIGHT HAND FOOTREST SEAT MAUD SPIRIT BLACK
$25.29¢12 644
1
