REAR SUSPENSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

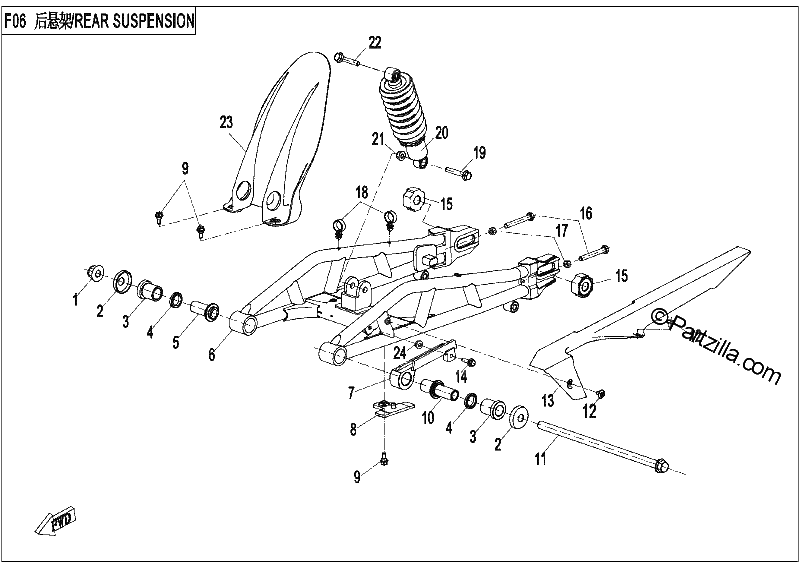

Diagrama de REAR SUSPENSION

Repuestos

#1
30204-143810
NUT M14X1.5
$2.29¢1 144
1
#2
6KMV-060010-8001
DUST BOOT COVER 1, REAR SWING ARM
$6.89¢3 444
1
#3
6100-060008
OUTER COLLAR, REAR SWINGARM
$28.74¢14 369
1
#4
6090-060005
ANTI DUST RING
$2.29¢1 144
1
#5
6KJ0-060004-00001
RIGHT HAND INNER BUSHING, REAR FORK
$13.79¢6 894
1
#7
6KJ0-060210-20000
CHAIN GUARD
No Disponible
1
#8
6KJ0-060001-10000
CHAIN GUARD 2
No Disponible
1
#9
8010-000004
BOLT M6X14
$1.25¢627
1
#10
6KJ0-060003-00001
LEFT HAND INNER BUSHING, REAR SWING ARM
$18.39¢9 194
1
#11
6KJ0-060007
SHAFT, REAR SWING ARM
No Disponible
1
#12
6KM-040702-8000
INNER HEX SCREW M6X12
$1.25¢627
1
#13
6KJ0-060005
CHAIN COVER
$5.74¢2 869
1
#14
30006-060022810
BOLT M6X22
$1.25¢627
1
#15
6KJ0-060002-1BB00
ADJUSTING BLOCK PLASTIC POWDER
$11.49¢5 744
1
#16
30004-080060810
BOLT M8X60
$2.29¢1 144
1
#17
30200-080810
NUT M8
$2.29¢1 144
1
#18
A000-050015
WIRE CLIP, FRONT BRAKE FLUID HOSE
$1.25¢627
1
#19
30006-102055810
BOLT M10X1.25X55
$2.29¢1 144
1
#20
6KJ0-060300-0V000
REAR SHOCK ABSORBER WHITE
No Disponible
1
#21
30204-102810
NUT M10X1.25
$1.25¢627
1
#22
30006-102045810
BOLT M10X1.25X45
$2.29¢1 144
1
#23
6KJ0-060006
REAR INNER FENDER
$8.04¢4 019
1
#24
30202-060110
NUT M6
No Disponible
1
