PLASTIC A 4

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

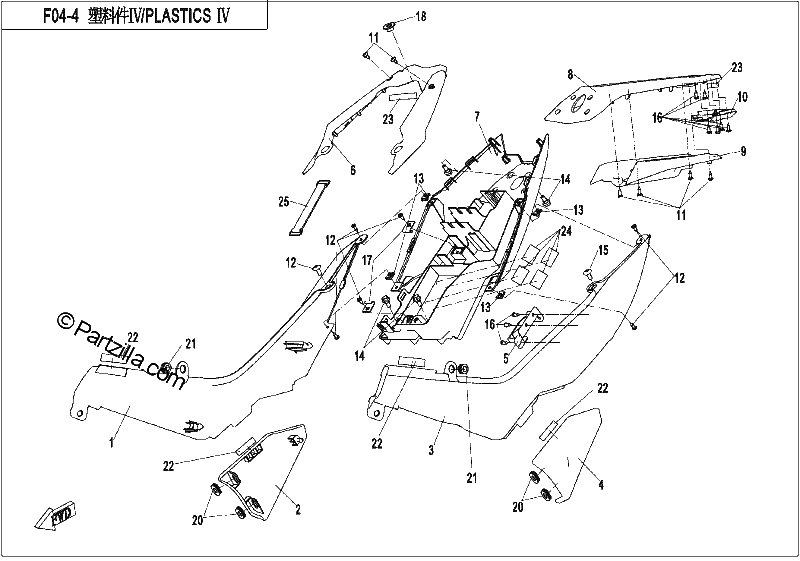

Diagrama de PLASTIC A 4

Repuestos

#1
6KJ0-041701-0BS00
RIGHT HAND PANEL NEBULA BLACK+TITANIUM GREY
No Disponible
1
#2
6KJ0-042001
DECO DAMPER,RIGHT HAND
$3.44¢1 719
1
#3
6KJ0-041601-0BS00
LEFT HAND PANEL
No Disponible
1
#4
6KJ0-041901
DECO DAMPER,LEFT HAND
$3.44¢1 719
1
#5
6KJ0-041801-00001
GUARD, SEAT LOCK
$4.59¢2 294
1
#6
6KJ0-042501-10000
REAR DECO PLATE
No Disponible
1
#7
6KJ0-042401-40000
REAR BASE PLATE
No Disponible
1
#8
6KJ0-042601
REAR FENDER
$5.74¢2 869
1
#9
6KJ0-042602
REINFORCEMENT PLATE, REAR FEND
$5.74¢2 869
1
#10
6KJ0-042701
HOLDER, REAR LICENCE LIGHT
$2.29¢1 144
1
#11
30110-421130010
SELF TAPPING SCREW ST4.2X13
$1.89¢943
1
#12
30110-481130010
SELF TAPPING SCREW ST4.8X13
No Disponible
1
#13
8080-000002
CLIP NUT ST4.8
$1.25¢627
1
#14
8010-000004
BOLT M6X14
$1.25¢627
1
#15
6KM-040702-8000
INNER HEX SCREW M6X12
$1.25¢627
1
#16
30110-420095010
SELF TAPPING SCREW ST4.2X9.5
$2.29¢1 144
1
#17
A000-030005
TIE BAND BRACKET, TOOLS KIT
$1.25¢627
1
#18
A000-040910
BUSHING, ARMREST
No Disponible
1
#20
6090-040403
CUSHION CASE
$1.25¢627
1
#21
6090-040302
RUBBER DAMPER
$1.25¢627
1
#22
9060-038129
SPONGE STRIP 1, HEAT INSULATOR
$3.44¢1 719
1
#23
8080-132002
SPONGE I, REAR SEAT
$3.44¢1 719
1
#24
9010-120008
SPONGE DAMPER, FUEL TANK
$3.44¢1 719
1
#25
1080-150700
TIE BAND
$6.89¢3 444
1
