COOLING SYSTEM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

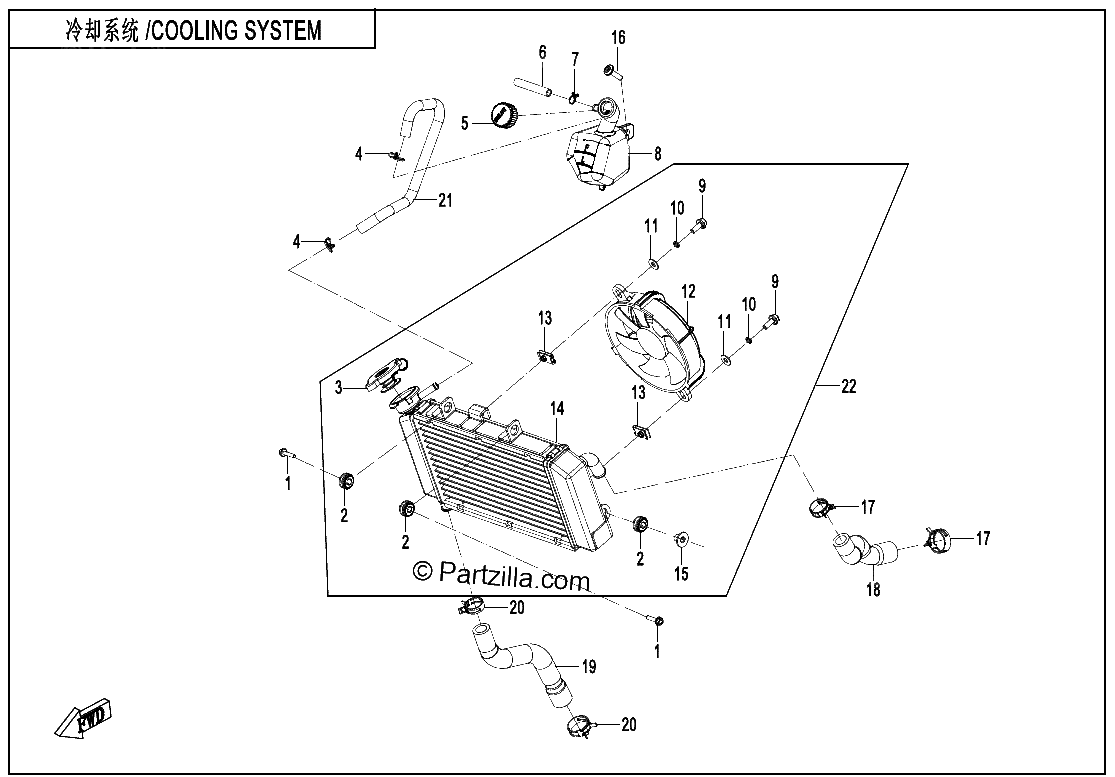

Diagrama de COOLING SYSTEM

Repuestos

#1
30006-060020870
BOLT M6x20
$2.49¢1 244
1
#2
6KM-181001-8001
DAMPING RUBBER MAT
$3.74¢1 869
1
#3
8010-180024
CAP, WATER FILLER
$21.24¢10 619
1
#4
30601-113010
CLAMP D13
$1.36¢681
1
#5
6KJ0-180302
CAP, RESERVOIR TANK
$2.49¢1 244
1
#6
6KMV-180001-B001
OVERFLOW HOSE, RESERVOIR
$1.36¢681
1
#7
30601-109510
CLAMP A9.5
No Disponible
1
#8
6KJ0-180310
RESERVIOR TANK ASSEMBLY
$31.24¢15 619
1
#9
30006-060016810
BOLT M6X16
$1.36¢681
1
#10
30306-060142
WASHER
$1.36¢681
1
#11
30303-060112
WASHER
$1.36¢681
1
#12
6KMV-181200-B000
FAN MOTOR ASSEMBLY
$137.49¢68 744
1
#13
8030-040800-00001
NUT CLIP M6
$2.49¢1 244
1
#14
6KMV-181100-B000
RADIATOR ASSEMBLY
$374.99¢187 494
1
#15
9060-180029
RUBBER TUBE, RADIATOR
$2.49¢1 244
1
#16
8010-000004
BOLT M6X14
$1.36¢681
1
#17
30601-223050
CLAMP
$3.74¢1 869
1
#18
6KMV-180001-C000
RADIATOR WATER INLET HOSE
$8.74¢4 369
1
#19
6KMV-180002-C000
RADIATOR WATER OUTLET HOSE
$9.99¢4 994
1
#20
30605-127060
CLAMP
$2.49¢1 244
1
#21
6KMV-180004-B000
CONNECTING PIPE, RESERVOIR TANK
$4.99¢2 494
1
#22
6KMV-181000-B001
RADIATOR FAN ASSEMBLY
$462.49¢231 244
1
