REAR SUSPENSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

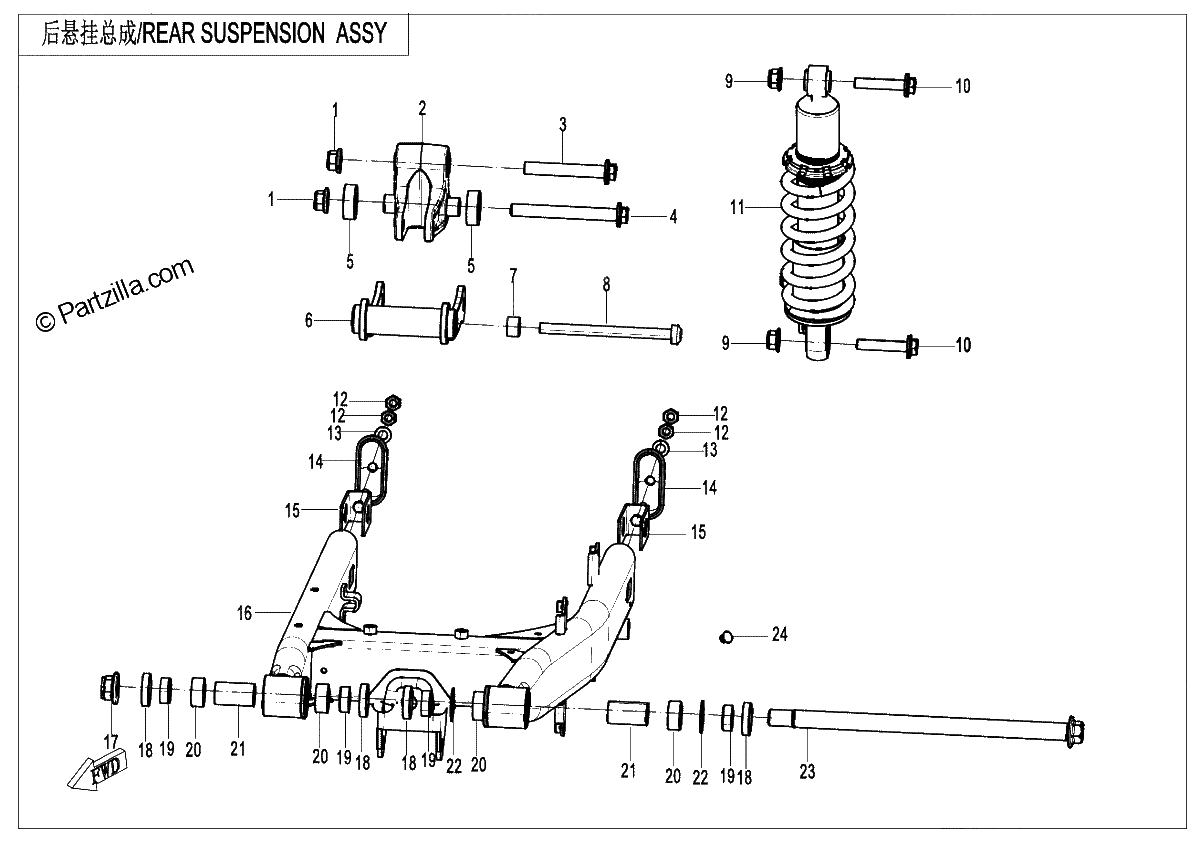

Diagrama de REAR SUSPENSION

Repuestos

#1
30204-122810
NUT M12X1.25
$1.25¢627
1
#2
6AQV-060550-1000
A SHAPE SWING ARM
$126.49¢63 244
1
#3
6AQV-060008-1002
BOLT M12X80 SWING ARM
$8.04¢4 019
1
#4
30024-122110110
BOLT
$6.89¢3 444
1
#5
6AQV-060504-1000
RETAINER
$3.44¢1 719
1
#6
6AQV-060600-1001
TIE ROD
$103.49¢51 744
1
#7
6AQV-060005-1000
SPACER, TIE ROD
$4.59¢2 294
1
#8
6AQV-060009-1002
BOLT TIE ROD M10X130
$8.04¢4 019
1
#9
30204-102810
NUT M10X1.25
$1.25¢627
1
#10
6AQV-060004-1002
BOLT M10X50 REAR SHOCK ABSORBER
$4.59¢2 294
1
#11
6AQV-060100-7100-M2
REAR SHOCK ABSORBER
$344.99¢172 494
1
#12
30200-080810
NUT M8
$2.29¢1 144
1
#13
30306-080112
WASHER
$1.25¢627
1
#14
6AQV-060021-7100-0BP00
GUARD, CHAIN ADJUSTER MAUD SPIRIT BLACK
$10.34¢5 169
1
#15
6AQV-060020-7100
CHAIN ADJUSTER ASSEMBLY
$6.89¢3 444
1
#16
6AQV-060300-7100-0BP00
REAR FORK MAUD SPIRIT BLACK
$298.99¢149 494
1
#17
6AQV-060006-1000-M1
NUT M16X1.5
$4.59¢2 294
1
#18
6WWV-060030-5000-10
OIL SEAL
$3.44¢1 719
1
#19
6WWV-060002-5000
BUSHING, REAR SWING ARM
$6.89¢3 444
1
#20
30403-02280
NEEDLE BEARING
$6.89¢3 444
1
#21
6WWV-060003-5000
LINER, REAR SWING ARM
$10.34¢5 169
1
#22
6WWV-060004-5000
WASHER, REAR SWING ARM
$3.44¢1 719
1
#23
6AQV-060001-7100
REAR FORK SHAFT
$34.49¢17 244
1
#24
6KM-100002-8000
RUBBER PLUG, CLUTCH LEVER
$1.25¢627
1
