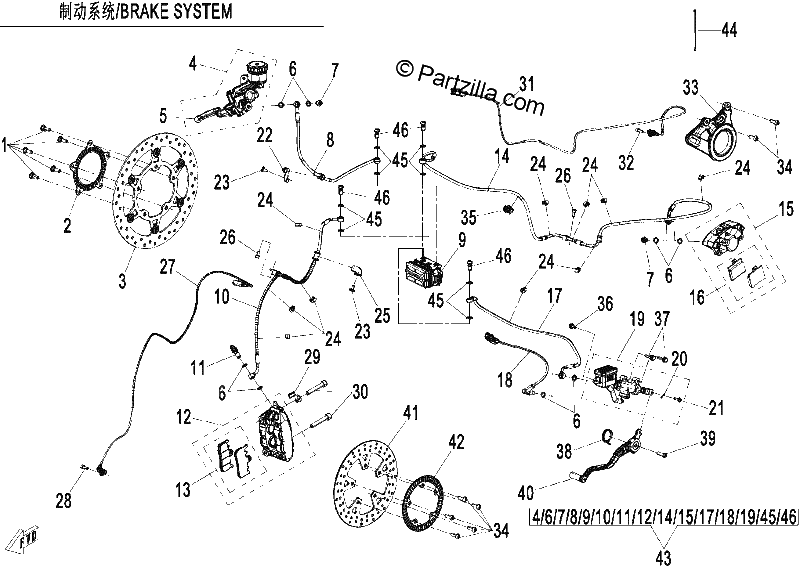

BRAKE SYSTEM 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
BOLT, FRONT BRAKE DISC
$1.36¢681
#2
FRONT RACK
$212.49¢106 244
#3
FRONT BRAKE DISC
$212.49¢106 244
#4
FRONT BRAKE MASTER CYLINDER ASSEMBLY
$249.99¢124 994
#5
BRAKE LEVER
$49.99¢24 994
#6
WASHER
$1.36¢681
#7
BOLT
$4.99¢2 494
#8
FLUID OUTLET HOSE, FRONT BRAKE
$74.99¢37 494
#9
ABS CONTROLLER
$1249.99¢624 994
#10
FRONT BRAKE FLUID INLET HOSE
$124.99¢62 494
#11
BOLT
$11.24¢5 619
#12
FRONT BRAKE CALIPER
$749.99¢374 994
#13
FRONT BRAKE PAD
$192.49¢96 244
#14
REAR BRAKE FLUID INTAKE PIPE
No Disponible
#15
REAR BRAKE CALIPER ASSEMBLY
No Disponible
#16
REAR BRAKE PAD ASSEMBLY
No Disponible
#17
REAR BRAKE FLUID OUTLET HOSE
$74.99¢37 494
#18
HYDRAULIC SWITCH ASSEMBLY
$29.99¢14 994
#19
MASTER CYLINDER, REAR BRAKE
$112.49¢56 244
#20
COTTER PIN
$4.99¢2 494
#21
PIN SHAFT
$3.74¢1 869
#22
WIRE CLIP, FLUID OUTLET HOSE
$3.74¢1 869
#23
INNER HEX SCREW M6X12
$1.36¢681
#24
CLIP, BRAKE HOSE
$2.49¢1 244
#25
WIRE CLIP, FLUID INLET HOSE
$3.74¢1 869
#26
SCREW M6X12
$1.36¢681
#27
BRAKE HOSE
$87.49¢43 744
#28
SCREW M6X16
$1.36¢681
#29
WIRE CLIP, FRONT SPEED SENSOR
$4.99¢2 494
#30
SCREW M10X60X1.25
$2.49¢1 244
#31
SPEED SENSOR, FRONT WHEEL
$87.49¢43 744
#32
BOLT M6X16
$1.36¢681
#33
MOUNTING PLATE,REAR CALIPER
No Disponible
#34
FIXED BOLT, BRAKE DISC
No Disponible
#35
WIRE CLIP 2, BRAKE FLUID HOSE
$3.74¢1 869
#36
INNER HEX SCREW M6X16
$1.36¢681
#37
BOLT M6X25
$3.74¢1 869
#38
SPRING
$7.49¢3 744
#39
SCREW M8X25
$2.49¢1 244
#41
REAR BRAKE DISC
No Disponible
#42
RING, REAR GEAR
No Disponible
#43
MAB HYDRAULIC BRAKE ASSEMBLY
No Disponible
#44
TIE BAND 5X250
$1.36¢681
#45
SEALING WASHER
$3.74¢1 869
#46
BOLT, FUEL PIPE
$8.74¢4 369
