PLASTICS 4

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

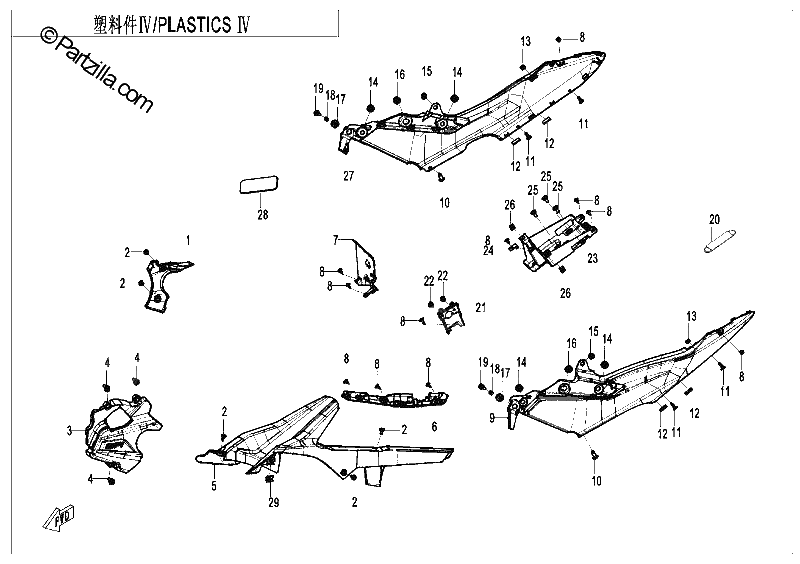

Diagrama de PLASTICS 4

Repuestos

#1
6AQV-041103-1000
Right Hand DECO COVER, FRAME
$6.24¢3 119
1
#2
6WWV-046502-5000
STEPPED SCREW M5
No Disponible
1
#3
6AQV-000102-1002
SMALL SPROCKET GUARD
$18.74¢9 369
1
#4
6WWV-047002-5000
INNER HEX SCREW M6X25
$1.36¢681
1
#5
6AQV-060401-3001
REAR FORK PANEL
No Disponible
1
#6
6AQV-060402-3001
BRAKE FLUID HOSE CLIP
No Disponible
1
#7
6AQV-041118-1002
HEAT INSULATOR, BATTERY
$7.49¢3 744
1
#8
30110-481130070
SELF TAPPING SCREW
$1.36¢681
1
#9
6AQV-040701-1002
LEFT HAND VEHICLE COVER
$15.11¢7 556
1
#10
9060-040310
PLASTIC CLIPS
$1.36¢681
1
#11
8080-041130
PLASTIC SCREW
$1.36¢681
1
#12
6KM-160420-8001
SPONGE MAT
$1.36¢681
1
#13
8080-000002
CLIP NUT ST4.8
$1.36¢681
1
#14
A000-040302
RUBBER DAMPER
$3.74¢1 869
1
#15
6WWV-046701-5000
INNER HEX SCREW M6X12
No Disponible
1
#16
8080-040064
DAMPER, FRONT FENDER
$1.36¢681
1
#17
6090-040302
RUBBER DAMPER
$1.36¢681
1
#18
6090-040303
BUSHING
$1.36¢681
1
#19
6WWV-046902-5000
INNER HEX SCREW M6X20
$1.36¢681
1
#20
6060-150700
TIE BAND, BATTERY
$6.24¢3 119
1
#21
6AQV-041102-1000
SEAT LOCK GUARD
$2.49¢1 244
1
#22
6WWV-047102-5000
INNER HEX SCREW M5X14
$1.36¢681
1
#23
6AQV-041101-1001
BATTERY BOX
$27.49¢13 744
1
#24
A000-030005
TIE BAND BRACKET, TOOLS KIT
$1.36¢681
1
#25
6WWV-046602-5000
INNER HEX STEPPED SCREW M6X14
$1.36¢681
1
#26
6KM-040081-8000-M1
NUT CLIP M5
$1.36¢681
1
#27
6AQV-040702-1002
RIGHT HAND VEHICLE COVER
$15.11¢7 556
1
#28
6AQV-041116-1000
FRAME STICKER
$6.24¢3 119
1
#29
8030-040800-00001
NUT CLIP M6
$2.49¢1 244
1
