LUBRICATION SYSTEM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

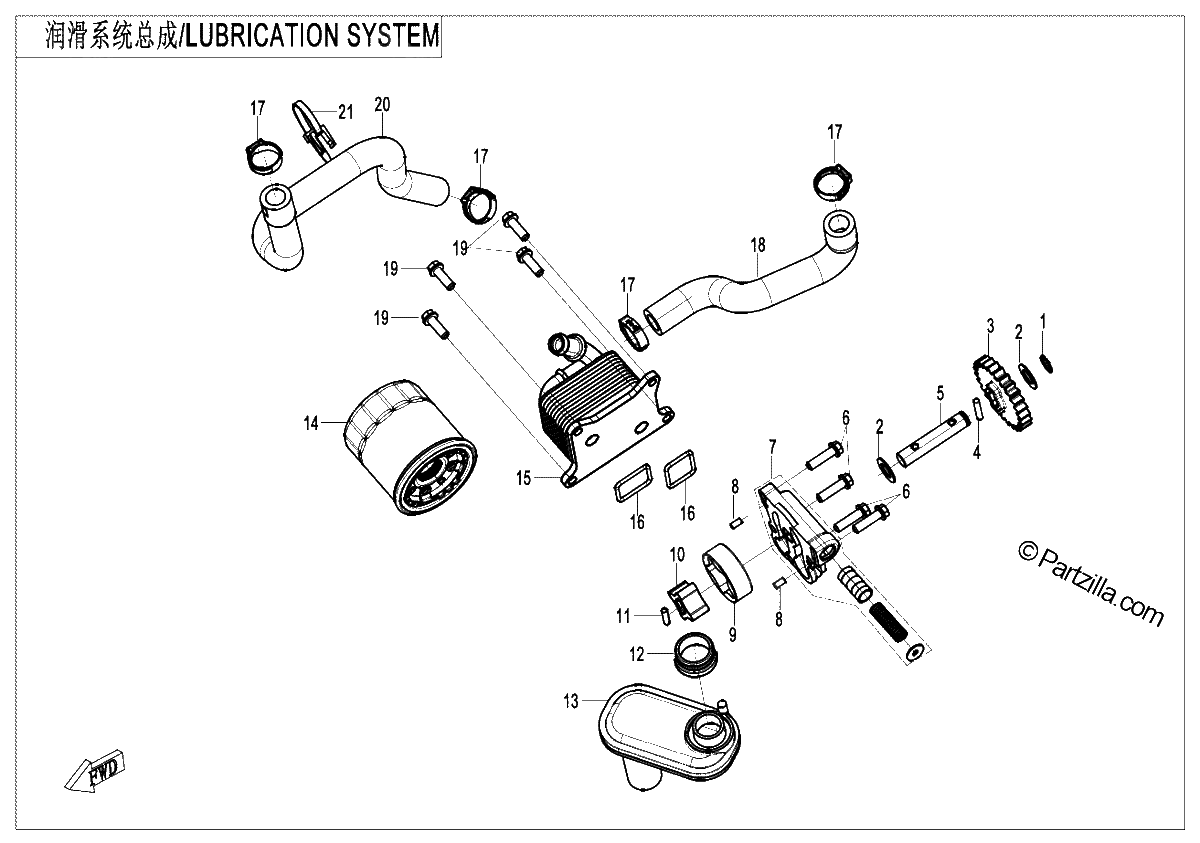

Diagrama de LUBRICATION SYSTEM

Repuestos

#1
30801-01100
RETAINER 11
$2.29¢1 144
1
#2
0SQV-071003-1000
WASHER 11X20X1
$5.74¢2 869
1
#3
0SQV-071001-1001
GEAR, OIL PUMP
$20.69¢10 344
1
#4
30406-00402
NEEDLE PIN P 4X21.8
$1.25¢627
1
#5
0SQV-071002-1000
SHAFT, OIL PUMP
$11.49¢5 744
1
#6
0010-022020-00002
BOLT M6x22
$1.25¢627
1
#7
0SQV-071101-10A0
COVER, OIL PUMP
$68.99¢34 494
1
#8
30406-00401
ROLLER NEEDLE P4X7.8
$1.25¢627
1
#9
0700-071003-00001
OUTER ROTOR, MAIN OIL PUMP
$5.74¢2 869
1
#10
0700-071004-00001
INNER ROTOR, MAIN OIL PUMP
$5.74¢2 869
1
#11
30406-00400
ROLLER NEEDLE P4X15.8
$5.74¢2 869
1
#12
0700-070101-00001
SEAL RING
$5.74¢2 869
1
#13
0SQV-073100-1000
FILTER
$39.09¢19 544
1
#14
0HTV-070200-7000
OIL FILTER
$17.24¢8 619
1
#15
0SQV-072100-1001
OIL COOLER
$137.99¢68 994
1
#16
0SQV-072003-1000
SEAL RING, OIL COOLER
$4.59¢2 294
1
#17
0SQV-028002-1000-M1
CLAMP Dia 22.5
$3.44¢1 719
1
#18
0SQV-072001-1000
WATER OUTLET PIPE, OIL COOLER
$9.19¢4 594
1
#19
0010-023008-00001
BOLT
$1.25¢627
1
#20
0SQV-072002-1000
WATER INLET PIPE, OIL COOLER
$11.49¢5 744
1
#21
0SQV-072200-1001-M1
TIE BAND
$2.29¢1 144
1
