REAR SUSPENSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

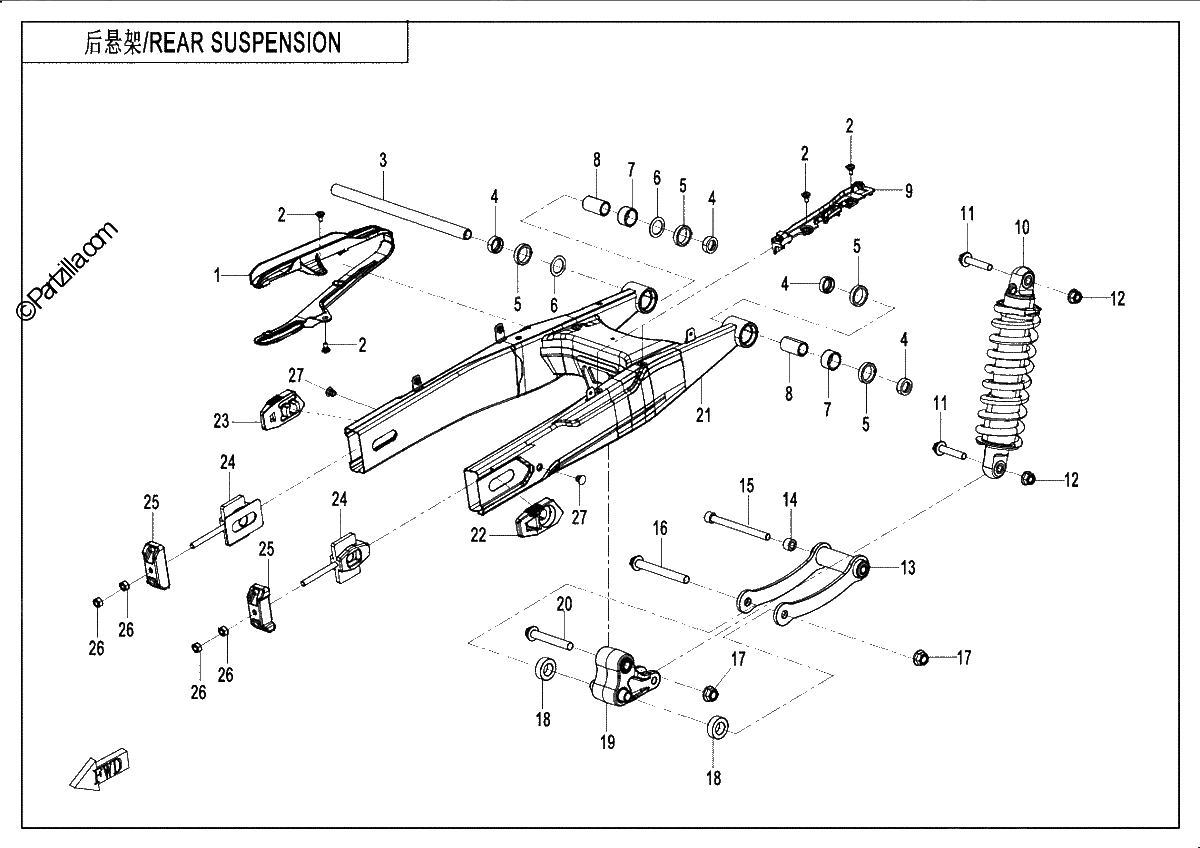

Diagrama de REAR SUSPENSION

Repuestos

#1
6AQV-060303-1000
CHAIN GUARD
$34.49¢17 244
1
#2
6WWV-046502-5000
STEPPED SCREW M5
No Disponible
1
#3
6AQV-060007-1000
REAR FORK SHAFT
$36.79¢18 394
1
#4
6WWV-060030-5000-10
OIL SEAL
$3.44¢1 719
1
#5
6WWV-060002-5000
BUSHING, REAR SWING ARM
$6.89¢3 444
1
#6
6WWV-060004-5000
WASHER, REAR SWING ARM
$3.44¢1 719
1
#7
30403-02280
NEEDLE BEARING
$6.89¢3 444
1
#8
6WWV-060003-5000
LINER, REAR SWING ARM
$10.34¢5 169
1
#9
6AQV-060304-1000
WIRE CLIP, BRAKE FLUID HOSE
$5.74¢2 869
1
#10
6AQV-060100-1002-M2
SHOCK ABSORBER
$321.99¢160 994
1
#11
6AQV-060004-1002
BOLT M10X50 REAR SHOCK ABSORBER
$4.59¢2 294
1
#12
30204-102810
NUT M10X1.25
$1.25¢627
1
#13
6AQV-060600-1001
TIE ROD
$103.49¢51 744
1
#14
6AQV-060005-1000
SPACER, TIE ROD
$4.59¢2 294
1
#15
6AQV-060009-1002
BOLT TIE ROD M10X130
$8.04¢4 019
1
#16
30024-122110110
BOLT
$6.89¢3 444
1
#17
30204-122810
NUT M12X1.25
$1.25¢627
1
#18
6AQV-060504-1000
RETAINER
$3.44¢1 719
1
#19
6AQV-060550-1000
A SHAPE SWING ARM
$126.49¢63 244
1
#20
6AQV-060008-1002
BOLT M12X80 SWING ARM
$8.04¢4 019
1
#21
6AQV-060300-1004-0BP00
REAR FORK
$379.49¢189 744
1
#22
6AQV-060045-1001-0VR00
Right Hand CHAIN ADJUSTING BLOCK, MERCURY SILVER
$13.79¢6 894
1
#23
6AQV-060044-1001-0VR00
Left Hand CHAIN ADJUSTING DECO BLOCK, MERCURY SILVER
$13.79¢6 894
1
#24
6AQV-060043-1000
CHAIN ADJUSTING BLOCK
$22.99¢11 494
1
#25
6AQV-060041-1000-0BP00
GUARD, CHAIN ADJUSTER, MAUD SPIRIT BLACK
$11.49¢5 744
1
#26
30200-080810
NUT M8
$2.29¢1 144
1
#27
6KM-100002-8000
RUBBER PLUG, CLUTCH LEVER
$1.25¢627
1
