TRANSMISSION SYSTEM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

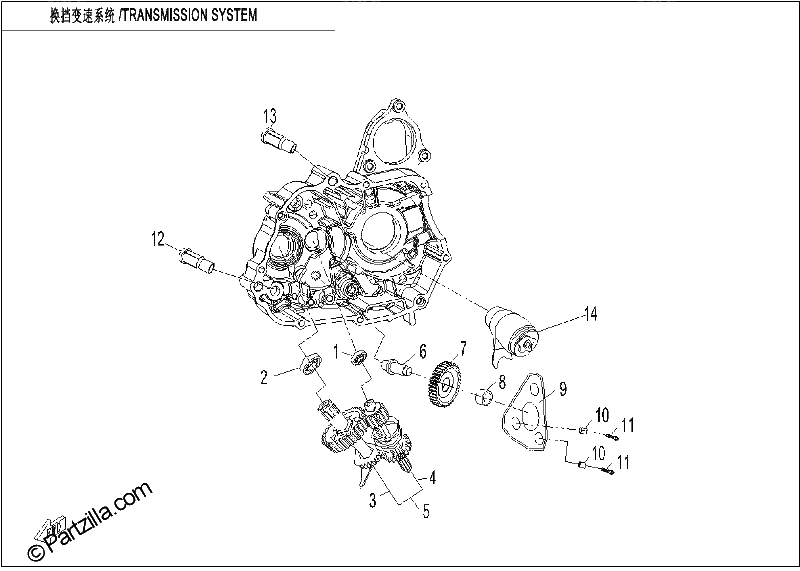

Diagrama de TRANSMISSION SYSTEM

Repuestos

#1
L-110290001-0001
DAMPER
$4.99¢2 494
1
#1
L-380630013-0001
BEARING 6001
$9.99¢4 994
1
#2
L-192190004-0001
STOPPER PLATE
$8.74¢4 369
1
#2
L-380630002-0001
BEARING 6203
$13.74¢6 869
1
#3
L-381160028-0001
TORSION SPRING
$3.74¢1 869
1
#3
L-191390078-0001
COUNTERSHAFT
$112.49¢56 244
1
#4
L-191250028-0001
MAIN SHAFT ASSEMBLY
$124.99¢62 494
1
#4
L-192310001-0001
GEARSHIFT BOLT
No Disponible
1
#5
L-500290076-0001
MAIN SHAFT, COUNTER SHAFT ASSEMBLY
$162.49¢81 244
1
#5
L-150290002-0001
OIL STRAINER
$3.74¢1 869
1
#6
L-191830001-0001
IDEL GEAR SHAFT
$14.99¢7 494
1
#6
L-380570004-0001
CIRCLIP D15.5X1.2
$1.36¢681
1
#7
L-191770002-0001
REVERSE DRIVE WHEEL
$37.49¢18 744
1
#7
L-190360016-0001
PRIMARY DRIVEN GEAR
$99.99¢49 994
1
#8
L-192320180-0001
GEARSHIFT ASSEMBLY
No Disponible
1
#8
L-380820624-0001
BUSHING
$6.24¢3 119
1
#9
L-191820001-0001
PRESS PLATE, IDEL GEAR
$6.24¢3 119
1
#9
L-500280117-0001
CLUTCH ASSEMBLY
No Disponible
1
#10
L-380600012-0001
DOWEL PIN
$2.49¢1 244
1
#10
L-191060012-0001
GEARSHIFT CAM ASSEMBLY
No Disponible
1
#11
L-381150032-0001
SPRING
$3.74¢1 869
1
#11
L-380140015-0006
HEX FLANGE BOLT M6X20
$2.49¢1 244
1
#12
L-150520002-0001
OIL TUBE
$3.74¢1 869
1
#13
L-380820093-0001
BUSHING
$3.74¢1 869
1
#13
L-110290004-0001
DAMPER
$4.99¢2 494
1
#14
L-150140001-0001
GASKET, OIL PUMP
$2.49¢1 244
1
#15
L-150010071-0001
OIL PUMP ASSEMBLY
$24.99¢12 494
1
#16
L-380200021-0001
BOLT M6X22
$1.36¢681
1
#17
L-380200015-0001
BOLT M6X16
$1.36¢681
1
