RADIATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

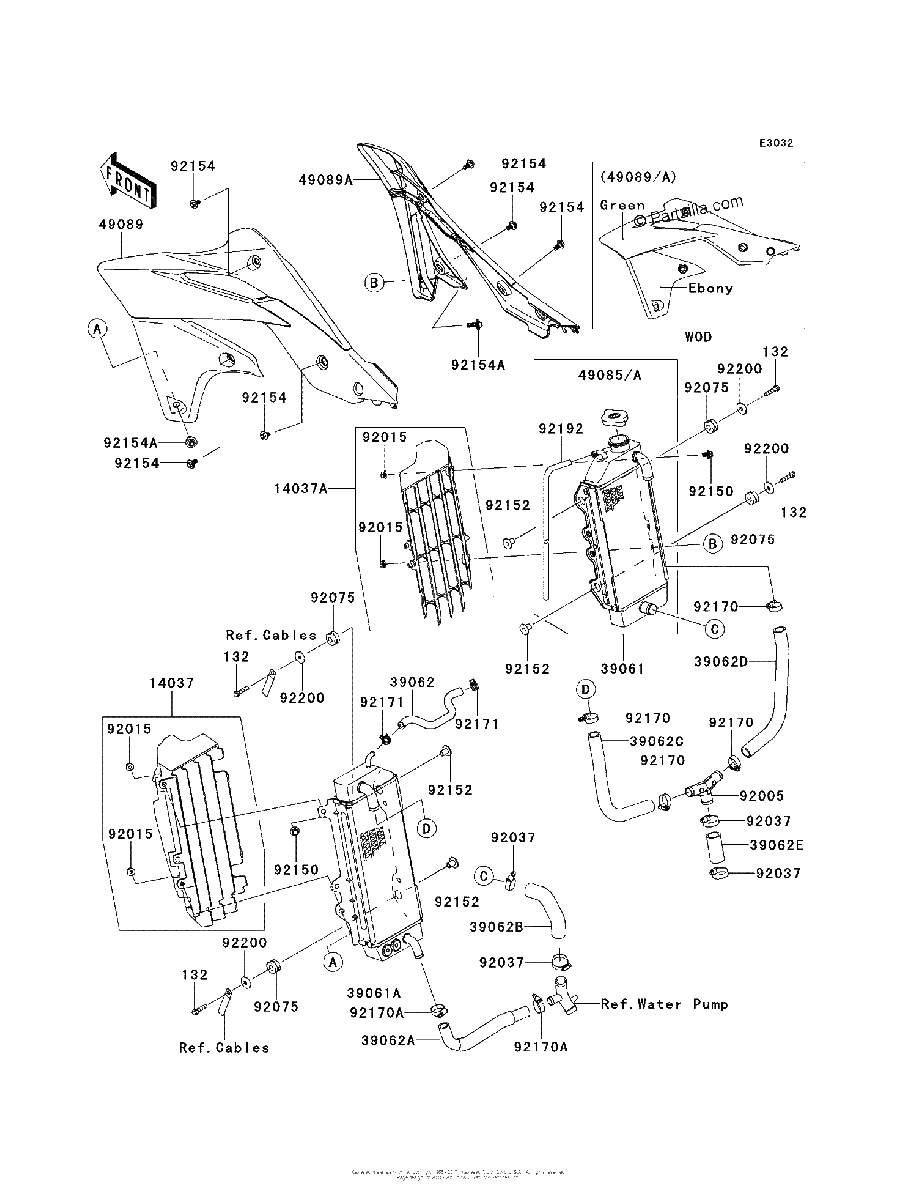

Diagrama de RADIATOR

Repuestos

#132
132BB0625
BOLT FLANGED SMALL,6X25
$2.37¢1 185
1
#14037
14037-0744-6C
SCREEN,Left Hand,EBONY
$26.57¢13 283
1
#14037A
14037-0745-6C
SCREEN,Right Hand,EBONY
$26.57¢13 283
1
#39061
39061-0168
RADIATOR Assembly,Right Hand
$483.57¢241 788
1
#39061A
39061-0190
RADIATOR Assembly,Left Hand
$453.54¢226 769
1
#39062
39062-0258
HOSE-COOLING,RAD.LH-RAD.RH
$22.69¢11 345
1
#39062E
39062-1348
HOSE COOLING
$25.89¢12 943
1
#39062D
39062-0295
HOSE COOLING,RAD Right Hand FIT.
$31.83¢15 916
1
#39062A
39062-0292
HOSE COOLING,RAD Left Hand W/P
$45.82¢22 908
1
#39062B
39062-0293
HOSE-COOLING,RAD.RH-W/P
$19.57¢9 786
1
#39062C
39062-0294
HOSE COOLING,RAD Left Hand FIT.
$31.83¢15 916
1
#49085
49085-1070
CAP-ASSY-PRESSURE,P1.1
$52.92¢26 462
1
#49085
49085-1073
CAP-ASSY-PRESSURE,P1.6 | (OPTION)
$55.76¢27 882
1
#49085A
49085-1073
CAP-ASSY-PRESSURE,P1.6 | (OPTION)
$55.76¢27 882
1
#49089A
49089-0833-25M
SHROUD ENGINE,Right Hand,GREEN/EBONY
$81.80¢40 900
1
#49089
49089-0832-25M
SHROUD ENGINE,Left Hand,GREEN/EBONY
$81.80¢40 900
1
#92005
92005-0101
FITTING
$36.02¢18 009
1
#92015
92015-1367
NUT,FLANGED,6MM
$3.02¢1 512
1
#92037
92037-1589
CLAMP,COOLING HOSE
$16.79¢8 395
1
#92075
92075-209
DAMPER
$4.28¢2 139
1
#92150
92150-1435
BOLT,6X12
$3.94¢1 972
1
#92152
92152-0666
COLLAR
$6.06¢3 030
1
#92154A
92154-0915
BOLT,FLANGED,6X20
$4.27¢2 133
1
#92154
92154-0546
BOLT,FLANGED,6X9
$3.40¢1 702
1
#92170A
92170-1283
CLAMP
$12.37¢6 187
1
#92170
92170-1077
CLAMP
$7.64¢3 818
1
#92171
92171-0372
CLAMP,CLIP,12.5MM
$2.92¢1 461
1
#92192
92192-0167
TUBE,6X9X640
$12.41¢6 204
1
#92200
92200-0271
WASHER,6.5X22X2.3
$2.92¢1 461
1
