MAIN FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

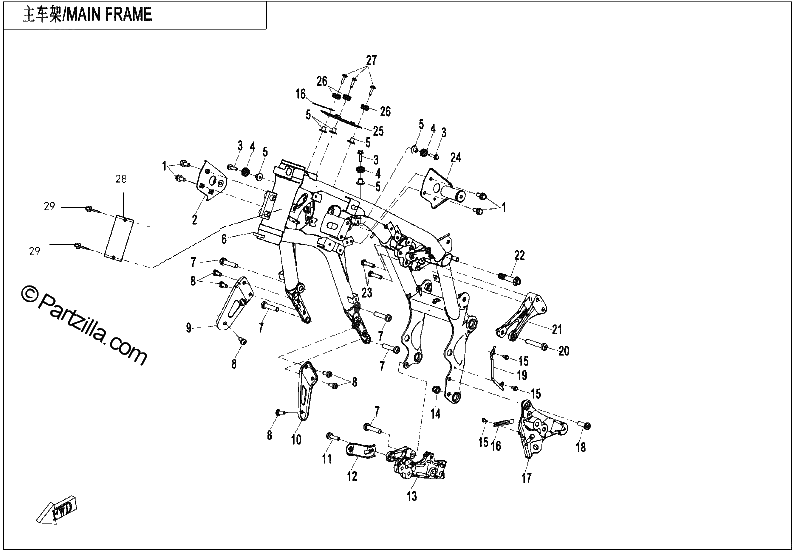

Diagrama de MAIN FRAME

Repuestos

#1
30006-080016810
BOLT M8X16
$1.25¢627
1
#2
6WWV-030040-5000
RIGHT HAND MIDDLE BRACKET, FRONT BUMPER
$28.74¢14 369
1
#3
30006-060022810
BOLT M6X22
$1.25¢627
1
#4
9060-180029
RUBBER TUBE, RADIATOR
$2.29¢1 144
1
#5
6KM-181001-8001
DAMPING RUBBER MAT
$3.44¢1 719
1
#7
6WWV-030011-5000
INNER HEX SCREW M10X45
$2.29¢1 144
1
#8
6WWV-030013-5000
INNER HEX SCREW M8X16
$2.29¢1 144
1
#9
6WWV-030060-5000
RIGHT HAND REAR BRACKET, BUMPER
$16.09¢8 044
1
#10
6WWV-030050-5000
LEFT HAND REAR BRACKET, BUMPER
$16.09¢8 044
1
#11
30006-080028810
BOLT M8X28
$1.25¢627
1
#12
6WWV-000120-5000
RIGHT HAND BRACKET ASSEMBLY, GUARD
$11.49¢5 744
1
#13
6WWV-030090-5000
RIGHT HAND BRACKET, MIDDLE SUPPORTER
$103.49¢51 744
1
#14
K-54310086100
SELF LOCKING NUT M10 CU WS=14
$5.75¢2 875
1
#15
30006-050012810
BOLT M5X12
$5.74¢2 869
1
#16
0180-014010
WIRE CLAMP
No Disponible
1
#17
6WWV-030080-5000
LEFT HAND BRACKET, MIDDLE SUPPORTER
$103.49¢51 744
1
#18
6WWV-030017-5000
INNER HEX SCREW M10X30
$2.29¢1 144
1
#19
6WWV-030003-5000
BRACKET, SIDE STAND SWITCH CABLE
$6.89¢3 444
1
#20
6L30-030091
BOLT M10X60
$4.59¢2 294
1
#21
6WWV-030009-5000
ENGINE HANGING BRACKET
$80.49¢40 244
1
#22
6WWV-030018-5000
BOLT M12X60
$4.59¢2 294
1
#23
30102-080050110
INNER HEX SCREW M8X50
No Disponible
1
#24
6WWV-030030-5000
LEFT HAND MIDDLE BRACKET, FRONT BUMPER
$29.89¢14 944
1
#25
6WWV-030001-5000
BRACKET, 6D SENSOR
$9.19¢4 594
1
#26
6WWV-030019-5000
RUBBER BUSHING
$1.25¢627
1
#27
6WWV-046902-5000
INNER HEX SCREW M6X20
$1.25¢627
1
#28
6WWV-190012-5301
VIN PLATE
No Disponible
1
