MAIN FRAME HIGH FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

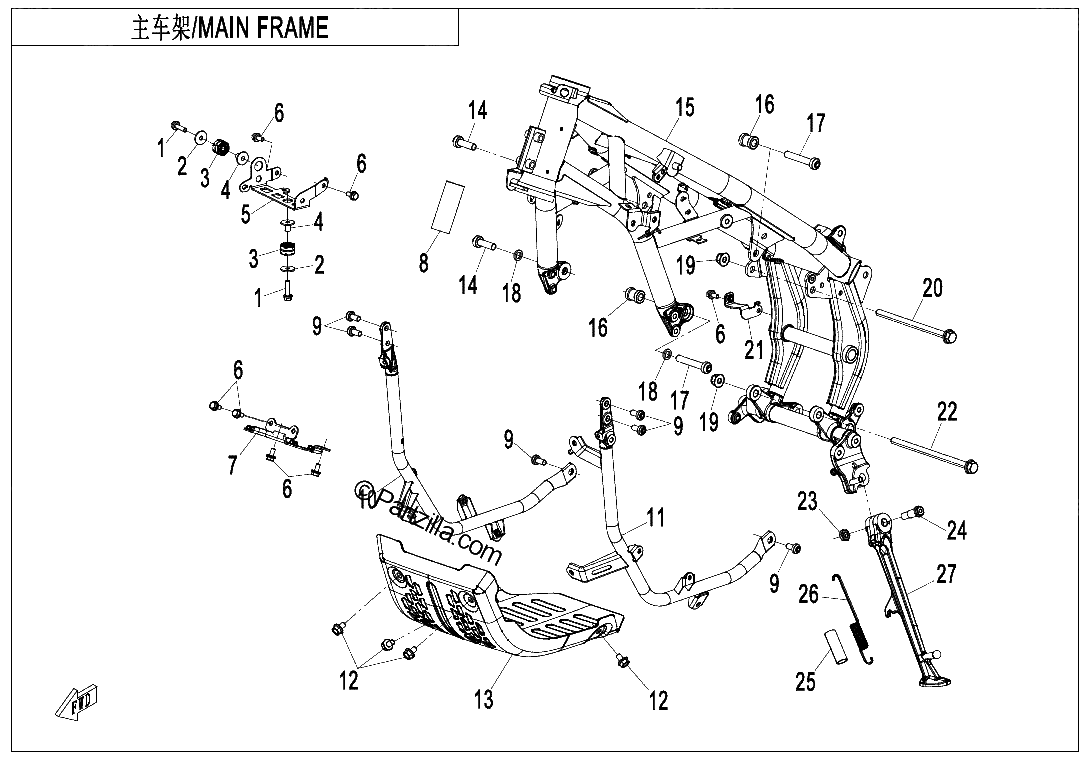

Diagrama de MAIN FRAME HIGH FENDER

Repuestos

#1
30006-060025810
BOLT M6X25
$3.44¢1 719
1
#2
30301-060412
WASHER M6
$2.29¢1 144
1
#3
6KWV-030003-1000
HEADLIGHT BRACKET SLEEVE
$2.29¢1 144
1
#4
5020-031002
RUBBER COLLAR
$1.25¢627
1
#5
6AQV-030002-6000
ABS BRACKET
$6.89¢3 444
1
#6
30006-060012870
BOLT M6X12
$0.69¢345
1
#7
6AQV-030010-6100
FENDER BRACKET
$9.19¢4 594
1
#9
6WWV-030013-5000
INNER HEX SCREW M8X16
$2.29¢1 144
1
#10
6AQV-030600-6000-0BP00
ENGINE Right Hand BUMPER MAUD SPIRIT BLACK
$55.19¢27 594
1
#11
6AQV-030500-6000-0BP00
ENGINE Left Hand BUMPER Assembly MAUD SPIRIT BLACK
$55.19¢27 594
1
#12
30006-080012810
BOLT M8X12
$1.25¢627
1
#13
6AQV-030003-6000
LOWER PANEL, ENGINE
$183.99¢91 994
1
#14
6AQV-030007-6000
SCREW
$3.44¢1 719
1
#15
6AQV-033000-6000-0BP00
FRONT FRAME Assembly MAUD SPIRIT BLACK
$919.99¢459 994
1
#16
6AQV-030004-1000
BUSHING, ENGINE
$4.59¢2 294
1
#17
6L30-030091
BOLT M10X60
$4.59¢2 294
1
#18
6WWV-030023-5000
NORDLOCK WASHER M10
$6.89¢3 444
1
#19
30204-102810
NUT M10X1.25
$1.25¢627
1
#20
30006-102155110
BOLT
$6.89¢3 444
1
#21
6AQV-030020-6001
BRAKE FLUID RESERVOIR BRACKET
$5.74¢2 869
1
#22
30001-102170110
BOLT M10X1.25X170
$8.04¢4 019
1
#23
30208-102810
NUT M10X1.25
$1.25¢627
1
#24
6GU-030008-6000
BOLT, SIDE BRACKET
$5.74¢2 869
1
#25
A000-030004
SPRING COLLAR, SIDE STAND
$3.44¢1 719
1
#26
A000-030210
SPRING, SIDE STAND
$4.59¢2 294
1
#27
6AQV-030006-6000
SIDE STAND
$91.99¢45 994
1
