ELECTRIC SYSTEM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

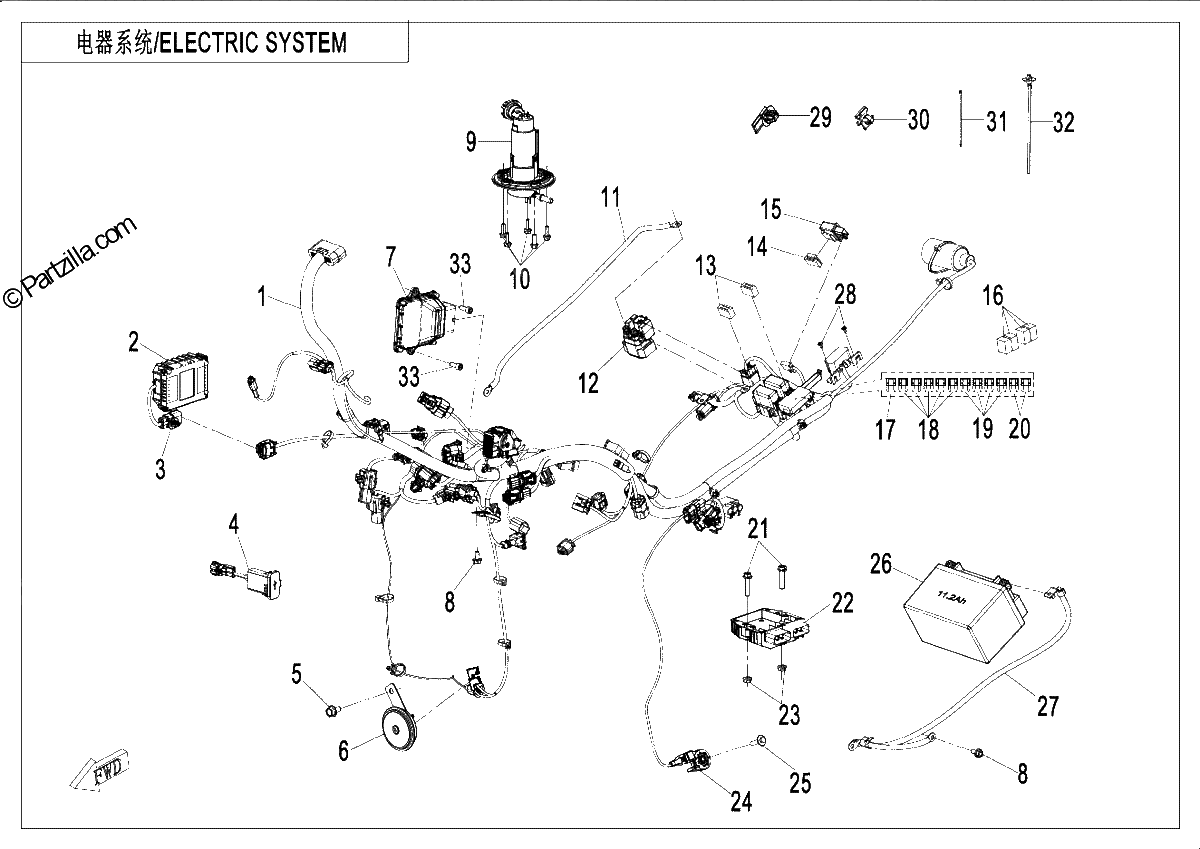

Diagrama de ELECTRIC SYSTEM

Repuestos

#1
6AQV-150100-6000
MAIN CABLE
$874.99¢437 494
1
#2
SN1V-691100-1301-11
T BOX NFA
$999.99¢499 994
1
#3
CFCV-CBC005-2000-M1
CLIP
$2.49¢1 244
1
#4
FA8V-150600-1000-10
USB OUTLET SOCKET ASSEMBLY
$49.99¢24 994
1
#5
30006-080016810
BOLT M8X16
$1.36¢681
1
#6
6FIV-150600-7000
HORN
$18.74¢9 369
1
#7
6AQV-001000-6300
ECU
$412.49¢206 244
1
#8
30006-060012870
BOLT M6X12
$0.75¢375
1
#9
6AQV-150900-4001
FUEL PUMP ASSEMBLY
$187.49¢93 744
1
#10
30006-050020810
BOLT M5X20
$1.36¢681
1
#11
6AQV-150310-1000
POSITIVE CABLE, STARTER MOTOR
$34.99¢17 494
1
#12
6AQV-150510-6000
RELAY, STARTER
$33.74¢16 869
1
#13
6100-150500
RUBBER BAND,FLASHER
$1.24¢619
1
#14
8010-150002
CUSHION FLASHER
$2.49¢1 244
1
#15
6KNV-161000-8300
FLASHER
$37.49¢18 744
1
#16
5BY4-150330
AUXILIARY RELAY
$7.55¢3 775
1
#17
806A-151302
FUSE 10A
$3.74¢1 869
1
#18
806A-151305
FUSE (15A)
$2.49¢1 244
1
#19
8010-151301
FUSE(5A)
$1.24¢619
1
#20
806A-151301
FUSE (7.5A)
$1.36¢681
1
#21
30006-060030810
BOLT M6X30
$1.36¢681
1
#22
6NTV-151000-3000
REGULATOR
$124.99¢62 494
1
#23
30204-060810
NUT M6
$1.36¢681
1
#24
6KMV-151500-3000
SIDE STAND SWITCH ASSEMBLY
$32.49¢16 244
1
#25
8010-090005
BOLT M6X16
$1.36¢681
1
#26
31021100
BATTERY DYNAVOLT MG14ZS C
$99.99¢49 994
1
#27
6AQV-150420-6000
NEGATIVE CABLE, BATTERY
$24.99¢12 494
1
#28
30110-421130010
SELF TAPPING SCREW ST4.2X13
$2.05¢1 025
1
#29
6GU-150001-6000-M1
CLASP
$2.49¢1 244
1
#30
6AQV-150001-1000-M1
CLIP
$1.36¢681
1
#31
8010-150003
TIE BAND 5X250
$1.36¢681
1
#32
801F-100101
TIE BAND
$1.36¢681
1
#33
30102-060016810
SCREW M6X16
$1.36¢681
1
