MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

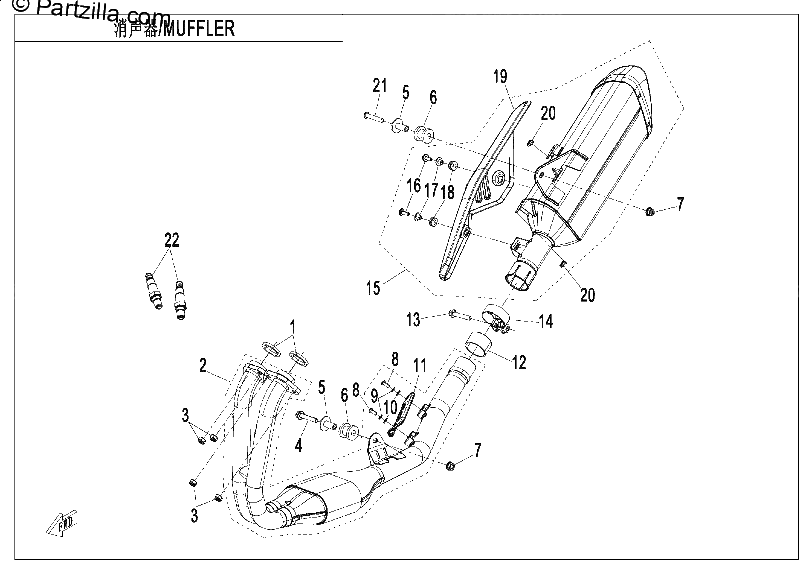

Diagrama de MUFFLER

Repuestos

#1
6090-020010
GASKET 42X33X5
$2.49¢1 244
1
#2
6AQV-021100-6001
EXHAUST PIPE ASSEMBLY
$624.99¢312 494
1
#3
6L30-020005
LOCK NUT
$8.74¢4 369
1
#4
30006-080045810
BOLT M8X45
$2.49¢1 244
1
#5
6KJ0-020004
BUSHING, MUFFLER
$4.99¢2 494
1
#6
6KJ0-020003
BUSHING,MUFFLER
$2.49¢1 244
1
#7
30204-080810
NUT M8
$1.36¢681
1
#8
6WWV-046702-5000
INNER HEX SCREW M6X12
$1.36¢681
1
#9
30303-060900
WASHER
No Disponible
1
#10
30306-060800
WASHER M6
$2.49¢1 244
1
#11
6AQV-021010-6000
MUFFLER GUARD 1
$33.74¢16 869
1
#12
6AQV-021400-1000
SEAL SLEEVE, GRAPHITE
$11.24¢5 619
1
#13
30006-080035810
BOLT M8X35
$1.36¢681
1
#14
6AQV-021500-1000
CLAMP KIT
$11.24¢5 619
1
#15
6AQV-021300-6000
MUFFLER BODY ASSEMBLY
$499.99¢249 994
1
#16
6WWV-046802-5000
INNER HEX SCREW M6X16
$1.36¢681
1
#17
6AQV-021002-1000
BUSHING
$2.49¢1 244
1
#18
6AQV-021003-1000
RUBBER BUSHING, GUARD
$2.49¢1 244
1
#19
6AQV-021020-6000
MUFFLER GUARD 2
$33.74¢16 869
1
#20
6GU-021005-6000
GUARD RUBBER SLEEVE
$3.74¢1 869
1
#21
6AQV-020022-6000
SCREW
$2.49¢1 244
1
#22
0HU0-176000
OXYGEN SENSOR
$237.49¢118 744
1
