COOLING SYSTEM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

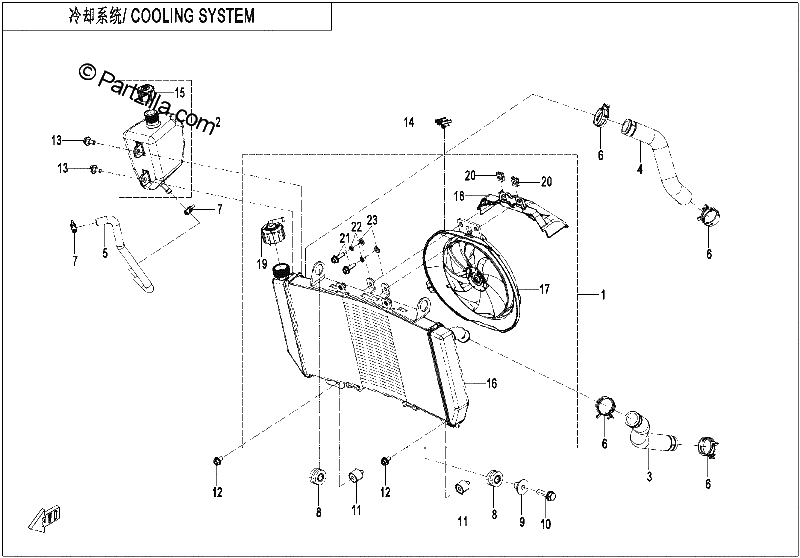

Diagrama de COOLING SYSTEM

Repuestos

#1
6AQV-181000-6000
FAN ASSEMBLY, RADIATOR
$562.49¢281 244
1
#2
6AQV-180100-6000
RESERVOIR ASSEMBLY
$27.49¢13 744
1
#3
6AQV-180001-6000
WATER INLET HOSE, RADIATOR
$11.24¢5 619
1
#4
6AQV-180002-6000
WATER OUTLET HOSE, RADIATOR
$9.99¢4 994
1
#5
6AQV-180003-6000
CONNECTING PIPE, RESERVOIR TANK
$4.99¢2 494
1
#6
30601-229060
CLAMP D29
$4.99¢2 494
1
#7
30601-212570
CLAMP D12.5
$2.49¢1 244
1
#8
A000-180005
DAMPER, RADIATOR
$4.99¢2 494
1
#9
A000-180010-20000
COLLAR, RADIATOR
$2.49¢1 244
1
#10
30006-080030870
BOLT M8X30
$2.49¢1 244
1
#11
6WWV-180009-5000
THREADED DAMPING RUBBER
No Disponible
1
#12
30006-060010810
BOLT M6X10
$1.36¢681
1
#13
8010-000004
BOLT M6X14
$1.36¢681
1
#14
CFCV-CAC002-2000-M1
CLIP
$2.49¢1 244
1
#15
6AQV-180110-4000
RESERVOIR CAP ASSEMBLY
$2.49¢1 244
1
#16
6AQV-181100-6000
RADIATOR ASSEMBLY
$374.99¢187 494
1
#17
6AQV-181200-6000
FAN MOTOR ASSEMBLY
$274.99¢137 494
1
#18
6AQV-181000-6000-21
AIR DEFLECTOR
$16.24¢8 119
1
#19
6GUV-181010-6001
FILLER CAP ASSEMBLY
$14.99¢7 494
1
#20
8030-040800-00001
NUT CLIP M6
$2.49¢1 244
1
#21
30006-060020810
BOLT M6X20
No Disponible
1
#22
30303-060010
WASHER M6
No Disponible
1
#23
30304-060410
WASHER
No Disponible
1
