REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

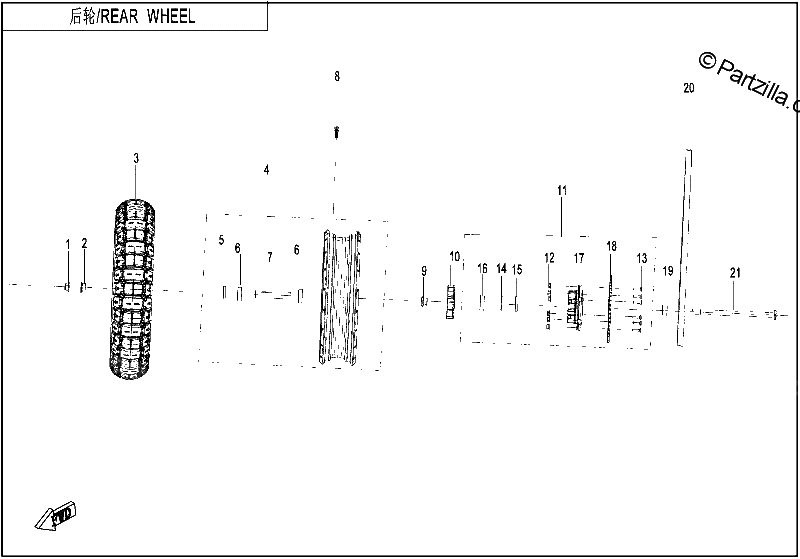

Diagrama de REAR WHEEL

Repuestos

#1
6AQV-060006-1000-M1
NUT M16X1.5
$4.59¢2 294
1
#2
6AQV-110004-1000
RIGHT HAND SHAFT BUSHING, REAR WHEEL
$6.89¢3 444
1
#3
30705-1804
TYRE
$195.49¢97 744
1
#4
6AQV-110100-6000-M1
REAR RIM ASSEMBLY
$1379.99¢689 994
1
#5
6AQV-110104-6000-20
OIL SEAL
$3.44¢1 719
1
#6
30400-01784
BEARING
$11.49¢5 744
1
#7
6AQV-110105-6000-M1
REAR WHEEL MIDDLE SPACER
$6.89¢3 444
1
#8
6WWV-070300-5000-M1
VALVE, INFLATION
$6.89¢3 444
1
#9
6AQV-110005-1001
SHAFT BUSHING, SPROCKET SEAT
$6.89¢3 444
1
#10
6L30-110003
DAMPER, SPROCKET
No Disponible
1
#11
6AQV-110300-6000
SEAT, SPROCKET
$172.49¢86 244
1
#12
30204-080810
NUT M8
$1.25¢627
1
#13
6AQV-110300-1000-22
BOLT
$3.44¢1 719
1
#14
30800-05205
CIRCLIP FOR HOLE 52
$3.44¢1 719
1
#15
6AQV-110300-1000-21
OIL SEAL
$4.59¢2 294
1
#16
6AQV-110300-1000-20
BEARING
$45.99¢22 994
1
#17
6AQV-110301-1001
SPROCKET SEAT
$65.54¢32 769
1
#18
6AQV-110005-6000
REAR SPROCKET
$54.04¢27 019
1
#19
6AQV-110003-4000
REAR WHEEL Left Hand SHAFT BUSHING
$5.74¢2 869
1
#20
3120913
CHAIN
$218.49¢109 244
1
#21
6AQV-110007-6000
SHAFT, REAR WHEEL
$45.99¢22 994
1
