REAR HANDRAIL FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

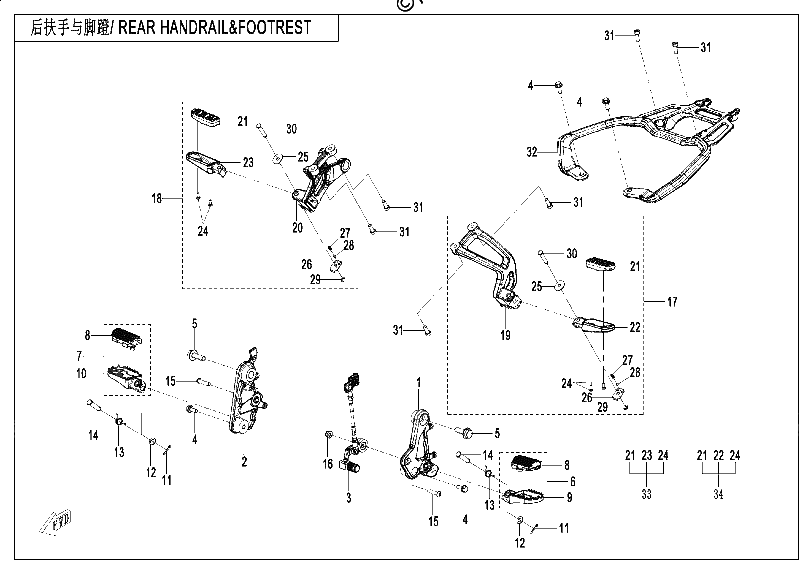

Diagrama de REAR HANDRAIL FOOTREST

Repuestos

#1
6AQV-140600-6000
BRACKET, LEFT HAND FRONT FOOTREST
$91.99¢45 994
1
#2
6AQV-140700-6000
BRACKET ASSEMBLY, RIGHT HAND FRONT FOOTREST
$103.49¢51 744
1
#3
6AQV-141000-6000
SHIFT LEVER CONNECTING KIT
$172.49¢86 244
1
#4
30006-080020810
BOLT M8X20
$1.25¢627
1
#5
0800-014009-00002
BOLT
$3.44¢1 719
1
#6
6AQV-140800-6000
LEFT HAND FRONT FOOTREST BOARD
$80.49¢40 244
1
#7
6AQV-140900-6000
RIGHT HAND FRONT FOOTREST BOARD
$80.49¢40 244
1
#8
6AQV-140810-6000
FRONT FOOTREST SEAT RUBBER
$6.89¢3 444
1
#9
6AQV-140820-6000
FRONT LEFT HAND FOOTREST SEAT
$45.99¢22 994
1
#10
6AQV-140920-6000
FRONT RIGHT HAND FOOTREST SEAT
$45.99¢22 994
1
#11
30903-0322210
COTTER PIN, 3.2X22
$1.25¢627
1
#12
30300-100112
WASHER M10
$1.25¢627
1
#13
6L3V-140103-4200
SPRING
$2.29¢1 144
1
#14
6WWV-140141-5000
PIN SHAFT
$2.29¢1 144
1
#15
30121-080035860
SCREW, M8X35
$1.14¢569
1
#16
30204-080810
NUT M8
$1.25¢627
1
#17
6AQV-140200-6000
LEFT HAND REAR FOOTREST
$183.99¢91 994
1
#18
6AQV-140300-6000
RIGHT HAND REAR FOOTREST
$183.99¢91 994
1
#19
6AQV-140210-6000
REAR LEFT HAND FOOTREST SEAT
$91.99¢45 994
1
#20
6AQV-140310-6000
REAR RIGHT HAND FOOTREST SEAT
$91.99¢45 994
1
#21
6GU-140080-6000
RUBBER, REAR FOOTREST BOARD
$10.34¢5 169
1
#24
30105-050014470
SCREW M5X14 (BLACK)
$1.25¢627
1
#25
A000-140106
LOCATING GASKET 2
$2.29¢1 144
1
#26
A000-140104
LOCATING GASKET 1
$3.44¢1 719
1
#27
5190-037813
SPRING
$2.29¢1 144
1
#28
5190-037814
STEEL BALL
$1.14¢569
1
#29
30802-00605
CIRCLIP
$1.25¢627
1
#30
A000-140142
PIN SHAFT 8
$3.44¢1 719
1
#31
30102-080020810
SCREW, M8X20
$1.25¢627
1
