UPPER LOWER CRANKCASE ASSY

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

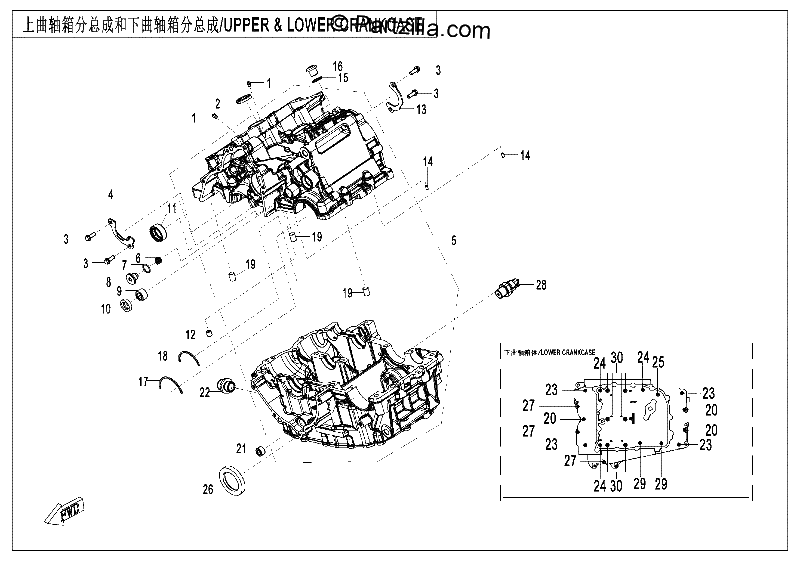

Diagrama de UPPER LOWER CRANKCASE ASSY

Repuestos

#1
0SQV-011102-1000
OIL NOZZLE Dia 0.7
$6.24¢3 119
1
#2
0SQV-011104-1000
SEAL RING, FILLER
$2.49¢1 244
1
#3
0010-090005-0010
BOLT M6X16
$1.36¢681
1
#4
0SQV-011105-1000
BEARING GUARD, Left Hand
$4.11¢2 056
1
#6
0SQV-060011-1000
BEARING SLEEVE
$16.24¢8 119
1
#7
0SQV-011107-1000
O RING 15X1.9
$1.36¢681
1
#8
0SQV-011108-1000
COVER, FORK SHAFT
$7.49¢3 744
1
#9
30403-01400
NEEDLE BEARING
$4.99¢2 494
1
#10
1F30-011600
OIL SEAL 14X24X6
No Disponible
1
#11
30403-02500
BEARING
$9.99¢4 994
1
#12
0SQV-011103-1000
RESTRICTION PLUG
$3.74¢1 869
1
#13
0SQV-011106-1000
BEARING GUARD, Right Hand
$3.74¢1 869
1
#14
30406-00401
ROLLER NEEDLE P4X7.8
$1.36¢681
1
#15
0180-011006
GASKET 14
$2.49¢1 244
1
#16
0180-021008-00001
BOLT
$3.74¢1 869
1
#17
0SQV-011004-1000
RETAINER,BEARING
$2.49¢1 244
1
#18
0SQV-011003-1000
RETAINER,BEARING
$2.49¢1 244
1
#19
30410-01000
ROLLER 10X14
$2.49¢1 244
1
#20
0SQV-012003-1000
BOLT M8X45
$2.49¢1 244
1
#21
0700-012105-00001
PLUG, MAIN OIL RAIL
$1.36¢681
1
#22
0700-012106-00002
BOLT, OIL FILTER
$1.36¢681
1
#23
0SQV-012002-1000
BOLT M8X65
$2.49¢1 244
1
#24
0SQV-012500-1000
BOLT KIT M8X105
$4.99¢2 494
1
#25
0SQV-012600-1000
BOLT KIT M8X55
$3.74¢1 869
1
#26
0SQV-010001-1000-M1
COUNTERSHAFT OIL SEAL
$14.99¢7 494
1
#27
0010-060012-0010
BOLT M6X30
$1.36¢681
1
#28
0SQV-012400-1000
OIL PRESSURE SWITCH
$24.99¢12 494
1
#29
0SQV-012700-1000
BOLT KIT M8X45
$3.74¢1 869
1
#30
0SQV-012200-1000
BOLT KIT M9X108
$4.99¢2 494
1
