ELECTRIC SYSTEM ABS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

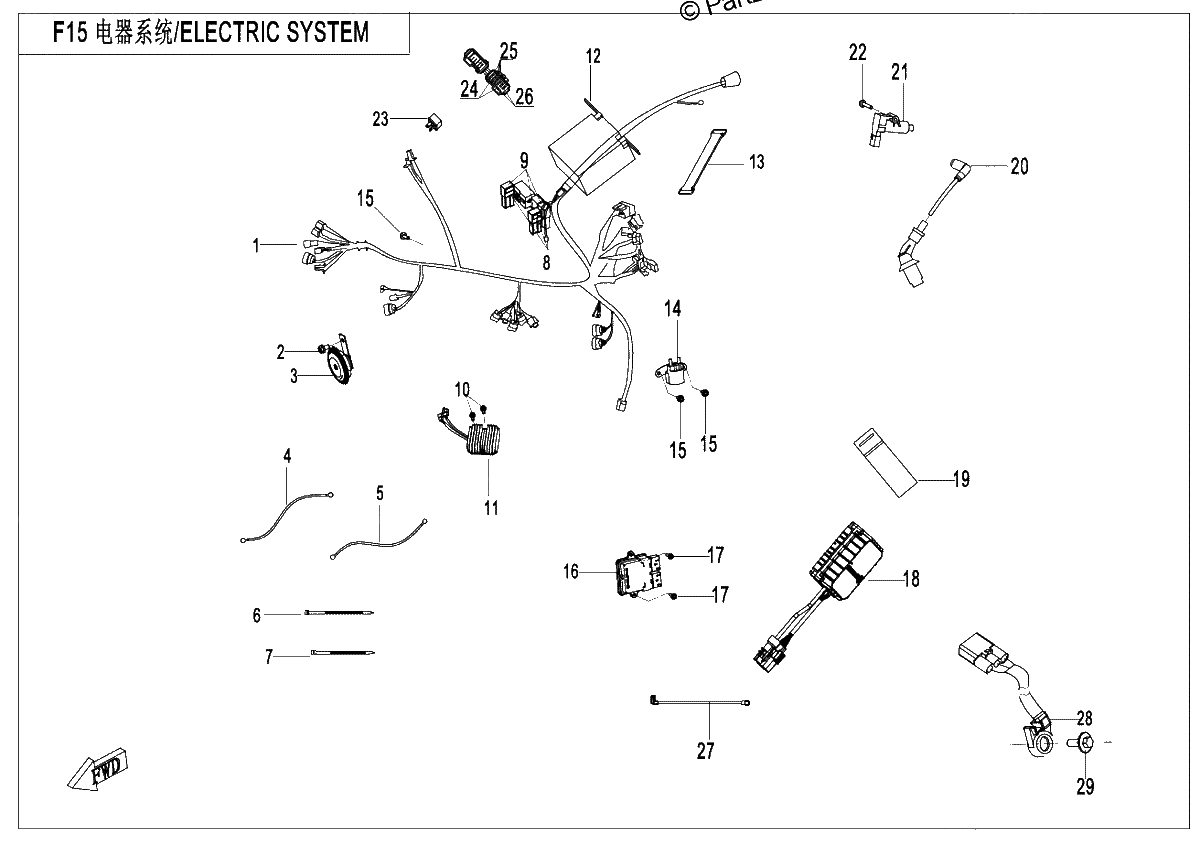

Diagrama de ELECTRIC SYSTEM ABS

Repuestos

#1
6FIV-150100-2000
MAIN CABLE
$574.99¢287 494
1
#2
6FIV-150600-7000
HORN
$17.24¢8 619
1
#3
30006-080014810
BOLT M8X14
$1.25¢627
1
#4
6FIV-150420-7100
BATTERY NEGATIVE CABLE
$14.94¢7 469
1
#5
6FIV-150176-7101
LICENSE PLATE CABLE
$19.54¢9 769
1
#6
8010-150003
TIE BAND 5X250
$1.25¢627
1
#7
801F-100101
TIE BAND
$1.25¢627
1
#8
9010-150002
AUXILIARY RELAY
$2.29¢1 144
1
#9
CFCV-150524-2000-M1
AUXILIARY RELAY (GREY RELAY)
$6.89¢3 444
1
#10
30006-060022810
BOLT M6X22
$1.25¢627
1
#11
6FI3-150700
REGULATOR
$48.29¢24 144
1
#12
6KJV-151600-8100-M1
BATTERY
$68.99¢34 494
1
#13
1080-150700
TIE BAND
$6.89¢3 444
1
#14
5270-150500
STARTER RELAY
$45.99¢22 994
1
#15
30006-060012870
BOLT M6X12
$0.69¢345
1
#16
6FIV-001000-7000
ECM ASSEMBLY
$344.99¢172 494
1
#17
30102-060012810
SCREW M6X12
$1.25¢627
1
#18
SN1V-691100-1301-11
T BOX NFA
$919.99¢459 994
1
#19
6KMV-150901-B002
RUBBER RING, T BOX
$2.29¢1 144
1
#20
6FIV-003500-7100
HIGH TENSION CABLE ASSEMBLY
$14.94¢7 469
1
#21
6FIV-003400-8000
IGNITION COIL
$57.49¢28 744
1
#22
30006-060035810
BOLT M6X35
$1.25¢627
1
#23
6090-150500
DIODE START
$5.74¢2 869
1
#24
8010-151301
FUSE(5A)
$1.14¢569
1
#25
806A-151305
FUSE (15A)
$2.29¢1 144
1
#26
806A-151308
30A FUSE
$1.60¢799
1
#27
6FIV-150310-7100
POSITIVE CABLE, STARTER MOTOR
$14.94¢7 469
1
#28
6KMV-151500-3000
SIDE STAND SWITCH ASSEMBLY
$29.89¢14 944
1
#29
8010-090005
BOLT M6X16
$1.25¢627
1
