FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

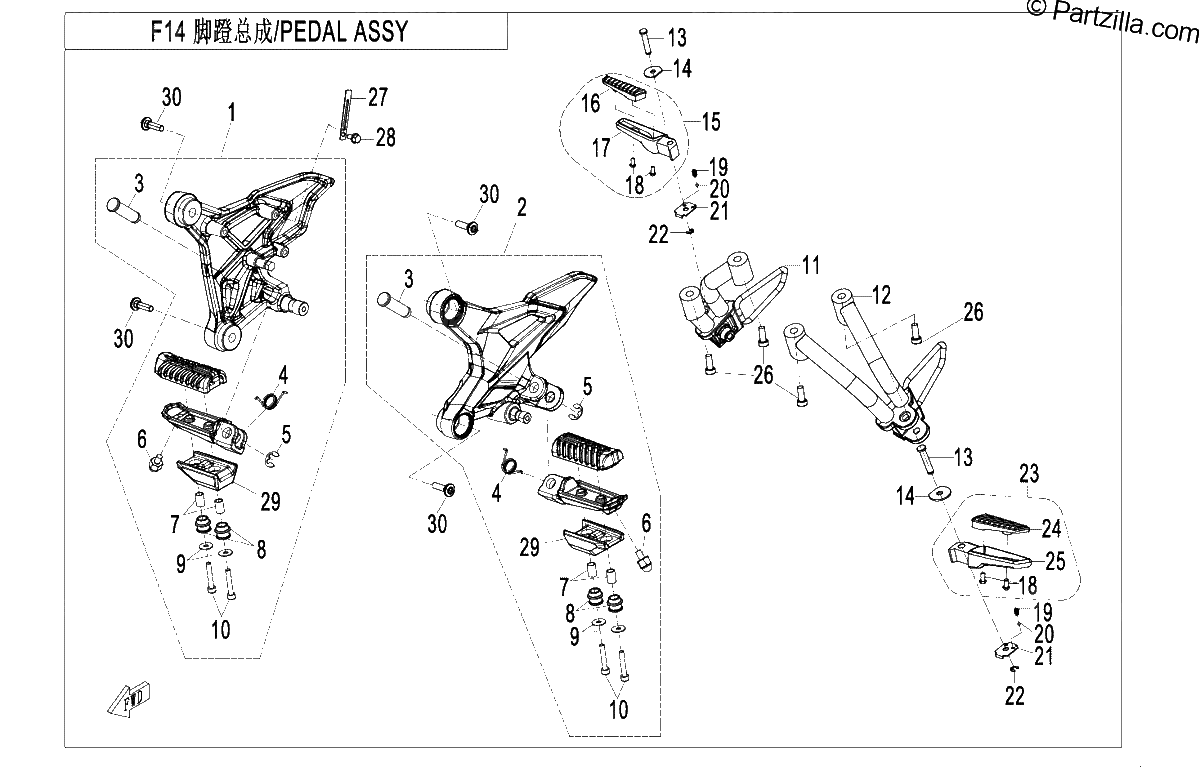

Diagrama de FOOTREST

Repuestos

#1
6KMV-144000-B001-0BP00
BRACKET Assembly, Right Hand FOOTREST
$149.99¢74 994
1
#2
6KMV-143000-B001-0BP00
Left Hand FRONT FOOTREST Assembly, MAUD SPIRIT BLACK
$149.99¢74 994
1
#3
6NQ0-140001
PIN Dia 12, FRONT FOOTREST
$6.24¢3 119
1
#4
A000-140103-20000
SPRING
$2.49¢1 244
1
#5
30802-00903
SPLIT WASHER
$1.36¢681
1
#6
6KM0-130123
LIMIT BOLT (SILVER)
$3.74¢1 869
1
#7
6NTG-200419
BUSHING
$6.24¢3 119
1
#8
6KN0-140002
CUSHION RUBBER
No Disponible
1
#9
30305-050112
WASHER 5
$1.36¢681
1
#10
30102-050030860
SCREW M5X30
$2.49¢1 244
1
#11
6KMV-140040-8100-0BP00
BRACKET, Left Hand REAR FOOREST, MAUD SPIRIT BLACK
No Disponible
1
#12
6KMV-140030-8100-0BP00
BRACKET, Left Hand REAR FOOREST, MAUD SPIRIT BLACK
$124.99¢62 494
1
#13
A000-140142
PIN SHAFT 8
$3.74¢1 869
1
#14
A000-140106
LOCATING GASKET 2
$2.49¢1 244
1
#15
6KJV-140160-8000-0BP00
Right Hand REAR FOOTREST Assembly
$39.99¢19 994
1
#16
6KMV-140142-M100
RUBBER Assembly, FRONT STEP, Right Hand
$6.24¢3 119
1
#17
6KJV-140161-8000-0BP00
Right Hand REAR FOOTREST SEAT, MAUD SPIRIT BLACK
$32.49¢16 244
1
#18
30105-050014470
SCREW M5X14 (BLACK)
$1.36¢681
1
#19
5190-037813
SPRING
$2.49¢1 244
1
#20
5190-037814
STEEL BALL
$1.24¢619
1
#21
A000-140104
LOCATING GASKET 1
$3.74¢1 869
1
#22
30802-00603
CIRCLIP 6
$1.36¢681
1
#23
6KJV-140150-8000-0BP00
Left Hand REAR FOOTREST Assembly
$39.99¢19 994
1
#24
6KMV-140132-M100
Left Hand RUBBER, FRONT STEP
$6.24¢3 119
1
#25
6KJV-140151-8000-0BP00
, MAUD SPIRIT BLACK
$32.49¢16 244
1
#26
30102-080030810
SCREW, M8X30
$1.36¢681
1
#27
0180-014010
WIRE CLAMP
No Disponible
1
#28
6WWV-046802-5000
INNER HEX SCREW M6X16
$1.36¢681
1
#29
6KM-140001-8001-0BP00
BALANCE BLOCK, FOOTREST, MAUD SPIRIT BLACK
$18.74¢9 369
1
#30
6KM0-140103
FLANGE BOLT, M8X25
$2.49¢1 244
1
