BRAKE SYSTEM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

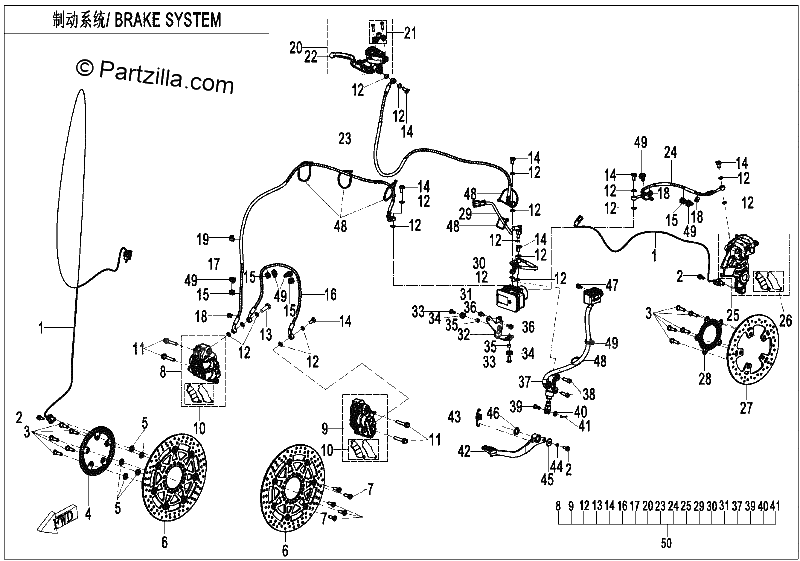

Diagrama de BRAKE SYSTEM

Repuestos

#1
6NTV-080004-4101-M1
SPEED SENSOR
$40.24¢20 119
1
#1
6KMV-080004-8500-M1
SPEED SENSOR
$91.99¢45 994
1
#2
30006-060016810
BOLT M6X16
$1.25¢627
1
#3
A000-080003-10000
BOLT, BRAKE DISC
$2.29¢1 144
1
#4
6NTG-080008-10000
FRONT GEAR RING
$20.69¢10 344
1
#5
A000-080008-10000
WASHER,FRONT RING
$1.25¢627
1
#6
6NTV-080010-1900
FRONT BRAKE DISC.
$114.99¢57 494
1
#7
A000-080001
SCREW
$1.25¢627
1
#8
A000-080170-2000
FRONT BRAKE CALIPER, RIGHT HAND
$459.99¢229 994
1
#9
A000-080150-2000
FRONT BRAKE CALIPER, LEFT HAND
$459.99¢229 994
1
#10
A000-0801C0
PAD, FRONT BRAKE
$137.99¢68 994
1
#11
30006-102045810
BOLT M10X1.25X45
$2.29¢1 144
1
#12
A000-080102-2000
WASHER
$2.29¢1 144
1
#13
A000-080103-2000
BANJO BOLT 2
$9.19¢4 594
1
#14
A000-080101-2000
BANJO BOLT
$9.19¢4 594
1
#15
6KM-080002-8000
RUBBER OIL HOSE CLIP
$2.29¢1 144
1
#16
A000-080140-30000
LOWER OIL HOSE ASSEMBLY, FRONT BRAKE
$68.99¢34 494
1
#17
6NTV-081020-4101-M1
FRONT BRAKE FLUID INTAKE PIPE
No Disponible
1
#18
6KJ0-080003-00001
CLIP, BRAKE HOSE
$2.29¢1 144
1
#19
EAEV-080006-1000
WIRE CLIP, BRAKE FLUID HOSE
$2.29¢1 144
1
#20
6NTV-081100-6200-M1
FRONT BRAKE CALIPER ASSEMBLY
$528.99¢264 494
1
#21
A000-0801M0
HALF COVER, FRONT BRAKE PUMP
$91.99¢45 994
1
#22
A000-0801J0
FRONT BRAKE LEVER
$91.99¢45 994
1
#23
6NTV-081010-4100-M1
FRONT BRAKE FLUID OUTLET HOSE
No Disponible
1
#24
6NTV-081040-4102-M1
FRONT BRAKE FLUID INTAKE HOSE
No Disponible
1
#25
6GUV-081060-5000
REAR BRAKE CALIPER ASSEMBLY
No Disponible
1
#26
6GUV-0810A0
BRAKE PAD ASSEMBLY
No Disponible
1
#27
6NQV-080006-2600
REAR BRAKE DISC
$80.49¢40 244
1
#28
6GU-090002-6001
REAR GEAR RING
$13.79¢6 894
1
#29
6GUV-081070-5000-M1
REAR BRAKE LIGHT SWITCH
$80.49¢40 244
1
#30
6NTV-081030-4102-M1
REAR BRAKE FLUID OUTLET HOSE
No Disponible
1
#31
6GUV-081300-5000-M2
MAB EXECUTION UNIT
No Disponible
1
#31
6GUV-081300-5000-M1
MAB EXECUTION UNIT
No Disponible
1
#32
6NQV-080910-6601
BRACKET, ABS CONTROLLER
No Disponible
1
#33
6KM-040702-8000
INNER HEX SCREW M6X12
$1.25¢627
1
#34
A000-050013
RUBBER CUSHION
$1.25¢627
1
#35
A000-050014
BUSHING
$2.29¢1 144
1
#36
30001-060014810
BOLT M6X14
$1.25¢627
1
#37
6NTJ-091200
MASTER CYLINDER Assembly, REAR BRAKE
$344.99¢172 494
1
#38
30102-080025810
SCREW, M8X25
$1.25¢627
1
#39
A000-080216-2000
PIN SHAFT
$5.74¢2 869
1
#40
A000-080234-2000
WASHER 8
$3.44¢1 719
1
#41
A000-080233-2000
PIN
$2.29¢1 144
1
#43
6NTG-080005
RETURN SPRING
$3.44¢1 719
1
#44
30303-060112
WASHER
$1.25¢627
1
#45
A000-080006-10000
WASHER 1
$2.29¢1 144
1
#46
A000-080007-10000
WASHER 2
$2.29¢1 144
1
#47
30006-060012870
BOLT M6X12
$0.69¢345
1
#48
8010-150003
TIE BAND 5X250
$1.25¢627
1
#49
A000-050015
WIRE CLIP, FRONT BRAKE FLUID HOSE
$1.25¢627
1
#50
6GUV-082000-5001-M1
ABS BRAKE ASSEMBLY
No Disponible
1
#50
6GUV-081000-5001-M1
ABS BRAKE ASSEMBLY
No Disponible
1
