ELECTRIC SYSTEM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

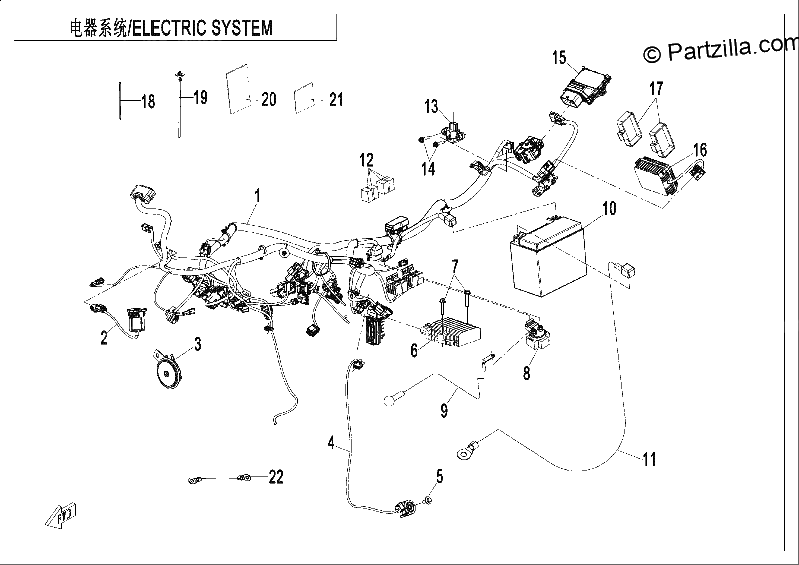

Diagrama de ELECTRIC SYSTEM

Repuestos

#1
6GUV-150100-5000
MAIN CABLE
No Disponible
1
#1
6GUV-150100-5000-10
MAIN CABLE
No Disponible
1
#2
FA8V-150600-1000-10
USB OUTLET SOCKET ASSEMBLY
$45.99¢22 994
1
#3
6FIV-150600-7000
HORN
$17.24¢8 619
1
#4
6KMV-151500-3000
SIDE STAND SWITCH ASSEMBLY
$29.89¢14 944
1
#5
8010-090005
BOLT M6X16
$1.25¢627
1
#6
6NTV-151000-3000
REGULATOR
$114.99¢57 494
1
#7
30006-060030810
BOLT M6X30
$1.25¢627
1
#8
9CR6-150310
STARTER RELAY
$45.99¢22 994
1
#9
6NTV-150310-2700
POSITIVE CABLE, STARTER MOTOR
$20.69¢10 344
1
#10
31021200
BATTERY DYNAVOLT MG12 BS C
$103.49¢51 744
1
#11
6NTV-150420-2700
NEGATIVE CABLE, BATTERY
No Disponible
1
#12
CFCV-150524-2000-M1
AUXILIARY RELAY (GREY RELAY)
$6.89¢3 444
1
#13
6KJ0-150600
SENSOR, ROLL OVER
$34.49¢17 244
1
#14
30006-050020810
BOLT M5X20
$1.25¢627
1
#15
6GUV-001000-5200
ECU ASSEMBLY
No Disponible
1
#16
SN1V-691100-1401-11
T BOX NFA
No Disponible
1
#16
6GUV-151800-6902-M1
T BOX
No Disponible
1
#16
SN1V-691100-1601-11
T BOX NFA
No Disponible
1
#16
SN1V-691100-1501-11
T BOX NFA
No Disponible
1
#16
SN1V-691100-1500-11
T BOX
No Disponible
1
#16
6GUV-151800-7302-M1
T BOX
No Disponible
1
#16
SN1V-691100-1201-11
T BOX AUST ONLY
No Disponible
1
#16
SN1V-691100-1301-11
T BOX NFA
$919.99¢459 994
1
#17
6KMV-150901-B002
RUBBER RING, T BOX
$2.29¢1 144
1
#18
8010-150003
TIE BAND 5X250
$1.25¢627
1
#19
801F-100101
TIE BAND
$1.25¢627
1
#20
5270-150001
FOAM (LEFT HAND & RIGHT HAND), BATTERY
$1.14¢569
1
#21
5270-150002
FOAM (FRONT & REAR), BATTERY
$1.25¢627
1
#22
6NTV-150430-2700
GROUND CABLE, FRAME
$45.99¢22 994
1
