FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

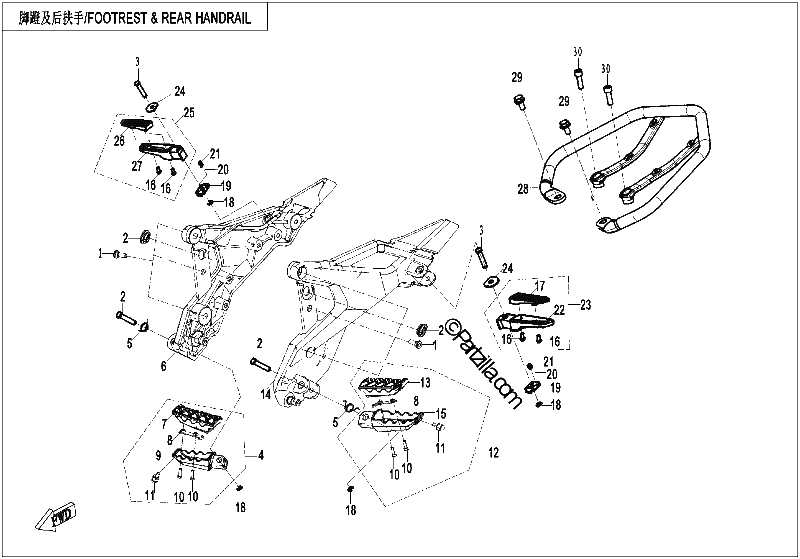

Diagrama de FOOTREST

Repuestos

#1
6KM0-140103
FLANGE BOLT, M8X25
$2.29¢1 144
1
#2
8080-040064
DAMPER, FRONT FENDER
$1.25¢627
1
#3
A000-140142
PIN SHAFT 8
$3.44¢1 719
1
#4
6NT1-140130-2VX00
RIGHT HAND REAR FOOTREST ASSEMBLY ELECTRO SILVER
No Disponible
1
#5
6NT1-140103
TORSIONAL SPRING
$2.29¢1 144
1
#7
6NT1-140132-00001
FOOT PEDAL RUBBER
$8.04¢4 019
1
#8
6NT1-140150
CONNECTING PLATE, FOOTREST
$9.19¢4 594
1
#9
6NT1-140131-2VX00
FRONT RIGHT HAND FOOTREST SEAT MERCURY SILVER
No Disponible
1
#10
30105-050016410
SCREW M5X16
$1.25¢627
1
#11
A010-140123
LIMIT BOLT
No Disponible
1
#12
6NT1-140120-2VX00
LEFT HAND REAR FOOTREST ASSEMBLY ELECTRO SILVER
No Disponible
1
#13
6NT1-140122-00001
FOOT PEDAL RUBBER
$8.04¢4 019
1
#15
6NT1-140121-2VX00
FRONT LEFT HAND FOOTREST SEAT MERCURY SILVER
No Disponible
1
#16
30105-050012410
SCREW M5X12
$1.25¢627
1
#17
6KJ0-140132
RUBBER, LEFT HAND FOOT PEDAL
$8.04¢4 019
1
#18
30802-00605
CIRCLIP
$1.25¢627
1
#19
A000-140104
LOCATING GASKET 1
$3.44¢1 719
1
#20
5190-037814
STEEL BALL
$1.14¢569
1
#21
5190-037813
SPRING
$2.29¢1 144
1
#24
A000-140106
LOCATING GASKET 2
$2.29¢1 144
1
#26
6KJ0-140142
RUBBER ASSEMBLY,FRONT STEP, RIGHT HAND
$11.49¢5 744
1
#29
30006-080016870
BOLT M8X16
$1.25¢627
1
#30
30102-080025810
SCREW, M8X25
$1.25¢627
1
