CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

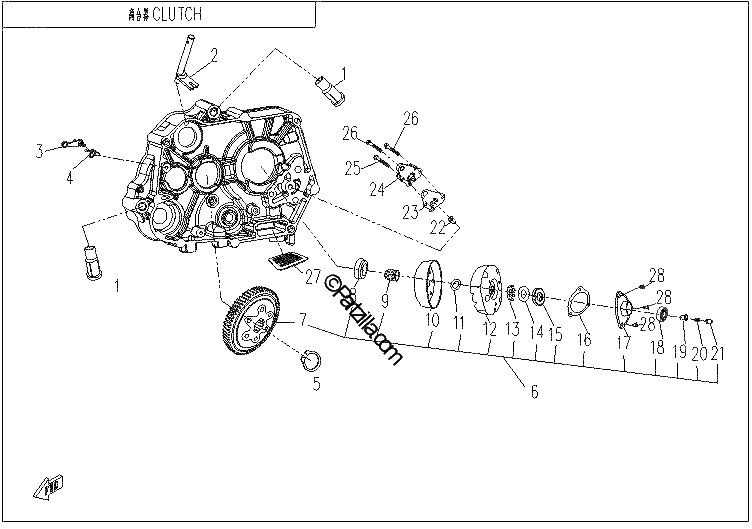

Diagrama de CLUTCH

Repuestos

#1
L-110290001-0001
DAMPER
$4.99¢2 494
1
#2
L-192330097-0001
GEARSHIFT SHAFT
$74.99¢37 494
1
#2
L-192330089-0001
GEARSHIFT SHAFT
$56.24¢28 119
1
#3
L-192190004-0001
STOPPER PLATE
$8.74¢4 369
1
#4
L-381160028-0001
TORSION SPRING
$3.74¢1 869
1
#5
L-380570004-0001
CIRCLIP D15.5X1.2
$1.36¢681
1
#6
L-500280450-0001
CLUTCH ASSEMBLY
$124.99¢62 494
1
#7
L-190360016-0001
PRIMARY DRIVEN GEAR
$99.99¢49 994
1
#8
L-380820076-0001
BUSHING
$4.99¢2 494
1
#9
L-380820077-0001
BUSHING
$7.49¢3 744
1
#10
L-190100018-0001
PRIMARY CLUTCH HOUSING
$33.74¢16 869
1
#11
L-380451541-0001
PLAIN WASHER M17X32X2
No Disponible
1
#12
L-190180021-0001
PRIMARY CLUTCH SHOE ASSEMBLY
$74.99¢37 494
1
#13
L-194090003-0001
NUT WASHER, CLUTCH
$2.49¢1 244
1
#14
L-380480002-0001
WASHER
$1.36¢681
1
#15
L-380810006-0001
NUT
$4.99¢2 494
1
#16
L-190310008-0001
CLUTCH COVER GASKET
$3.74¢1 869
1
#17
L-190300009-0001
PRIMARY CLUTCH COVER
$6.24¢3 119
1
#18
L-380630024-0001
BEARING
$9.99¢4 994
1
#19
L-150430002-0001
OIL TUBE
$4.99¢2 494
1
#20
L-381150032-0001
SPRING
$3.74¢1 869
1
#21
L-150520002-0001
OIL TUBE
$3.74¢1 869
1
#22
L-380820093-0001
BUSHING
$3.74¢1 869
1
#23
L-150140001-0001
GASKET, OIL PUMP
$2.49¢1 244
1
#24
L-150010071-0001
OIL PUMP ASSEMBLY
$24.99¢12 494
1
#25
L-380200021-0001
BOLT M6X22
$1.36¢681
1
#26
L-380200015-0001
BOLT M6X16
$1.36¢681
1
#27
L-150290002-0001
OIL STRAINER
$3.74¢1 869
1
#28
L-380200014-0004
SCREW
$1.36¢681
1
