REAR AXLE 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

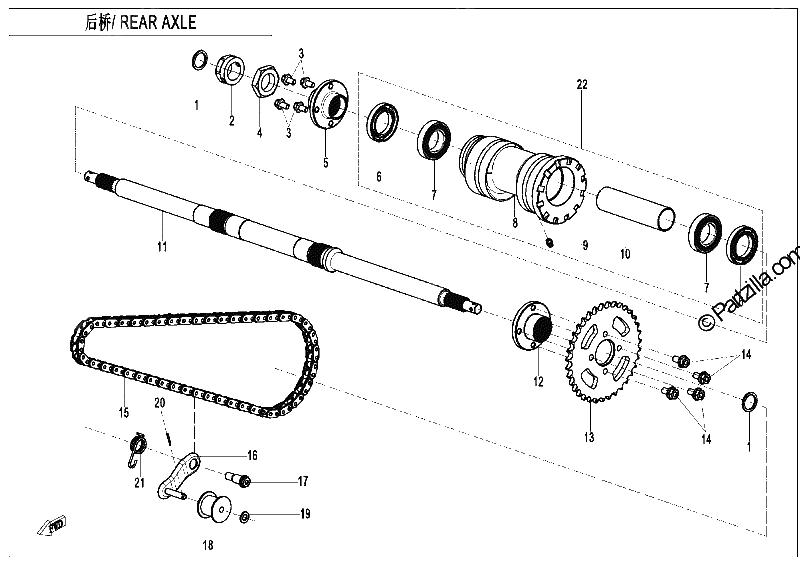

Diagrama de REAR AXLE 2

Repuestos

#1
9RHV-330108-1001
LIMIT WASHER
$3.44¢1 719
1
#1
9RHV-330108-1000
LIMIT WASHER
$3.44¢1 719
1
#2
9RHV-330104-1001
LOCK NUT 2
$8.04¢4 019
1
#3
30023-080012810
BOLT M8X12
$1.25¢627
1
#4
9RHV-330102-1000
LOCK NUT 1
$9.19¢4 594
1
#5
9RHV-330105-1000
BRAKE DISC BRACKET
$34.49¢17 244
1
#6
30500-035800N
OIL SEAL
$5.74¢2 869
1
#7
9RHV-330150-1000-21
DEEP GROOVE BALL BEARING 6006 2RS/P63
$20.69¢10 344
1
#8
9RHV-330106-1000
ECCENTRIC SHAFT
$160.99¢80 494
1
#9
9RHV-330150-1000-20
OIL NOZZLE
$4.59¢2 294
1
#10
9RHV-330101-1000
INNER SPACER
$45.99¢22 994
1
#11
9RHV-330103-1000
CORE SHAFT, REAR GEAR CASE
$241.49¢120 744
1
#12
9RHV-330107-1000
SPROCKET BRACKET
$34.49¢17 244
1
#13
9RHV-332001-1200
SPROCKET, 43T
No Disponible
1
#13
9RHV-332001-1000
SPROCKET, 38T
$31.04¢15 519
1
#14
30023-080016810
BOLT
$1.25¢627
1
#15
3120952
CHAIN
No Disponible
1
#15
3120948
CHAIN SFR 428H 90L
No Disponible
1
#15
3120938
DRIVE CHAIN
$54.04¢27 019
1
#16
9RHV-332110-1000
TENSIONER BRACKET
$18.39¢9 194
1
#17
A000-030006
BOLT, SIDE STAND
$3.44¢1 719
1
#18
9RHV-332100-1200
TENSION WHEEL ASSEMBLY
$11.49¢5 744
1
#19
30306-080112
WASHER
$1.25¢627
1
#20
30903-0201610
COTTER PIN. 2.0X16
$2.29¢1 144
1
#21
9RHV-332102-1000
TENSIONER SPRING
$5.74¢2 869
1
#22
9RHV-330150-1000
ECCENTRIC SLEEVE
$206.99¢103 494
1
