CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

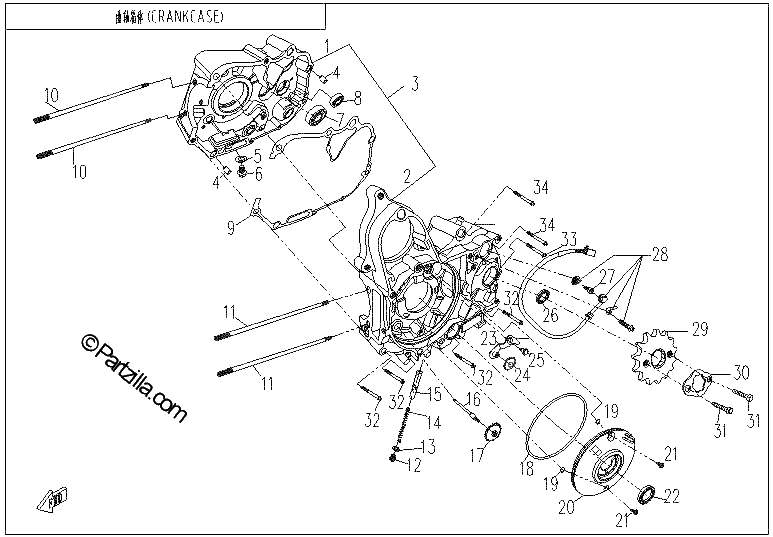

Diagrama de CRANKCASE

Repuestos

#1
L-110080477-0001
RIGHT HAND CRANKCASE
$183.99¢91 994
1
#2
L-110030662-0001
LEFT HAND CRANKCASE
$229.99¢114 994
1
#3
L-500270580-0002
CRANKCASE ASSEMBLY
$287.49¢143 744
1
#4
L-380600001-0001
DOWEL PIN
$2.29¢1 144
1
#5
L-380450018-0003
FLAT WASHER M12X20X2
$1.25¢627
1
#6
L-110260003-0006
SEAL SCREW PLUG
$3.67¢1 834
1
#7
L-380630002-0001
BEARING 6203
$12.64¢6 319
1
#8
L-380630033-0001
BEARING 6201/Z2
$9.19¢4 594
1
#9
L-110100055-0001
GASKET, CRANKCASE
$18.39¢9 194
1
#10
L-110250011-0001
STUD B
$3.44¢1 719
1
#11
L-110240014-0001
STUD A
$4.59¢2 294
1
#12
L-110260004-0004
SEAL SCREW PLUG
$4.59¢2 294
1
#13
L-380450054-0001
FLAT WASHER M14X20X2
$1.25¢627
1
#14
L-381150030-0001
PRESS SPRING
$3.44¢1 719
1
#15
L-141080001-0001
TENSION ROD, CHAIN
$8.04¢4 019
1
#16
L-150130001-0001
SPROCKET SHAFT, OIL PUMP
$6.89¢3 444
1
#17
L-150150001-0001
OIL PUMP DRIVE WHEEL
$11.49¢5 744
1
#18
L-380840055-0001
O RING
$3.44¢1 719
1
#19
L-380840682-0001
O RING
$2.29¢1 144
1
#20
L-110310006-0001
COVER
$27.59¢13 794
1
#21
L-380220010-0001
BOLT M6X16
$1.25¢627
1
#22
L-380650054-0001
OIL SEAL
$5.74¢2 869
1
#23
L-141160001-0001
TENSION ARM, CHAIN
$6.89¢3 444
1
#24
L-141210001-0001
TENSION WHEEL, CHAIN
$3.44¢1 719
1
#25
L-141200001-0001
CORE SHAFT, TENSION ARM
$3.44¢1 719
1
#26
L-380650061-0001
OIL SEAL
$4.59¢2 294
1
#27
L-380190005-0002
INNER HEX BOLT M6X16
$1.25¢627
1
#28
L-270650024-0025
GEAR DISPLAY SWITCH ASSEMBLY
$12.64¢6 319
1
#29
L-191600016-0001
DRIVE SPROCKET, COUNTERSHAFT
$13.79¢6 894
1
#30
L-191610002-0001
COUNTERSHAFT DRIVE SPROCKET FIXING PLATE
$2.29¢1 144
1
#31
L-380070004-0001
HEX BOLT M6X8
$1.25¢627
1
#32
L-380140057-0005
HEX FLANGE BOLT M6X65
$2.29¢1 144
1
#33
L-380140020-0003
HEX FLANGE BOLT M6X50
$2.29¢1 144
1
#34
L-380140032-0005
HEX FLANGE BOLT M6X60
$2.29¢1 144
1
