STEERING SYSTERM 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

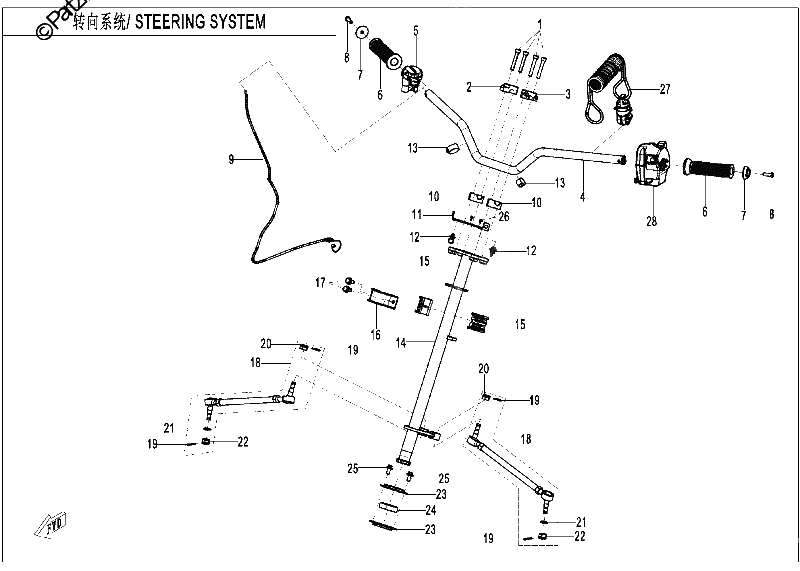

Diagrama de STEERING SYSTERM 2

Repuestos

#1
30102-080050810
INNER HEX SCREW M8X50
$1.25¢627
1
#2
9RHV-100003-1001
HANDLEBAR BLOCK 3
$8.04¢4 019
1
#3
9RHV-100002-1001
HANDLEBAR BLOCK 2
$8.04¢4 019
1
#4
9RHV-101100-1000
HANDLEBAR
$62.09¢31 044
1
#6
9DQV-100005-3000
HAND GRIP, Left Hand
$13.79¢6 894
1
#7
9DQV-100003-3000
END CAP, HANDLEBAR
$8.04¢4 019
1
#8
30121-080020870
SCREW M8X20
No Disponible
1
#9
9RHV-105000-3000
THROTTLE CABLE
$22.99¢11 494
1
#10
9RHV-100001-1001
HANDLEBAR BLOCK 1
$8.04¢4 019
1
#11
9RHV-030051-1000
BRACKET, DASHBOARD GUARD
$8.04¢4 019
1
#12
801F-100101
TIE BAND
$1.25¢627
1
#13
6KJ0-100002
TIE BAND, CLUTCH
$2.29¢1 144
1
#14
9RHV-102100-1002
STEERING STEM ASSEMBLY
No Disponible
1
#14
9RHV-102100-1000
STEERING SHAFT ASSEMBLY
$80.49¢40 244
1
#15
5BYA-060003
SEAT, SWAY BAR
$10.34¢5 169
1
#16
9RHV-100510-1000
CAP, STEERING STEM
$5.74¢2 869
1
#17
30006-080016810
BOLT M8X16
$1.25¢627
1
#18
9RHV-100530-1001
STEERING ROD
$57.49¢28 744
1
#19
9RHV-100530-1001-23
COTTER PIN
$1.25¢627
1
#20
9RHV-100530-1000-21
SLOTTED NUT THICK
$1.25¢627
1
#21
9RHV-100530-1000-22
GASKET
$1.25¢627
1
#22
9RHV-100530-1000-20
SLOTTED NUT THIN
$1.25¢627
1
#23
7020-100301-10000
SEAT, STEERING SHAFT
$6.89¢3 444
1
#24
7020-100600
BEARING, OUTER SPHERICAL 205
$26.44¢13 219
1
#25
7020-100001
BOLT M8X22
$2.29¢1 144
1
#26
30006-050012810
BOLT M5X12
$5.74¢2 869
1
#27
9RHV-169010-1001
SAFETY ROPE ASSEMBLY
$34.49¢17 244
1
#28
9RHV-166000-1200
LEFT HAND HANDLEBAR SWITCH ASSEMBLY
$34.49¢17 244
1
#28
9RHV-166000-3001
LEFT HAND HANDLEBAR SWITCH ASSEMBLY
$39.09¢19 544
1
