BRAKE SYSTEM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

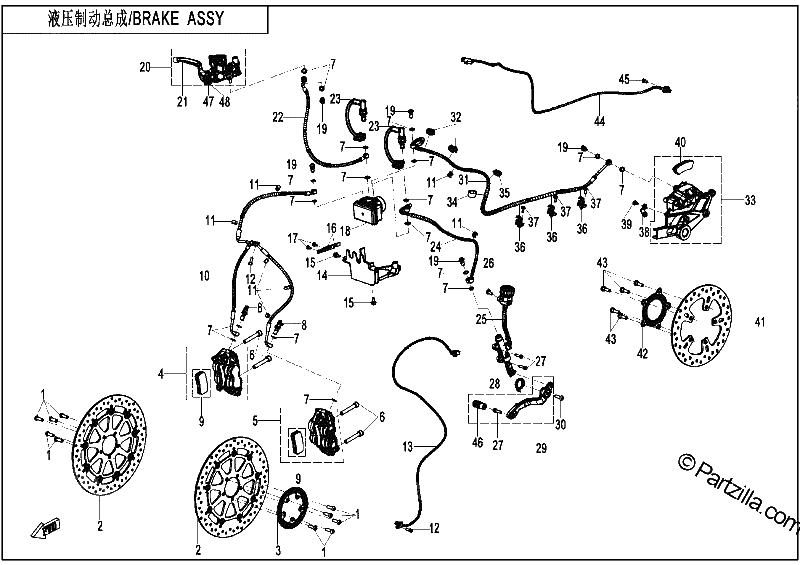

Diagrama de BRAKE SYSTEM

Repuestos

#1
C90709062000
FIXED BOLT, BRAKE DISC
No Disponible
1
#2
6L30-080010
FRONT BRAKE DISC ASSEMBLY
$206.99¢103 494
1
#3
6L30-080003
GEAR RING, FRONT WHEEL
$14.94¢7 469
1
#4
6WWV-081200-5001
FRONT RIGHT HAND BRAKE CALIPER (BLACK)
$689.99¢344 994
1
#5
6GUV-081100-6002
FRONT LEFT HAND BRAKE CALIPER ASSEMBLY (BLACK)
$689.99¢344 994
1
#6
30102-102060810
SCREW M10X60X1.25
$2.29¢1 144
1
#7
A000-080102-2000
WASHER
$2.29¢1 144
1
#8
6GU-081000-6000-22
BANJO BOLT 1
$13.79¢6 894
1
#9
6GUV-0811A0-6000
FRONT BRAKE PAD ASSEMBLY
$110.39¢55 194
1
#10
6KWV-081020-1000
FRONT BRAKE FLUID INLET HOSE
$195.49¢97 744
1
#11
6KJ0-080003-00001
CLIP, BRAKE HOSE
$2.29¢1 144
1
#12
30102-060016810
SCREW M6X16
$1.25¢627
1
#13
FA8V-080004-1200-M1
SPEED SENSOR
$80.49¢40 244
1
#14
6WWV-080009-5000
ABS NYLON BRACKET
$18.39¢9 194
1
#15
8010-000004
BOLT M6X14
$1.25¢627
1
#16
0180-014010
WIRE CLAMP
No Disponible
1
#17
30118-480130010
SELF TAPPING SCREW ST4.8X13
$1.60¢799
1
#18
6KWV-081500-1000-M1
MSC CONTROLLER
$1034.99¢517 494
1
#19
6GU-081000-6000-23
BANJO BOLT2
$16.09¢8 044
1
#20
6KWV-080110-1000-M1
FRONT BRAKE MASTER CYLINDER ASSEMBLY
No Disponible
1
#21
6KWV-080110-1000-35
LEVER
$80.49¢40 244
1
#22
6KWV-081010-1001
FRONT BRAKE FLUID OUTLET PIPE
$80.49¢40 244
1
#23
6GU-080010-6003
HYDRAULIC INDUCTION SWITCH
No Disponible
1
#24
6KWV-081050-1000
REAR BRAKE FLUID OUTLET HOSE
$91.99¢45 994
1
#25
6KWV-081300-1001-M1
REAR BRAKE MASTER CYLINDER ASSEMBLY
$298.99¢149 494
1
#26
6WWV-046802-5000
INNER HEX SCREW M6X16
$1.25¢627
1
#27
30102-060022810
SCREW
$1.25¢627
1
#28
6AQV-080400-1000
SPRING
$6.89¢3 444
1
#29
6KWV-081700-1000
REAR BRAKE PEDAL ASSEMBLY (SILVER)
$68.99¢34 494
1
#29
6KWV-081400-1000
REAR BRAKE PEDAL ASSEMBLY (BLACK)
$68.99¢34 494
1
#30
30121-080025160
SCREW M8X25
$2.29¢1 144
1
#31
6KWV-081040-1000
REAR BRAKE FLUID INLET HOSE
$126.49¢63 244
1
#32
6L30-080006
WIRE CLIP 2, BRAKE FLUID HOSE
$3.44¢1 719
1
#33
6KWV-081600-1000
REAR CALIPER ASSEMBLY
$632.49¢316 244
1
#34
6KJ0-100002
TIE BAND, CLUTCH
$2.29¢1 144
1
#35
801F-100101
TIE BAND
$1.25¢627
1
#36
6GU-080009-6000
WIRE CLIP, BRAKE FLUID HOSE
$3.44¢1 719
1
#37
6WWV-047102-5000
INNER HEX SCREW M5X14
$1.25¢627
1
#38
6GU-080008-6000
WIRE CLIP
$3.44¢1 719
1
#39
6KM-040082-8000
SCREW KIT M5
$2.29¢1 144
1
#40
6WWV-0816A0-5000
REAR BRAKE PAD ASSEMBLY
$110.39¢55 194
1
#41
6GU-090001-6000-M1
REAR BRAKE DISC
$80.49¢40 244
1
#42
6GU-090002-6001
REAR GEAR RING
$13.79¢6 894
1
#43
A000-080001
SCREW
$1.25¢627
1
#44
6L30-080020
SPEED SENSOR, FRONT WHEEL
$80.49¢40 244
1
#45
30102-060012810
SCREW M6X12
$1.25¢627
1
#46
6KWV-081402-1000
SUPPORTING STEM (BLACK)
$11.49¢5 744
1
#46
6AQV-080301-1000
SUPPORTER (SILVER)
$16.09¢8 044
1
#47
6WWV-080110-5000-38
SWITCH
$57.49¢28 744
1
#48
A000-080138-2000
SCREW M2.5X10
$1.25¢627
1
