REAR FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

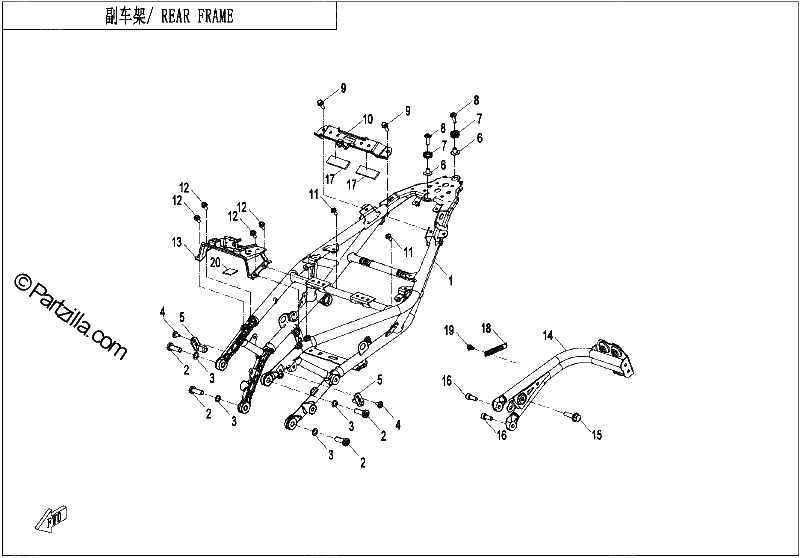

Diagrama de REAR FRAME

Repuestos

#2
6WWV-030017-5000
INNER HEX SCREW M10X30
$2.49¢1 244
1
#3
6WWV-030023-5000
NORDLOCK WASHER M10
$7.49¢3 744
1
#4
6WWV-046702-5000
INNER HEX SCREW M6X12
$1.36¢681
1
#5
6WWV-030070-5000
AIR FILTER MOUNTING ASSEMBLY
$6.24¢3 119
1
#6
9060-180029
RUBBER TUBE, RADIATOR
$2.49¢1 244
1
#7
6WWV-030019-5000
RUBBER BUSHING
$1.36¢681
1
#8
6WWV-046902-5000
INNER HEX SCREW M6X20
$1.36¢681
1
#9
30006-060016810
BOLT M6X16
$1.36¢681
1
#10
6KWV-030040-1000
FRONT SEAT REAR BRACKET
$14.99¢7 494
1
#11
6WWV-047102-5000
INNER HEX SCREW M5X14
$1.36¢681
1
#12
0010-021019-0010
BOLT M6X12
$2.49¢1 244
1
#13
6KWV-030030-1000
FRONT SEAT FRONT BRACKET
$24.99¢12 494
1
#14
6GU-030200-6000
BRACKET, REAR FENDER
$99.99¢49 994
1
#15
30006-080025810
BOLT M8X25
$1.36¢681
1
#16
30102-080020110
SCREW, M8X20
No Disponible
1
#17
FB6V-042042-1000
BATTERY SPONGE FILL
$1.36¢681
1
#18
0180-014010
WIRE CLAMP
No Disponible
1
#19
30006-060012870
BOLT M6X12
$0.75¢375
1
#20
6KWV-041115-1000
CUSHION MAT
$2.49¢1 244
1
