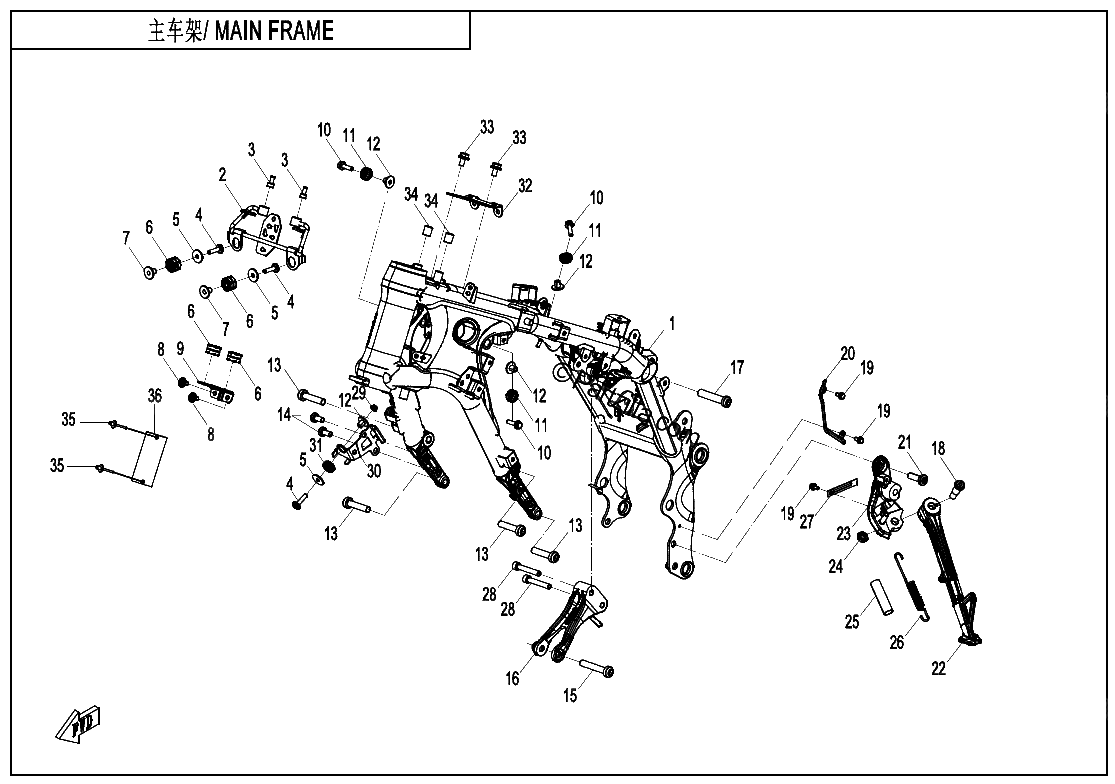

MAIN FRAME
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FRAME, MAUD SPIRIT BLACK
$1624.99¢812 494
#2
HEADLIGHT UPPER BRACKET
$44.99¢22 494
#3
SCREW M6X12
$1.36¢681
#4
INNER HEX SCREW M6X25
$1.36¢681
#5
RETAINER
$1.36¢681
#6
HEADLIGHT BRACKET SLEEVE
$2.49¢1 244
#7
T TYPE BUSHING ASSEMBLY
$3.74¢1 869
#8
INNER HEX SCREW M6X12
$1.36¢681
#9
HEADLIGHT LOWER BRACKET
$4.99¢2 494
#10
BOLT M6X22
$1.36¢681
#11
DAMPING RUBBER MAT
$3.74¢1 869
#12
RUBBER TUBE, RADIATOR
$2.49¢1 244
#13
INNER HEX SCREW M10X45
$2.49¢1 244
#14
INNER HEX SCREW M8X16
$2.49¢1 244
#15
BOLT M10X60
$4.99¢2 494
#16
ENGINE HANGING BRACKET
$87.49¢43 744
#17
BOLT M12X60
$4.99¢2 494
#18
BOLT, SIDE BRACKET
$6.24¢3 119
#19
BOLT M5X12
$6.24¢3 119
#20
BRACKET, SIDE STAND SWITCH CABLE
$7.49¢3 744
#21
INNER HEX SCREW M10X30
$2.49¢1 244
#23
SIDE STAND BRACKET
$174.99¢87 494
#24
NUT M10X1.25
$1.36¢681
#25
SPRING SLEEVE, SIDE BRACKET
$3.74¢1 869
#26
SPRING, SIDE BRACKET
$12.49¢6 244
#27
WIRE CLAMP
No Disponible
#28
NNER HEX SCREW M8X50
No Disponible
#29
NUT M6
$2.49¢1 244
#30
HORN BRACKET
$7.49¢3 744
#31
RUBBER BUSHING
$1.36¢681
#32
ROLL OVER SENSOR SEAT
$6.24¢3 119
#33
BOLT M6X12
$0.75¢375
#34
POWER LOCK BUSHING
$3.74¢1 869
#22-01
SIDE STAND (SILVER)
$112.49¢56 244
#22-02
SIDE STAND (BLACK)
$112.49¢56 244
