CYLINDER HEAD 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

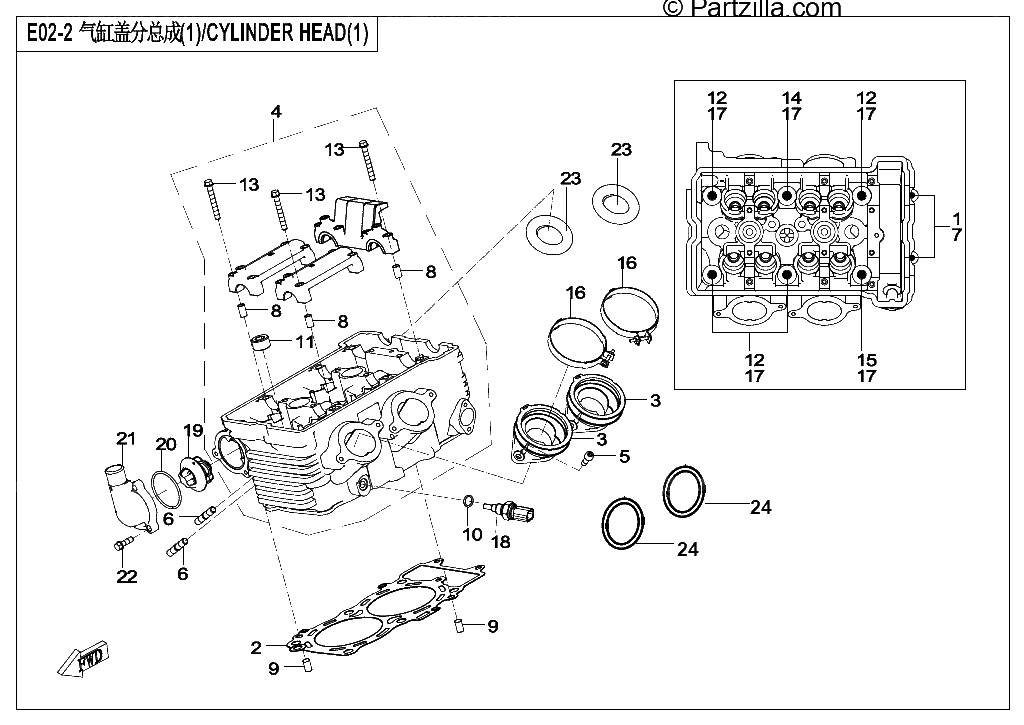

Diagrama de CYLINDER HEAD 1

Repuestos

#1
0HU0-022002
INNER HEX SCREW M6X30
$1.36¢681
1
#2
0700-022100-0001
GASKET KIT, CYLINDER HEAD
$79.99¢39 994
1
#3
0700-022320-20000
AIR INLET PIPE ASSEMBLY
$49.99¢24 994
1
#4
0HU0-022200-3BP01
CYLINDER HEAD
$999.99¢499 994
1
#5
30102-060016810
SCREW M6X16
$1.36¢681
1
#6
0180-022003-00002
STUD M8X42
$1.36¢681
1
#7
0060-030004-0030
WASHER 6X10.4X1.6
$1.36¢681
1
#8
0010-080008
DOWEL PIN 8X14
$1.36¢681
1
#9
0700-022018
SOLID PIN 8X14
$1.36¢681
1
#10
0700-022019
WASHER 12.5X20X1
$1.36¢681
1
#11
0700-022236
PLUG, PT1/2
$2.49¢1 244
1
#12
0700-022013-00001
BOLT M10X158 CYLINDER HEAD
$4.99¢2 494
1
#13
0700-022204
HEX FLANGE BOLT M6X45
$1.36¢681
1
#14
0700-022014-10001
BOLT M10X176 CYLINDER HEAD
$11.24¢5 619
1
#15
0700-022015-00002
BOLT M10x1.25x80
$4.99¢2 494
1
#16
0700-022330
CLAMP
$4.99¢2 494
1
#17
0700-022016
WASHER 10.5X19X2.3
$1.36¢681
1
#18
018B-022810
WATER TEMPERATURE SENSOR
$87.49¢43 744
1
#19
0700-022500-0001
THERMOSTAT
$37.49¢18 744
1
#20
0700-022011
O RING 44.5X2.5
$3.74¢1 869
1
#21
0HU0-022009-0BP00
THERMOSTAT CAP, MAUD SPIRIT BLACK
$18.74¢9 369
1
#22
0010-023010-0010
BOLT M6X20
$1.36¢681
1
#23
0700-022012
GASKET EXHAUST
$4.99¢2 494
1
#24
0MQ0-022301
O RING 47.5X2.5
$4.99¢2 494
1
