LUBRICATION SYSTEM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

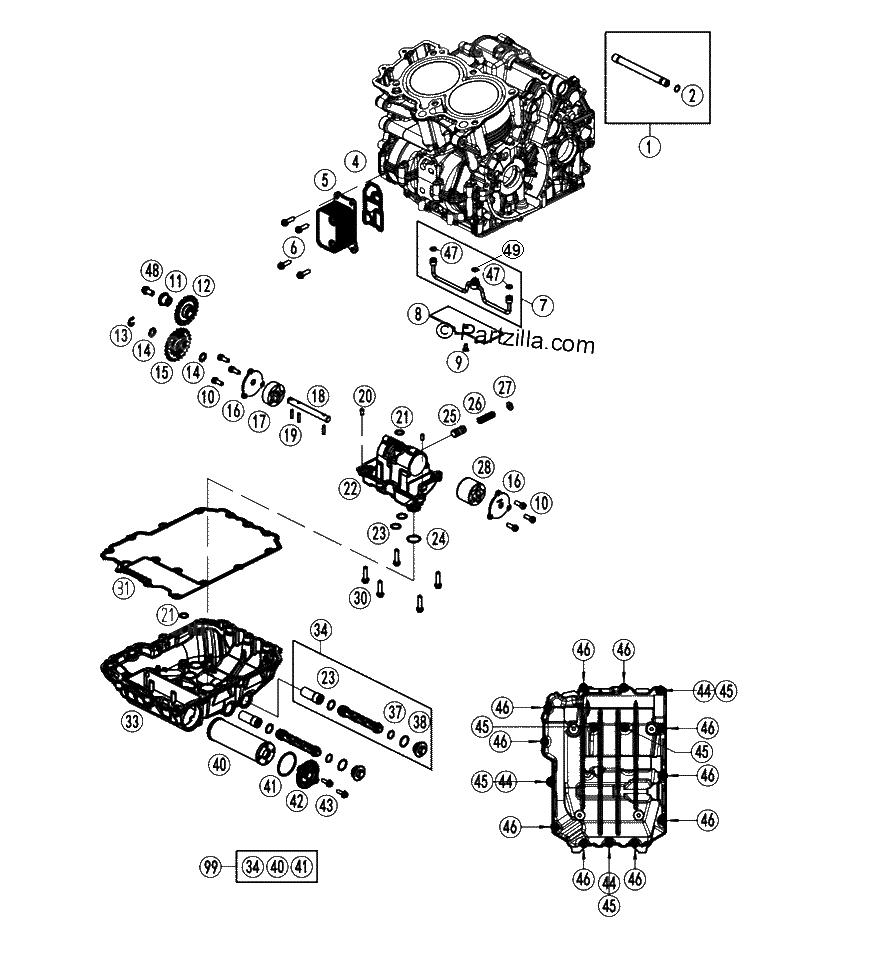

Diagrama de LUBRICATION SYSTEM

Repuestos

#1
C90030065000
GEARBOX INJECTION PIPE CPL
$45.99¢22 994
1
#2
C0770010010
O RING D10X1
$1.25¢627
1
#4
C90038051000
OIL COOLER GASKET
$22.99¢11 494
1
#5
C90038050000
OIL / WATER HEAT EXCHANGER CPL
$126.49¢63 244
1
#6
C0025060206S
SCREW M6X20
$2.29¢1 144
1
#8
C90030086010
PRESSURE PLATE
$12.64¢6 319
1
#9
C0019050121S
SCREW M5X12
$1.25¢627
1
#10
C014580060126S
CYL SCREW M6X12
$3.44¢1 719
1
#11
C90038003000
BEARING BOLT
$10.34¢5 169
1
#12
C90038001022
OIL PUMP IDLER GEAR 22Z
$49.44¢24 719
1
#13
C0799080000
LOCK WASHER DIN 6799 RS 8
$1.25¢627
1
#14
C90038007010
THRUST WASHER 10/16/0,5
$3.44¢1 719
1
#15
C90038001224
OIL PUMP GEAR 24Z
$20.69¢10 344
1
#16
C90038008050
OIL PUMP COVER
$20.69¢10 344
1
#17
C90038009014
EATON PUMP SET CPL. 14MM
$34.49¢17 244
1
#18
C90038002000
OIL PUMP SHAFT
$34.49¢17 244
1
#19
C0402041580
NEEDLE ROLLER 4X15.8
$2.29¢1 144
1
#20
C0402050980
NEEDLE ROLLER 5X9.8
$1.25¢627
1
#21
C0770120020
O RING 12X2
$1.25¢627
1
#22
C90038012000
OIL PUMP HOUSING
$436.99¢218 494
1
#23
C0770140200
O RING 14X2 NBR 70 SHORE
$1.25¢627
1
#24
C0770020020
O RING 20X2 NBR 70
$1.25¢627
1
#25
C90038128000
CONTROL PISTON
$13.79¢6 894
1
#26
C90038026000
OIL COMPRESSION SPRING
$34.49¢17 244
1
#27
C90037073000
SHIM
$11.49¢5 744
1
#28
C90038010000
EATON PUMP SET 30 MM
$333.49¢166 744
1
#31
C90030086100
OIL+SUMP+GASKET
$34.49¢17 244
1
#37
K-0770125015
O RING 12.5X1.5
$16.08¢8 038
1
#40
C90038015200
OIL FILTER (WITH BYPASS)
$14.94¢7 469
1
#41
C07700390261
O RING 39.34X2.62
$2.29¢1 144
1
#42
C90038041200
OILFILTER COVER
$34.49¢17 244
1
#43
C0025050166
SCREW M5X16
No Disponible
1
#44
C90030024000
FITTING SLEEVE 6X8X11
$2.29¢1 144
1
#47
C0770060025
O RING 6X2.5
$1.25¢627
1
#48
C0025080166S
CYL SCREW M8X16
$3.44¢1 719
1
#49
C0770070025
O RING 7X2.5
$2.29¢1 144
1
#7-1
C90038035000
OIL HOSE CPL
$39.09¢19 544
1
#7-2
C63538035000
OIL PIPE
$25.29¢12 644
1
#99
C00050000068
OIL FILTER SERVICE KIT
$80.49¢40 244
1
#30-1
C0025060256
SCREW M6X25
$1.25¢627
1
#30-2
C0000250602500
SCREW M6X25 TX30
$2.29¢1 144
1
#33-1
C6353008500024
OIL PAN
$344.99¢172 494
1
#33-2
C63530085000FBP
OIL PAN, BLACK
$379.49¢189 744
1
#34-1
C61238021300
OIL SCREEN CPL
$29.89¢14 944
1
#34-2
C61238021300
OIL SCREEN CPL
$29.89¢14 944
1
#38-1
K-0770170200
O RING 17X2
$18.38¢9 189
1
#38-2
K-0770170200
O RING 17X2
$18.38¢9 189
1
#45-1
C0025060356
SCREW M6X35
$1.25¢627
1
#45-2
C0000250603500
SCREW M6X35 TX30
$2.29¢1 144
1
#46-1
C0025060306
SCREW M6X30
$1.25¢627
1
