FOOTREST REAR HANDLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

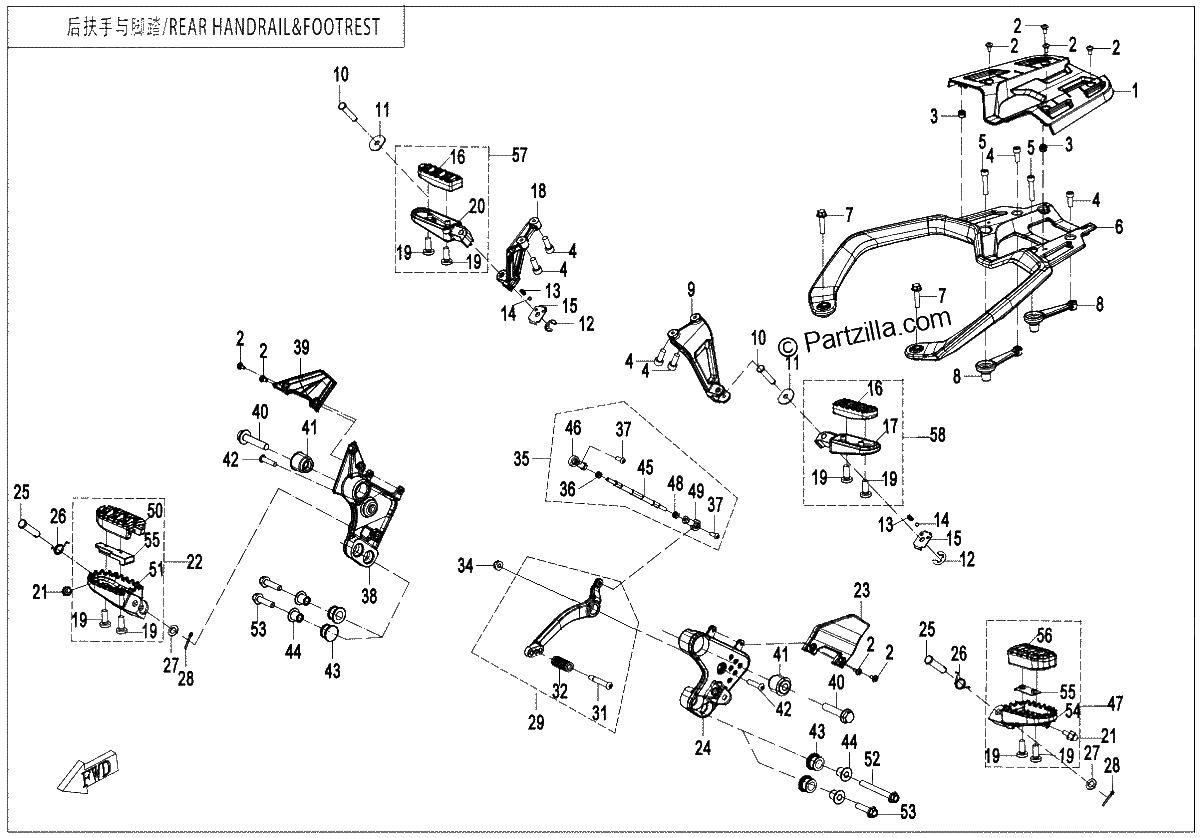

Diagrama de FOOTREST REAR HANDLE

Repuestos

#1
6WWV-140008-5000
DECO COVER, REAR ARMREST
$27.59¢13 794
1
#2
6WWV-046502-5000
STEPPED SCREW M5
No Disponible
1
#3
6WWV-045801-5000
RUBBER
$1.25¢627
1
#4
30102-080020810
SCREW, M8X20
$1.25¢627
1
#5
30102-080040810
SCREW, M8X40
$1.25¢627
1
#6
6WWV-140003-5000-0VQ00
REAR ARMREST
$229.99¢114 994
1
#7
30006-080035810
BOLT M8X35
$1.25¢627
1
#8
6WWV-140004-5000
BRACKET, REAR ARMREST
$29.89¢14 944
1
#9
6WWV-140001-5000
BRACKET, LEFT HAND REAR FOOTREST
$149.49¢74 744
1
#10
A000-140142
PIN SHAFT 8
$3.44¢1 719
1
#11
A000-140106
LOCATING GASKET 2
$2.29¢1 144
1
#12
30802-00603
CIRCLIP 6
$1.25¢627
1
#13
5190-037813
SPRING
$2.29¢1 144
1
#14
5190-037814
STEEL BALL
$1.14¢569
1
#15
A000-140104
LOCATING GASKET 1
$3.44¢1 719
1
#16
6GU-140080-6000
RUBBER, REAR FOOTREST BOARD
$10.34¢5 169
1
#17
6GU-140041-6000-0BP00
Left Hand REAR FOOTREST BOARD, MAUD SPIRIT BLACK
$32.19¢16 094
1
#18
6WWV-140002-5000
BRACKET, RIGHT HAND REAR FOOTREST
$172.49¢86 244
1
#19
30105-050014470
SCREW M5X14 (BLACK)
$1.25¢627
1
#20
6GU-140051-6000-0BP00
Right Hand REAR FOOTREST BOARD, MAUD SPIRIT BLACK
$29.89¢14 944
1
#21
6GU-140202-6000
LIMIT BOLT (BLACK)
$2.29¢1 144
1
#22
6GUV-140230-6003-0BP00
FRONT FOOTREST SEAT, Right Hand, MAUD SPIRIT BLACK
$57.49¢28 744
1
#23
6WWV-140102-5000
PANEL, LEFT HAND FRONT FOOTREST BRACKET
$5.74¢2 869
1
#24
6WWV-140100-5001
BRACKET, LEFT HAND FRONT FOOTREST BLACK
$149.49¢74 744
1
#25
6WWV-140141-5000
PIN SHAFT
$2.29¢1 144
1
#26
A000-140103-20000
SPRING
$2.29¢1 144
1
#27
30300-100112
WASHER M10
$1.25¢627
1
#28
30903-0322210
COTTER PIN, 3.2X22
$1.25¢627
1
#29
6WWV-140110-5000
PEDAL ASSEMBLY, GEARSHIFT ROD
$80.49¢40 244
1
#31
6NQ-140104-6002
BOLT, PEDAL
$8.04¢4 019
1
#32
6GUV-140101-6000
RUBBER SLEEVE, PEDAL
$13.79¢6 894
1
#34
30204-080810
NUT M8
$1.25¢627
1
#35
6WWV-140120-5000
CONNECTING PART, GEARSHIFT ROD
$45.99¢22 994
1
#36
30200-060810
NUT M6
$1.25¢627
1
#37
30121-060016700
SCREW M6X16
$1.25¢627
1
#38
6WWV-140200-5001
BRACKET, RIGHT HAND FRONT FOOTREST BLACK
$157.54¢78 769
1
#39
6WWV-140202-5000
PANEL, RIGHT HAND FRONT FOOTREST BRACKET
$4.59¢2 294
1
#40
6WWV-030018-5000
BOLT M12X60
$4.59¢2 294
1
#41
6WWV-140050-5000
RUBBER SLEEVE
$20.69¢10 344
1
#42
30121-080035860
SCREW, M8X35
$1.14¢569
1
#43
6WWV-140401-5000
DAMPER
$2.29¢1 144
1
#44
6WWV-140405-5000
BUSHING
$6.89¢3 444
1
#45
6WWV-140121-5000
CONNECTING ROD
$14.94¢7 469
1
#46
6GU-140140-6001
BEARING
$12.64¢6 319
1
#47
6GU-140220-6001
BRACKET, LEFT HAND FOOTREST
$50.59¢25 294
1
#48
30200-06087L
NUT M6
$1.25¢627
1
#49
6GU-140160-6001
BEARING
$12.64¢6 319
1
#50
6GU-140206-6000
RIGHT HAND FRONT FOOTREST RUBBER
$8.04¢4 019
1
#52
6WWV-140009-5000
BOLT M10X87
$4.59¢2 294
1
#53
30006-102035860
BOLT
$2.29¢1 144
1
#54
6GUV-140203-6002-0BP00
Left Hand FRONT FOOTREST SEAT
$52.89¢26 444
1
#55
6GU-140207-6000
BALANCING WEIGHT
$9.19¢4 594
1
#56
6GU-140205-6000
LEFT HAND FRONT FOOTREST RUBBER
$9.19¢4 594
1
#57
6GU-1400B0-6000-0BP00
Right Hand REAR FOOTREST BOARD, MAUD SPIRIT BLACK
$49.44¢24 719
1
#58
6GU-1400A0-6000-0BP00
RUBBER, Left Hand REAR FOOTREST BOARD, MAUD SPIRIT BLACK
$49.44¢24 719
1
